Page 25

9522B Iridium Satellite Modem and COM9522B Interface Modem

5.1.6 Step 6: CR1000 Configuration

Select your datalogger as shown in FIGURE 5-6. Be sure that the

Communications Enabled box is checked and that the PakBus Address is

correct for the datalogger being used. Set the

Delay Hangup to 200 ms.

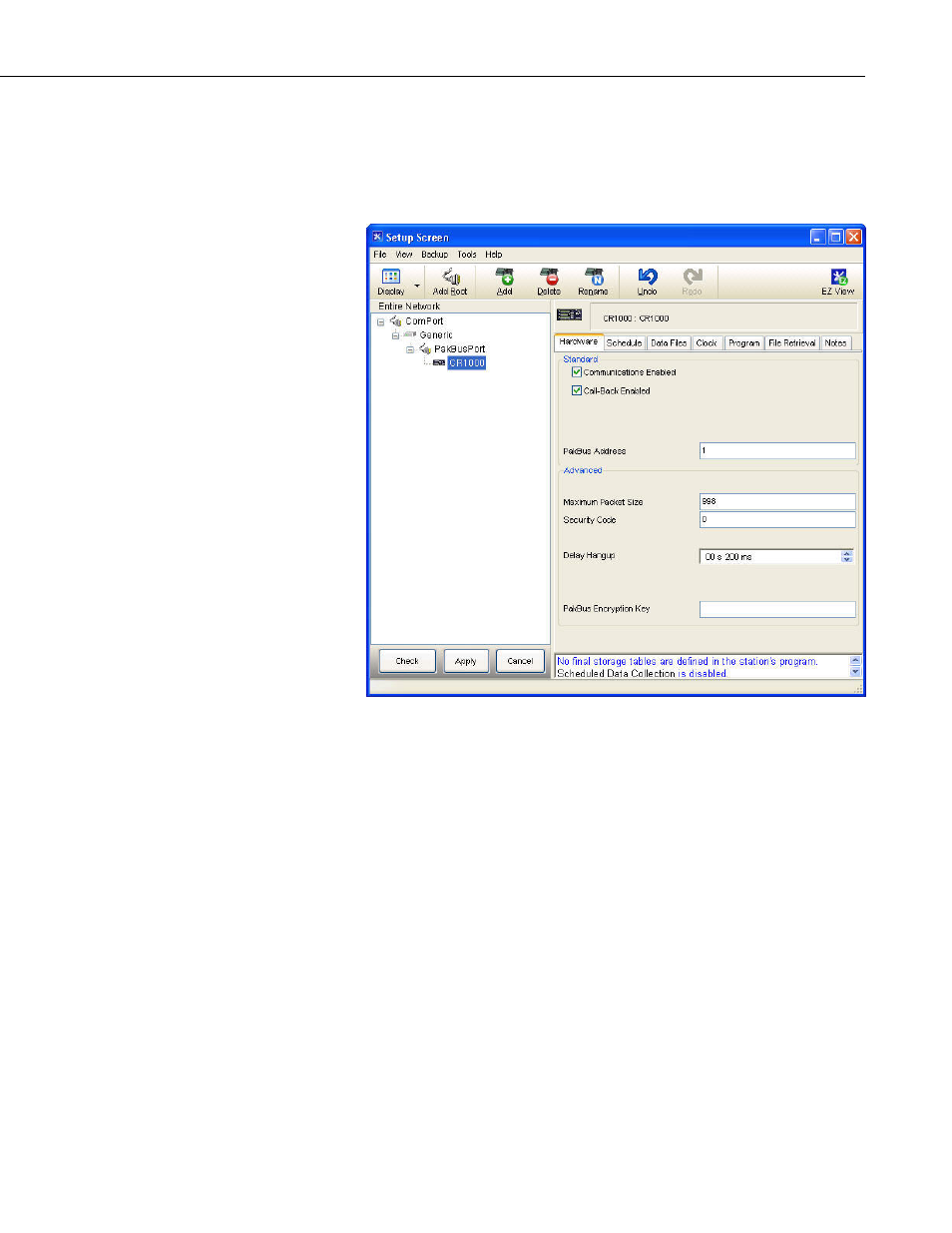

FIGURE 5-6. CR1000 Hardware Configuration

Select the

Schedule tab and configure the Collection Interval as required for

your application. Be sure that the

Scheduled Collection Enabled box is

checked. FIGURE 5-7 shows an example of a daily scheduled data collection

that is to start at 1:00pm. The number of retries and the retry interval are left in

their default state in the example. These values should be adjusted as required.

Once all configurations are complete, click the

Apply button in the lower left

hand corner. The station is now set up in LoggerNet.
