9522B Iridium Satellite Modem and COM9522B Interface Modem

5.1.2 Step 2: ComPort Configuration

With the setup tree entered, you will now need to complete the configuration of

each element. Start with selecting the

ComPort element at the root of the tree

(FIGURE 5-2). Be sure that the

ComPort Connection is correct for the

computer used as part of your base station, and make sure that the

Communications Enabled box is checked.

Set the

Extra Response Time and ComPort Communication Delay to 3

seconds. Set the Delay Hangup to 200 ms. This will prevent LoggerNet from

hanging up whenever there is a slight lag in transmission time, which is

common in satellite applications.

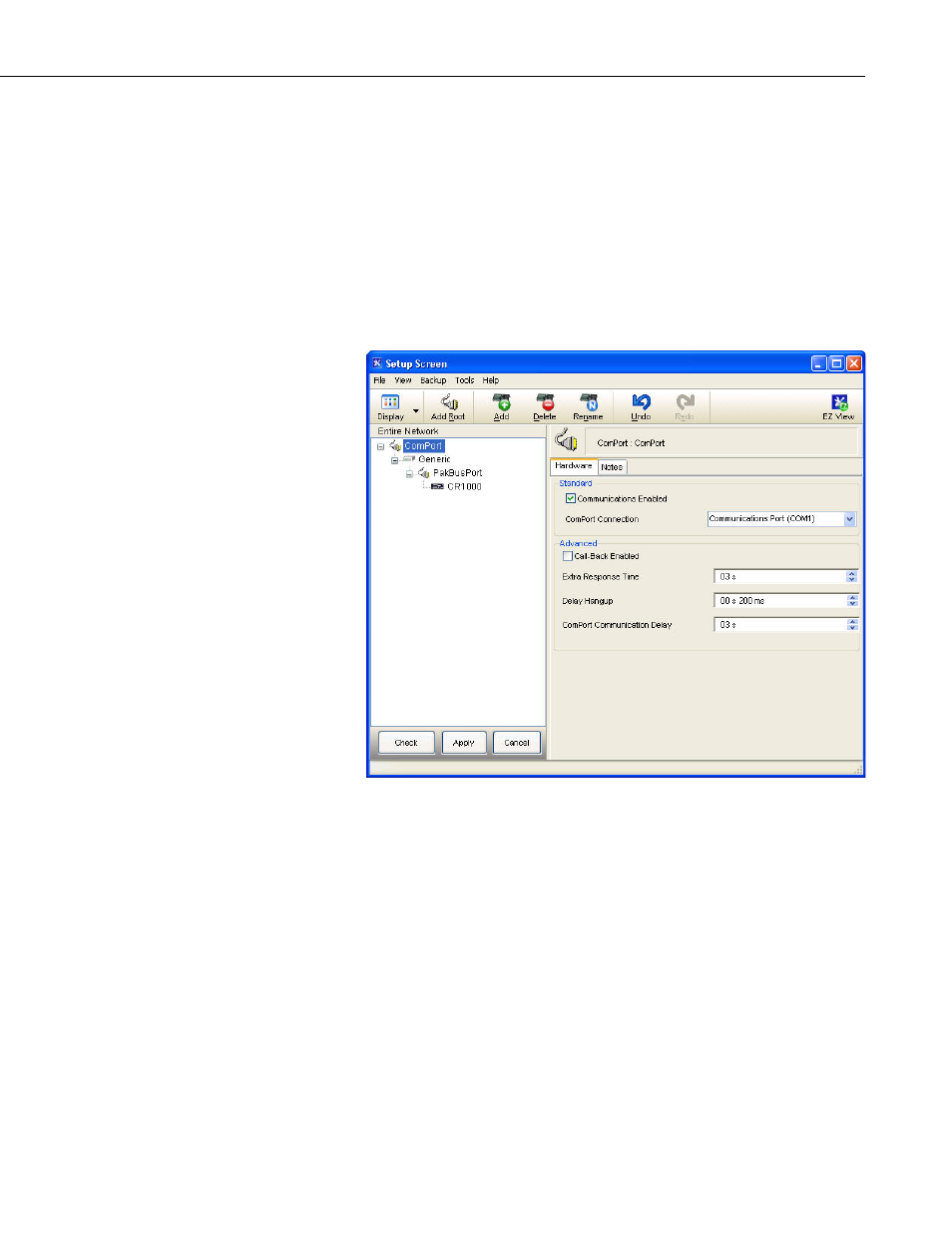

FIGURE 5-2. ComPort Configuration
