Appendix B. Hardware Installation
The hardware shown in this appendix consists only of hardware listed in
TABLE 1-1. Although it may be possible to use other hardware, it will not be
addressed in this appendix.
Do not connect power to either modem until installation
is complete, as damage to the equipment may occur.
B.1 SIM Card Installation
These installation steps apply to both the base and remote modems. Be sure
the correct card is installed in the proper modem. Start by removing the cover
on the top of the modem (FIGURE B-1). This will require the use of a 5/64
Allen wrench.
Open the card slot by pushing the card holder away from the end labeled
“Lock”, until it is able to flip up. Place the card in the slot in the proper
orientation as shown in FIGURE B-1. The card notch will need to line up with
the notch of the card slot. Close and lock the card slot into place (FIGURE B-2
and FIGURE B-3). Once complete, replace the housing cover.

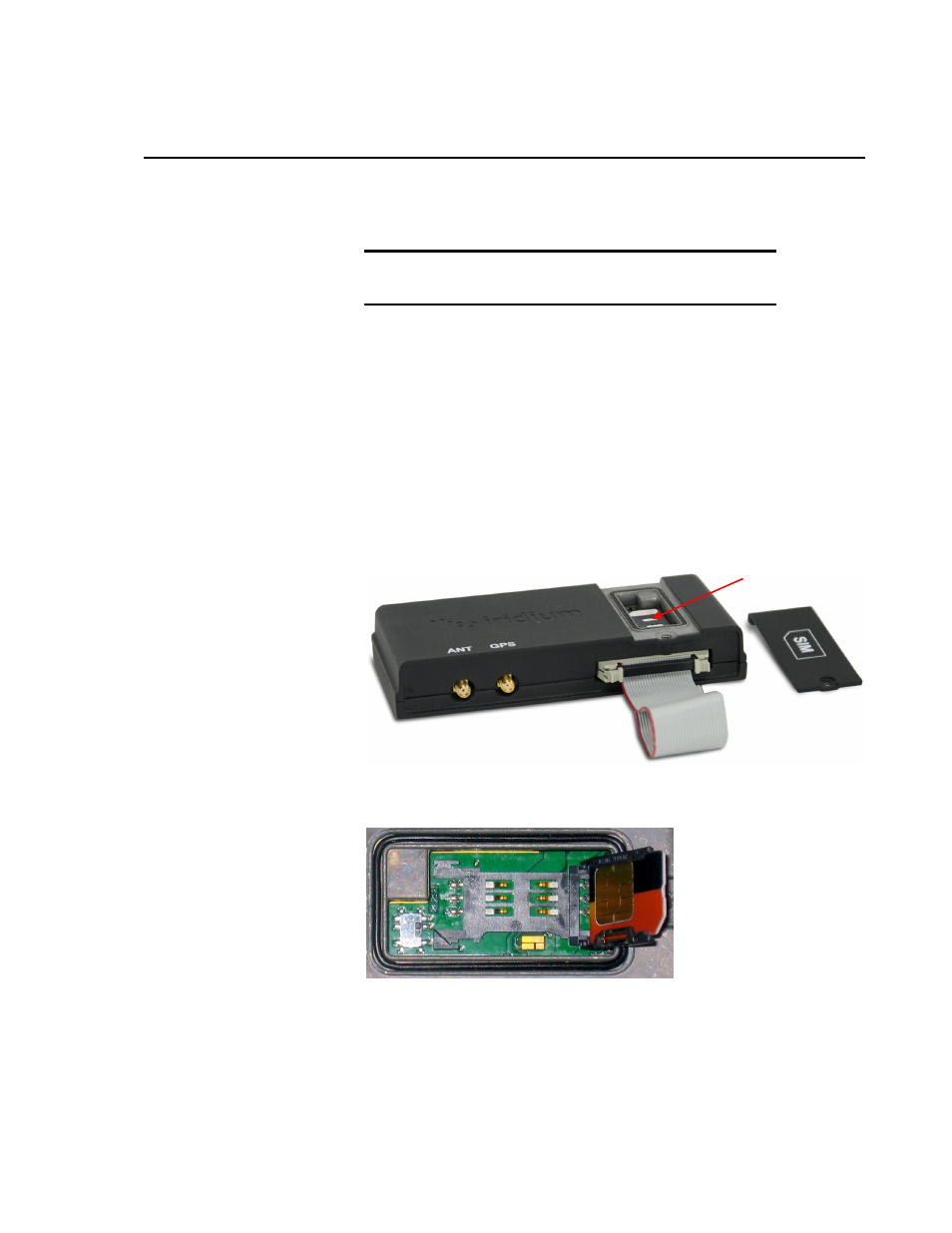

FIGURE B-1. SIM Card Housing
FIGURE B-2. SIM Card Slot
WARNING
SIM Card
Housing
B-1
