Chapter 3: Local Port Operation 35

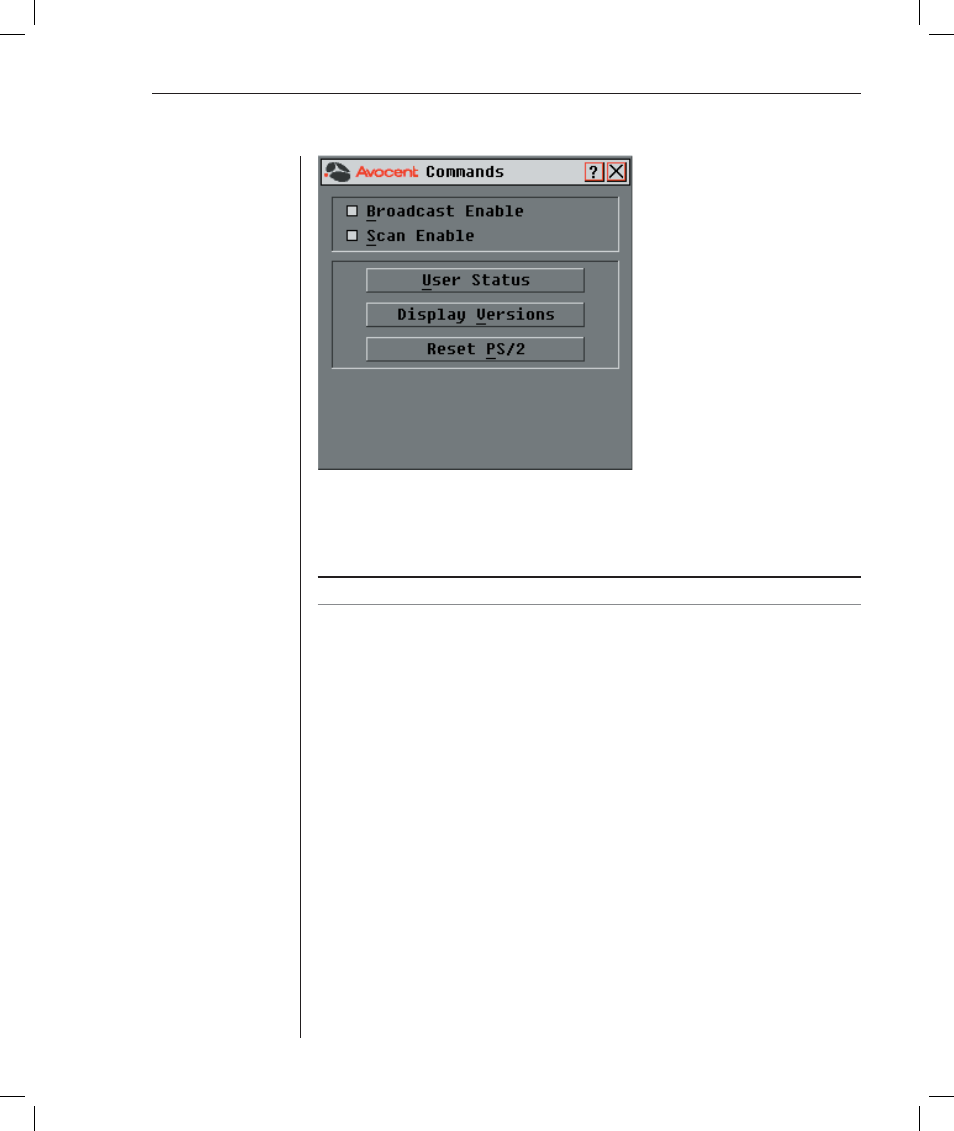

Figure 3.10: Commands Dialog Box
3. Select Scan Enable in the Commands dialog box.
4. Click X to close the Commands dialog box.
NOTE: Scanning will begin as soon as the scan button is checked.
To cancel scan mode:
1. Select a server if the OSCAR interface is open.
-or-
Move the mouse or press any key on the keyboard if the OSCAR interface
is not open. Scanning will stop at the currently selected server.
-or-
If the OSCAR interface is not open, press Print Screen. The Main dialog
box will appear.
2. Click Commands. The Commands dialog box appears.
3. Clear Scan Enable.
Setting Console Security
Use the Security dialog box to set security on your local port console. You can
establish a screen saver mode that engages after your console remains unused
for a specified Inactivity Time. Once engaged, your console will remain locked
until you press any key or move the mouse. You will then need to type in your
password to continue.
