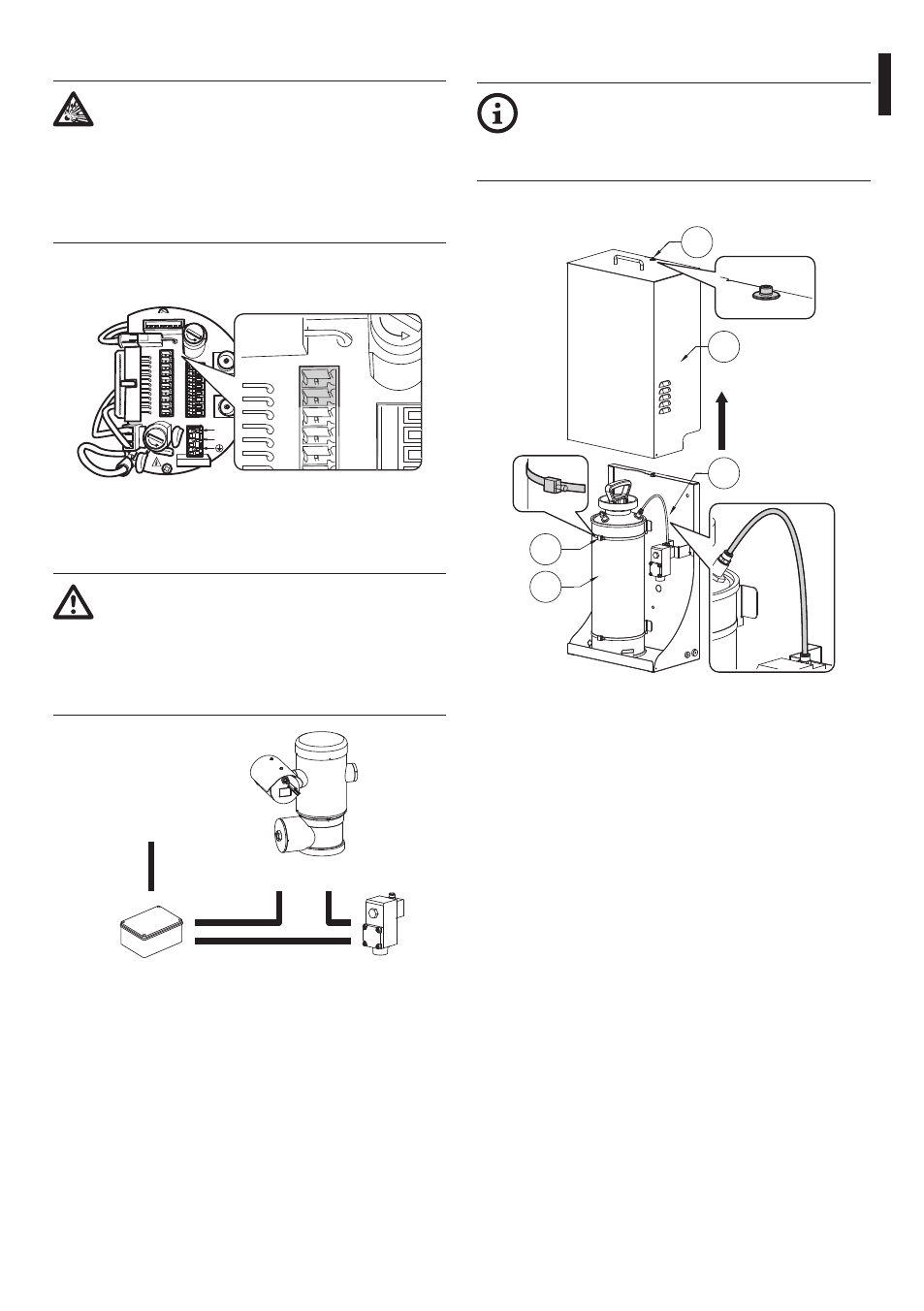

6.1.2.2 Connection to the pan & tilt
The electric connections between the
solenoid valve and P&T must be housed
in an explosion-proof junction box.
The explosion-proof junction box must
be suitable for the classification of the
explosive atmosphere in the installation
site, according to the regulations in force.
Use the RL2 (J3) internal relay to connect to the pan &
tilt, if necessary.
FUSE
FUSE
100nMBW3
L
N
VAR3
VAR1 AC
AL1
AL2
AL3
AL4
AL5
COM
RL1
RL1
RL2
RL2
GND
W
GND
B
A
B
A
IN J1
J9 J6
J2
J3 J8
J4
J7
FUS1
VAR2
VIDEO - 1
VIDEO - 2
RS485
ADDRESS & PROTOCOL
FUS2
COM
RL1
RL1
RL2
RL2
J2
J3
J8
FUS2
Fig. 11
Connect and power the solenoid valve with reference
to the connection diagram. (Fig. 12, page 7).
The RL2 relay in the pan & tilt can withstand
a voltage of up to 30Vac. Use only 24Vac
models of solenoid valve powered by safety
transformer Turn off one of the supply
poles of the solenoid valve via the RL2 relay
of the pan & tilt.
RL2 RL2
Safety transformer 24Vac
power supply
Solenoid valve Explosion-proof junction
box
Fig. 12
6.1.3 Installation of the pump
It is possible to install or service the pump
without removing the tank. To remove the
tank (01), release the metal clamps (02) and
disconnect the connecting pipe (03).
Undo the safety screw (04) and lift the guard (05).
05
03
04
02
01
Fig. 13
