Instruc
tions manual - English - EN
3
4 Identification
4.1 Product description and type
designation
The WASEX washer pump is built with a stainless
steel AISI 316L enclosure which guarantees excellent
corrosion resistance both in industrial and seaside
areas.
The system guarantees complete cleaning of glass on
the MAXIMUS devices.
The articulated nozzle of the pump can be adjusted
in order to associate to a preset, in the desired
position, the wiper and spray functions.
The pump is controlled by an explosion-proof
solenoid-valve which provides liquid passage and
by the MAXIMUS pan & tilt telemetry or by a manual
electric contact.
The tank has a 10 litre capacity and can be filled
with an integrated hand pump or by means of other
devices depending on the user's requirements.
The system is available in 24Vac/dc.

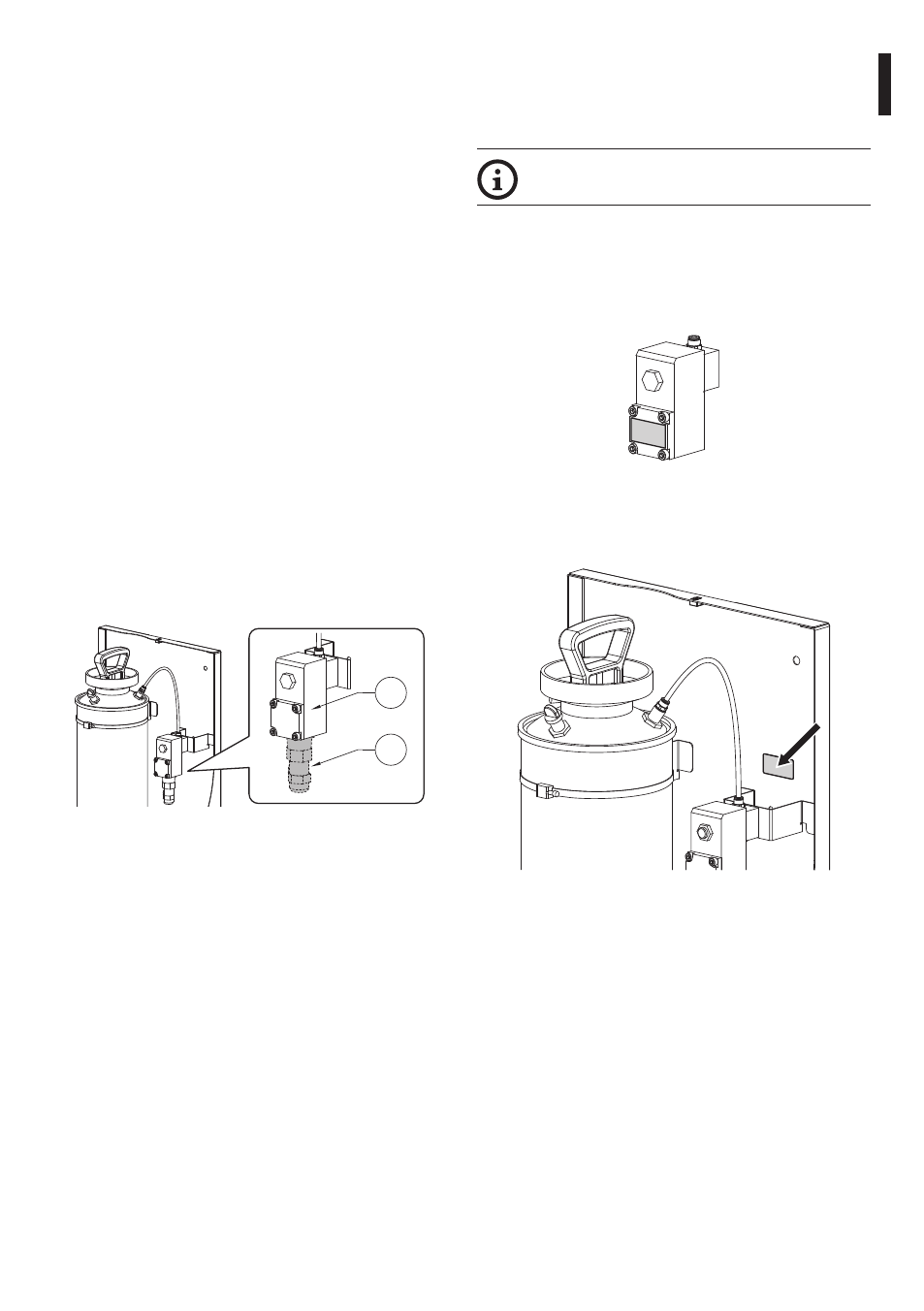

The solenoid valve (01) has a hole for a ½” NPT cable
gland (02).
02
01
Fig. 2
The cable glands must be selected according to what
is indicated by the EN/IEC 60079-14 Standard.
These cable glands guarantee an IP66 protection
level.
We recommend using VIDEOTEC cable
glands or equivalent (Tab. 2, page 11).
4.2 Product markings
The marking on the glass washer pump relates to the
marking on the solenoid valve. The marking plate is
fitted on the solenoid valve.
Fig. 3
The product serial number is indicated in the label
positioned as shown in the figure.
Fig. 4
