5.4.3 Assembly on supports
There are holes in the box for wall or floor mounting.

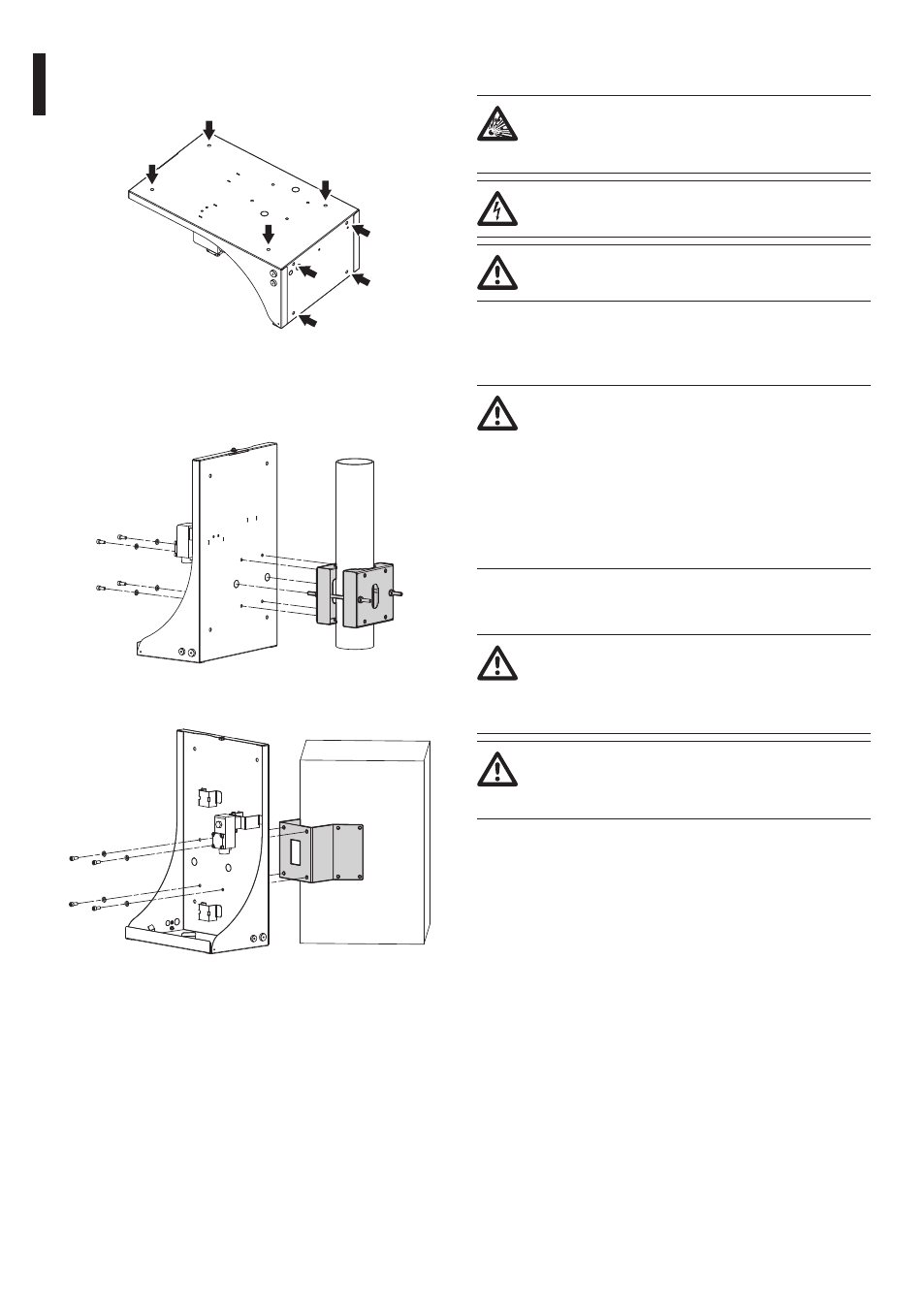

Fig. 8
The box can be also mounted on the pole mount
adapter or the corner adaptor .
Fig. 9 WASEX+NXCOL.
Fig. 10 WASEX+NXCW.
6 Assembling and installing
Never exceed performance specifications.
Make all connections in a non-explosive
atmosphere.
Before starting any operation, make sure
the power supply is disconnected.
The assembly and installation must be
performed only by skilled personnel.
6.1 Installation
6.1.1 Installing the pump tank
If using the pump at temperatures below
3°C (37.4°F) add some antifreeze liquid
to the water. The liquid used must have
an ignition temperature (IEC 60079-4) at
least 50K above the maximum surface
temperature of the equipment. The
liquid used must not cause ignition of the
atmosphere.
6.1.2 Connection of the power supply
line
When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Make sure that the power source and
connecting cables are suitable for the
power consumption of the system.
6.1.2.1 Connection of the solenoid valve
Connect the solenoid valve. For further information,
refer to the product use and installation manual.
