D-M-E CHILL VENT BY NGK

Specification No. ME-080065-999(C)

VPS9999

Page

2

of

2



















































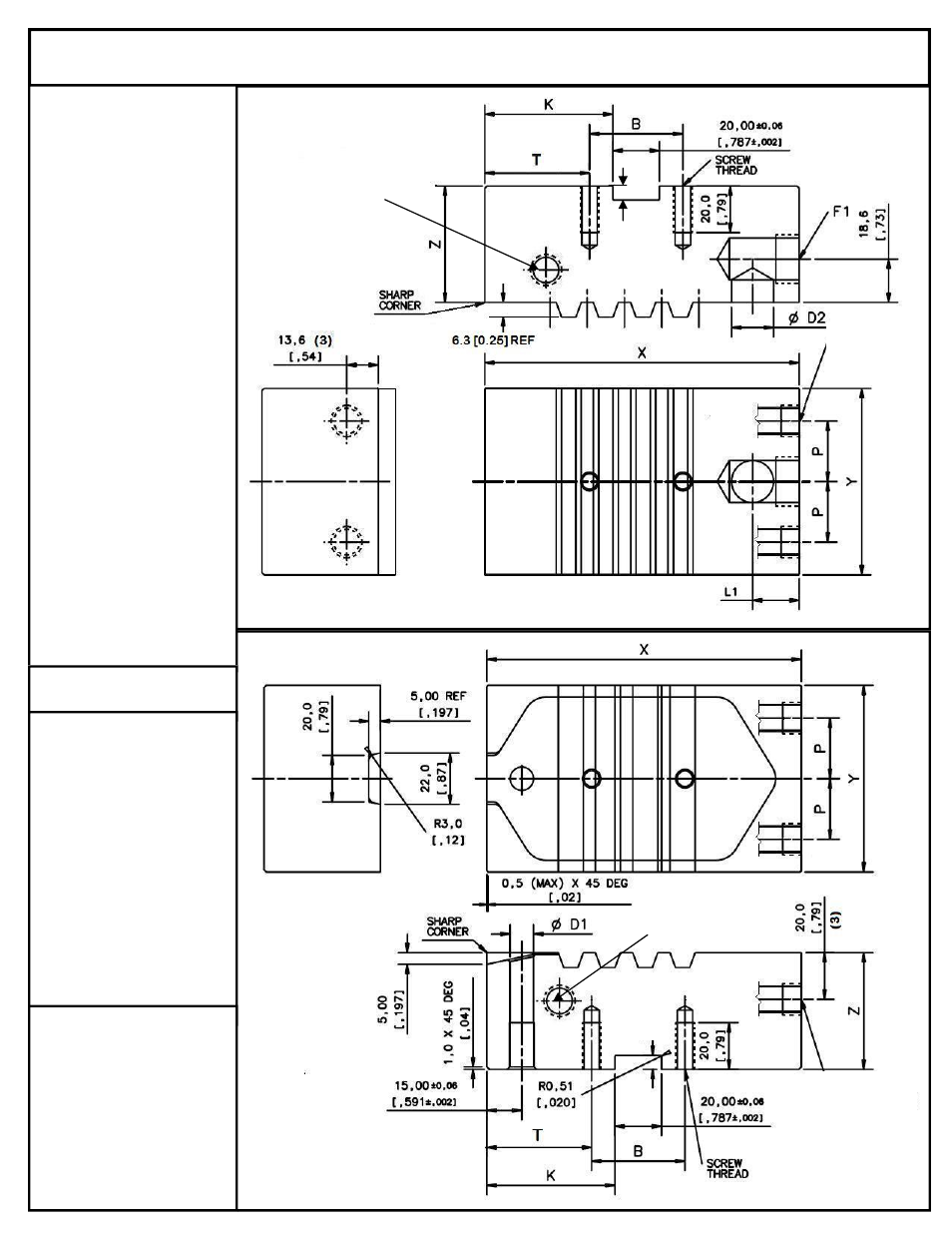

CHILL VENT INSERT — COMPONENT DETAILS


Installation Notes:

10mm DIN Ejector

Pin to be used with

this

product

Key slots provided

on product as shown.

Toolmaker is
responsible for
keying product.

Tap threads are

provided in product

for retaining screws.
Customer to supply
screws.

Customer to supply
NPT pipe fittings.
High-temperature pipe
thread sealant is
recommended to be
used with this product.

Once installed, Chill
Vent insert halves

must align properly to
achieve good seal-off
between mating

surfaces. Use a blue-
off compound to check
for proper fit. Adjust
shim pack accordingly
during installation until
desired mating seal-off
is achieved.

Dimensions shown are in
millimeters (inches).

NOTICE:

D-M-E shall not be liable
for misuse or failure to
follow the enclosed
instructions and
specifications. D-M-E
hereby disclaims all
implied warranties,
including merchantability
and fitness for a particular
purpose. In no event shall
D-M-E be responsible for
loss of use, revenue or
profit, or for incidental or
consequential damages.

D-M-E Company

29111 Stephenson Highway
Madison Heights
Michigan 48071 USA

USA

800-626-6653

CANADA 800-387-6600

For more information on our
products, please visit our
website at www.dme.net

BOTTOM HALF

TOP HALF

1/4-18 NPT
Thread Depth
= 11.0 (0.43)

1/4-18 NPT
Thread Depth
= 8.0 (.32)
(2)

1/4-18 NPT
Thread Depth
= 8.0 (.32)
(2)

1/4-18 NPT
Thread Depth
= 11.0 (0.43)

6.00
[.236]


6.00
[.236]
