Videoswitch VK-2 - Manual (Page 82)

VK-2 Universal Keyboard
VK-2 Universal Keyboard User Manual
79

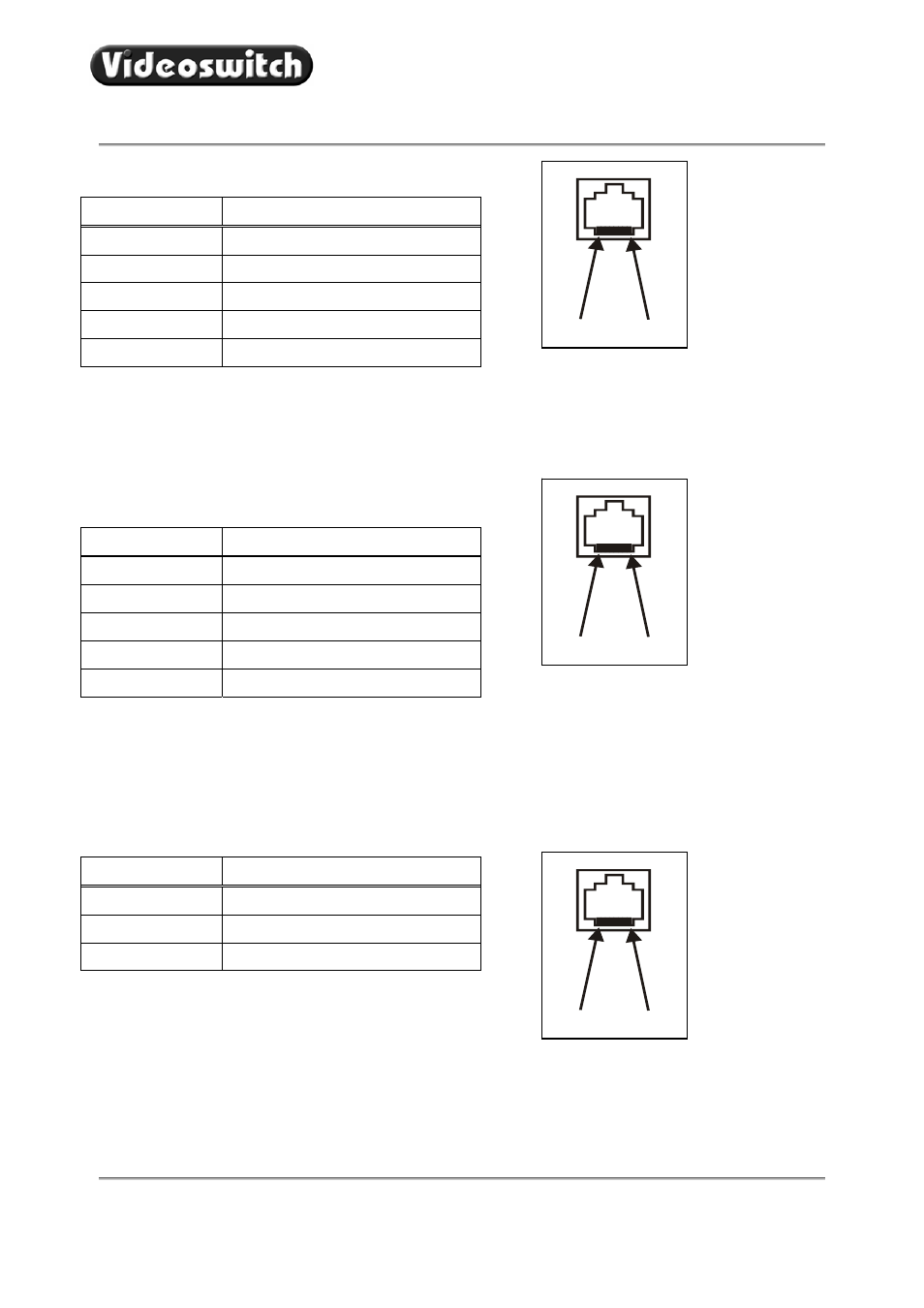

21.5 DOMES-2 Output (RJ45)
Pin Description
1 20mA Output
2
3 RS485 Data A (+) Output
5 Ground (Screen)
6 RS485 Data B (-) Output
• For RS485 use Pins 3 and 6
• For RS232 use Pins 2 and 5
• For 20mA use Pins 1 and 5
21.6 DOMES-1 Output (RJ45)
Pin Description
1 20mA Output (use with pin 5)
2 RS232 Output
3 RS485 Data A (+) Output
5 Ground (Screen)
6 RS485 Data B (-) Output
• For RS485 use Pins 3 and 6
• For RS232 use Pins 2 and 5
• For 20mA use Pins 1 and 5
21.7 Slave VK-2 Input (RJ45)
Pin Description
1 RS485 Data A (+) Input
2 RS485 Data B (-) Input
5 Ground (Screen)
PIN8 PIN1
PIN8 PIN1
PIN8 PIN1
