Vi-R4000 Series
Videoswitch Page
55
Mdr602a.doc

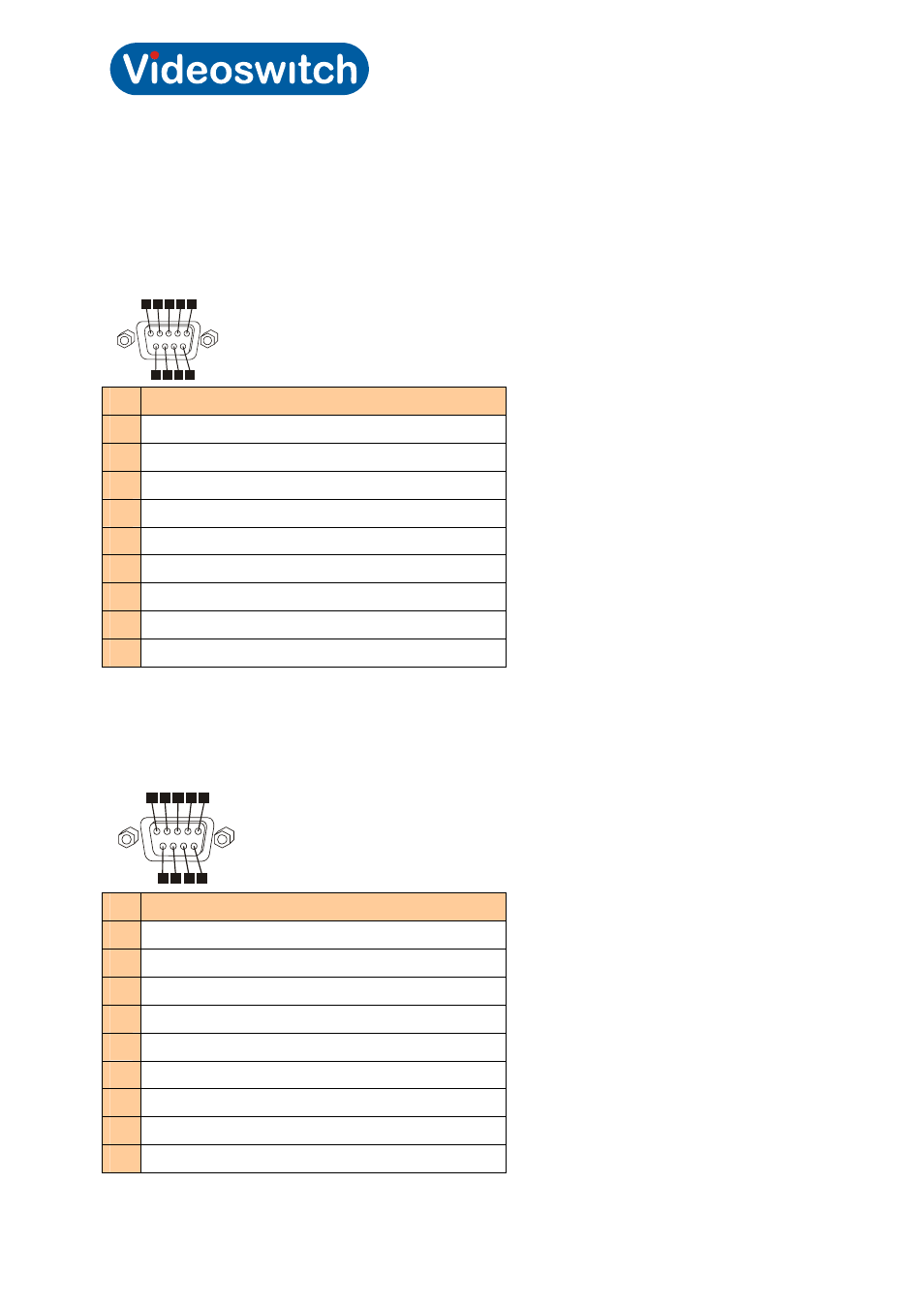

5.2 Connector Pin-outs
5.2.1 Domes
Connector Type:
9-way D-type Female
1
2
6
3
7
4
5
8
9
Pin
Function
1
Dome Output 1 RS485 TX+
2
Dome Output 1 RS485 TX-
3
Dome Output 2 RS485 TX+
4
Dome Output 2 RS485 TX-
5 GND
6
Dome Output 3 RS485 TX+
7
Dome Output 3 RS485 TX-
8
Dome Output 4 RS485 TX+
9
Dome Output 4 RS485 TX-
5.2.2 Control
Connector Type:
9-way D-type Female
1
2
6
3
7
4
5
8
9
Pin
Function
1 RS485
RX+
2 RS485
RX-
3 RS485
TX+
4 RS485
TX-
5 GND
6
N/C
7
N/C
8
N/C
9
N/C
