Red Lion BMK11 User Manual
Description, Dimensions in inches (mm), Ordering information

1
DESCRIPTION
The model BMK11 can be used to mount a CUB5 meter or a Micro Line
Power Supply (MLPS) in various applications. Need a DIN rail mounted
display? Simply add the DIN rail clips to the back of the BMK11, install your
meter and snap it on the rail. If your application requires an inexpensive power
supply, simply mount an MLPS to the BMK11 and snap it to the rail. For base
mount application, just use the appropriate mounting screws to securely fasten
the BMK11. Nothing could be easier.
MODEL BMK11 – CUB5 OR MLPS DIN RAIL BASE MOUNT ADAPTER KIT
BMK11 WITH MLPS
BMK11 WITH CUB5

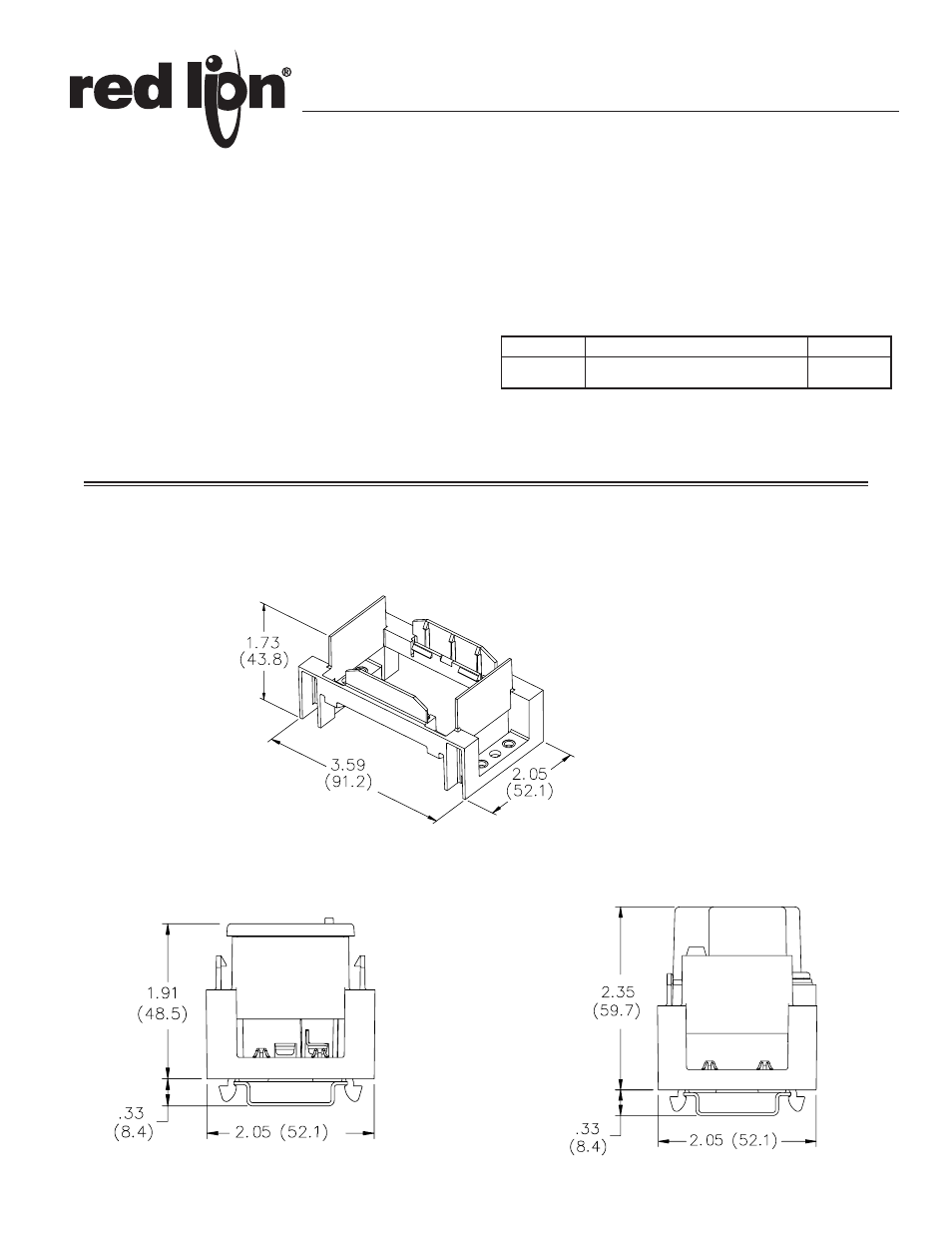

DIMENSIONS In inches (mm)
Bulletin No. BMK11-X
Drawing No. LP0761
Effective 6/08
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
BMK11000
BMK11
PART NUMBER
DESCRIPTION
MODEL NO.
ORDERING INFORMATION
CUB5 or MLPS DIN Rail Base Mount Kit
BMK11 WITHOUT UNIT
