3

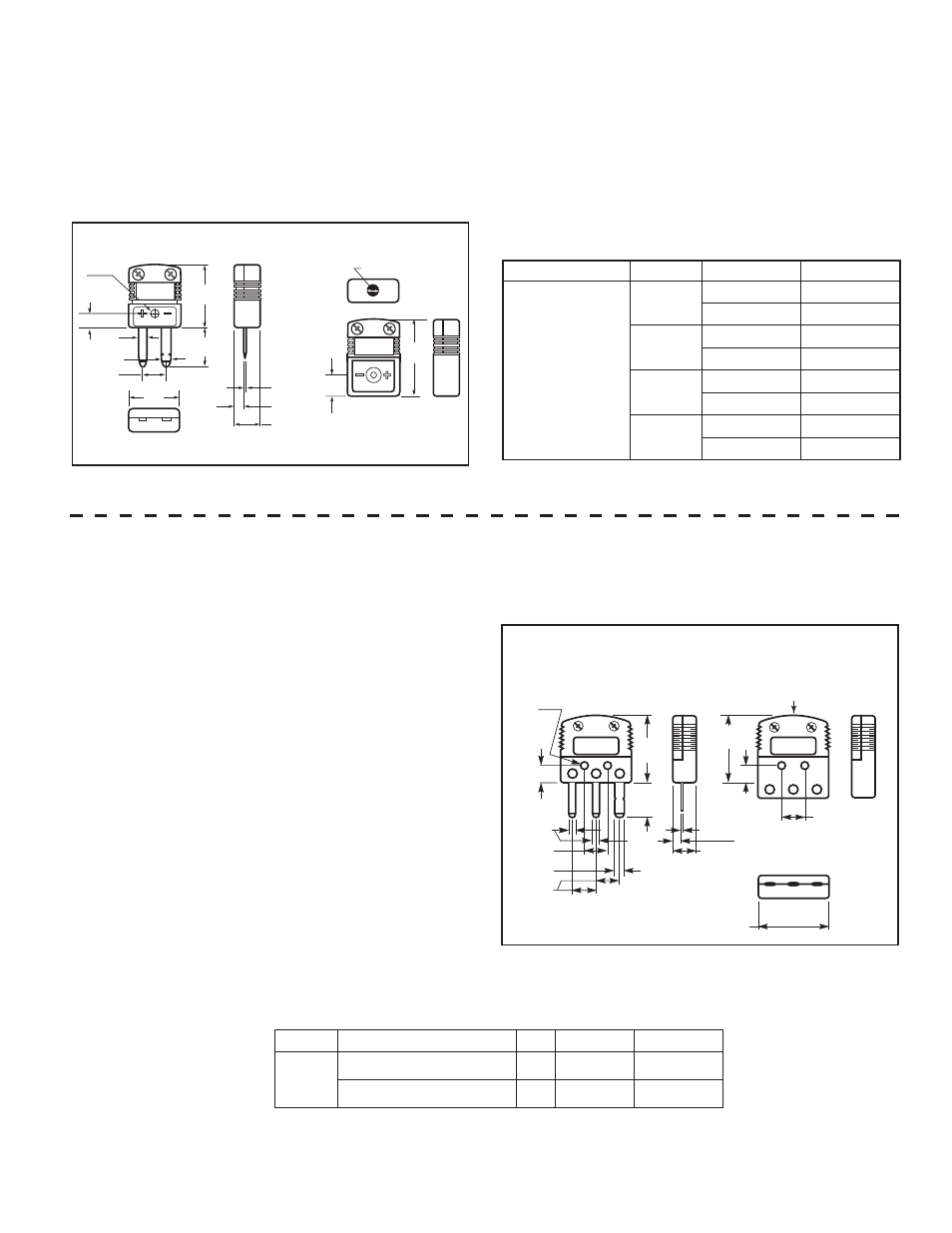

MODEL TMPCN - QUICK DISCONNECT MINIATURE CONNECTORS
GENERAL DESCRIPTION
Miniature Connectors are for use with the Miniature Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification.
SPECIFICATIONS
1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220º C. (-20 to 428 °F)
2. CONNECTOR BODY COLOR: ANSI color coded
3. WIRE GAGE: Accepts stranded or solid wire up to 20 AWG
4. WIRE TERMINATION: Combination Phillips/Slot Screws
ORDERING INFORMATION
0.10
(2.5) DIA.
0.19
(4.8)
0.09
(2.3)
0.13
(3.3)
0.31
(7.9)
0.66
(16.8)
0.13 (3.3)
0.31 (7.9)
0.50
(12.7)
0.81
(20.6)
0.194 (4.9) WIRE HOLE
(25.4)
0.28
(7.1)
1.00
0.03 (0.8)
DIMENSIONS In inches (mm)
DESCRIPTION TYPE TERMINATION PART NUMBER
MINIATURE
CONNECTOR
K
MALE TMPCNM01
FEMALE TMPCNM02
T
MALE TMPCNM03
FEMALE TMPCNM04
E
MALE TMPCNM05
FEMALE TMPCNM06
J
MALE TMPCNM07
FEMALE TMPCNM08 MALE
FEMALE
MODEL TMPCN - RTD PROBE CONNECTORS
GENERAL DESCRIPTION
RTD Mini Connectors are for use with RTD probes. They are miniature size,
and are available in both male and female termination.
SPECIFICATIONS
1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220 ºC.
2. CONNECTOR BODY COLOR: White
3. WIRE GAGE: Accepts stranded or solid wire up to 20 AWG
4. WIRE TERMINATION: Combination Phillips/Slot Screws
5. CONNECTOR ENDS: Copper
ORDERING INFORMATION
MODEL NO. DESCRIPTION TYPE TERMINATION PART NUMBER
U Male TMPCNM09
TMPCN
U Female TMPCNM10
0.23
G + –
G + –
0.13 DIA. TYP.
0.92
0.50
0.09
0.31
0.13
0.31
0.03
0.13
0.31
1.06
0.44
0.31
0.92
(3.3)
(5.8)
(2.3)
(7.9)
(3.3)
(7.9)
(23.4)
(12.7)
(26.9)
(11.2)
(0.8)
(3.3)
(7.9)
(23.4)
(7.9)
0.19 (4.93) WIRE
ACCESS HOLE
MALE FEMALE
DIMENSIONS In inches (mm)
RTD Miniature Male Connector
RTD Miniature Female Connector
