Bulletin No. TMPC/U/B-C
Drawing No. LP0721
Released 06/13
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

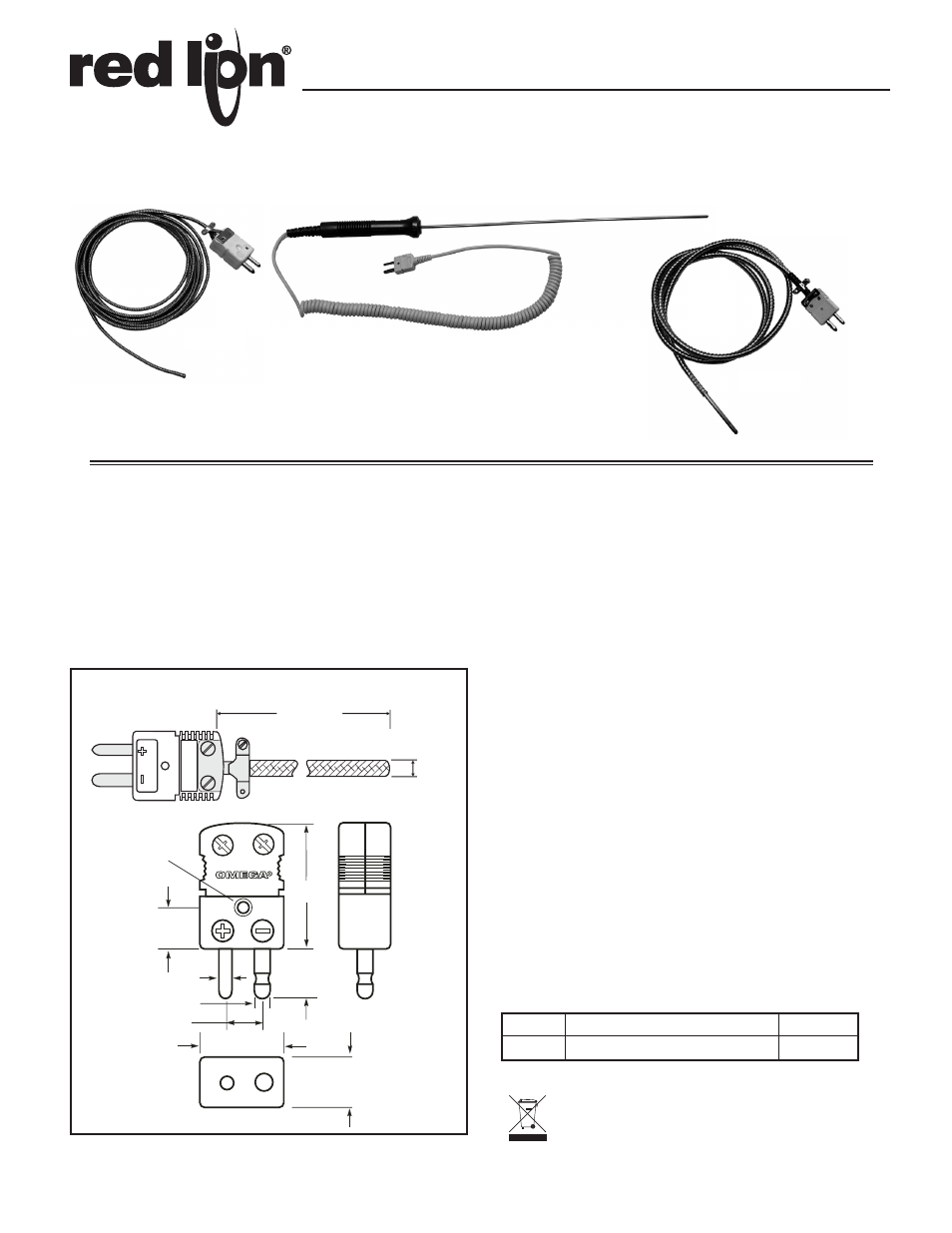

MODEL TMPC - HIGH TEMPERATURE THERMOCOUPLE
MODELS TMPC, TMPU, & TMPB THERMOCOUPLES
TMPC
TMPU
TMPB
GENERAL DESCRIPTION
The model TMPC thermocouple is double-protected with abrasion resistant
Inconel overbraid with high temperature ceramic fiber insulation. A temperature
rating of up to 980 ºC (1796 ºF) continuous service and 1090 ºC (1994 ºF) short-
term service makes these probes ideal for many high temperature measurement
applications. Ideal applications include profiling ovens and furnaces.
Flexible and Abrasion Resistant
Smooth, rounded tip on “hot” side
Male high temperature standard size ceramic connector on “cold”
side
SPECIFICATIONS
1. WIRE: 20 AWG, 10 feet in length; standard limits of error
2. INSULATION: Nextel
®
ceramic fiber. (Not to be exported) *
3. TEMPERATURE: 980 ºC (1796 ºF) continuous
1090 ºC (1994 ºF) short-term service depending on TC type
4. CONNECTOR: High temperature ceramic standard size style connector -29
to 650 ºC (-20 to 1202 ºF)
5. PROBE: Grounded TC junction with Inconel overbraid welded to form a
smooth, round tip
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
PART NUMBER
TMPC
Type K OVERBRAIDED CERAMIC TC
TMPKCF01
3/16
(4.8)
10.0 (254.0)
0.10 DIA.
(2.5)
0.5
(12.7)
0.16
(4.1)
0.19
(4.8)
0.44
(11.2)
1.00 (25.4)
1.50
(38.1)
0.59
(15)
0.63
(16)
DIMENSIONS In inches (mm)
* Nextel can not be exported. Consult factory for available options.
Do not dispose of unit in trash - Recycle
