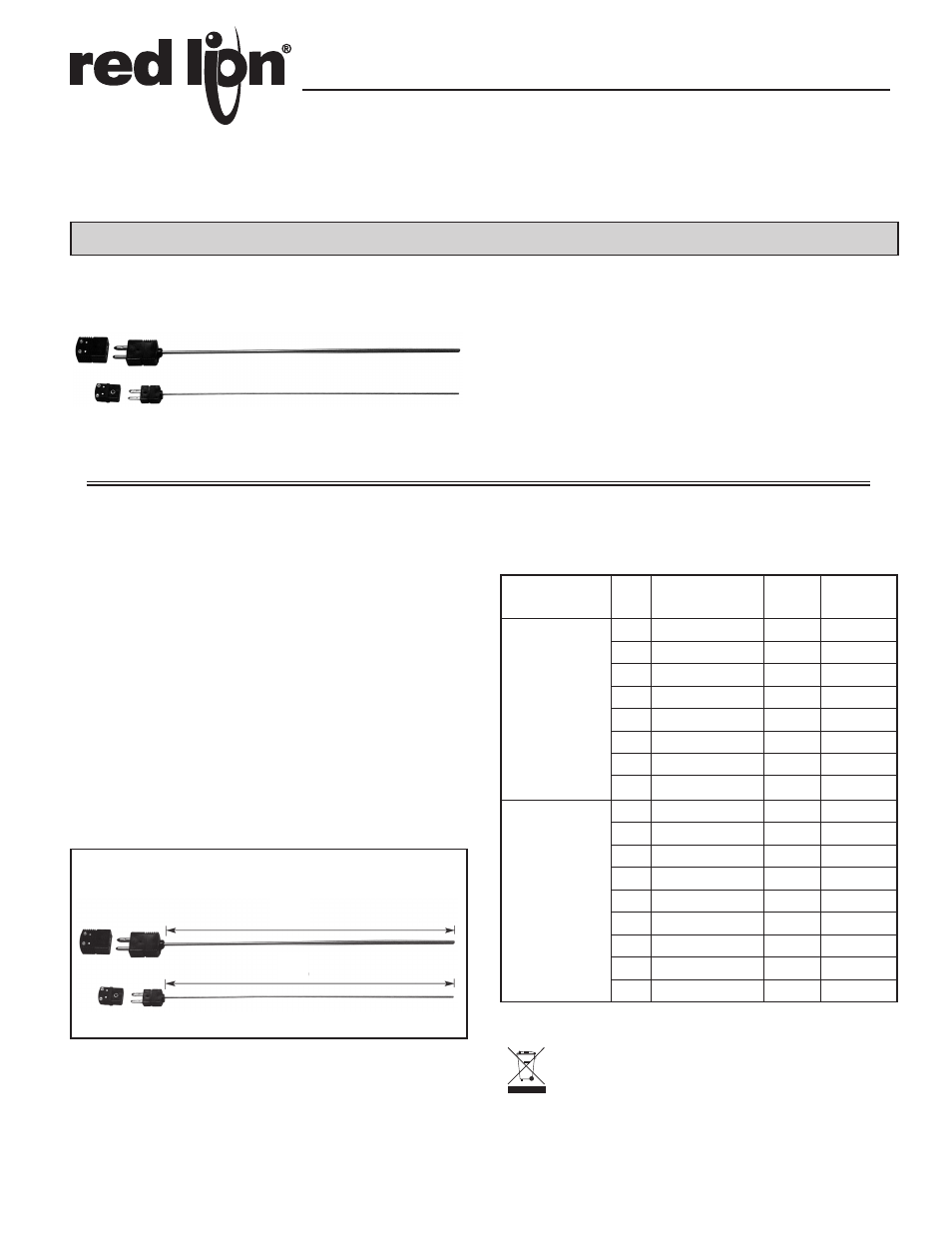

QUICK DISCONNECT TEMPERATURE PROBES AND ACCESSORIES
Bulletin No. TMPQD-C
Drawing No. LP0717
Released 06/13
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
M
odel
TMP - Q
uick
d
isconnecT
T
eMPeraTure
P
robes
GENERAL DESCRIPTION
Model TMP Quick Disconnect Thermocouples are available with both
miniature and standard size connector termination. These rugged probes feature
a variety of calibration types, sheath materials and diameters, and are available
with an ungrounded junction. A high temperature probe is also available that can
be mated with a standard female universal connector. All temperature probes are
rated at the tolerance standard SLE, (Special Limits Of Error), which is ±2 °C
degrees of error.
SPECIFICATIONS
1. SHEATH: Constructed of 304 stainless steel, Inconel 600, or XL (High
Temperature Probe only)
2. SHEATH DIAMETER: 1/16" or 1/8"
3. PROBE LENGTH: 12" Ungrounded junction.
4. CONNECTOR BODY: Glass Filled Nylon, rated to 220 ºC.
5. WIRE: Sold separately, see accessory details
ORDERING INFORMATION
1/16 Dia.
1/8 Dia.
12 (304.8)
12 (304.8)
DIMENSIONS In inches (mm)
 MATING FEMALE CONNECTOR (with "write on label") AND PLCM
CABLE CLAMP WITH LOCKING CLIP INCLUDED WITH
MINIATURE AND STANDARD SIZE PROBES
 CHOICE OF 304 SS, INCONEL 600 OR XL SHEATH
 XL HIGH TEMPERATURE PROBE AVAILABLE
 MEETS OR EXCEEDS SLE AND EN 60584-2: TOLERANCE
CLASS 1
 COLOR CODED CONNECTOR BODY
 WIRE SOLD SEPARATELY
DESCRIPTION SHEATH MATERIAL
SHEATH
DIAMETER
INCHES
PART NUMBER
J 1/16 TMPJQD01
K 304SS 1/16 TMPKQD01
T 304SS 1/16 TMPTQD01
E 304SS 1/16 TMPEQD01
J INCONEL 600 1/16 TMPJQD02
K INCONEL 600 1/16 TMPKQD02
T INCONEL 600 1/16 TMPTQD02
E INCONEL 600 1/16 TMPEQD02
STANDARD
QUICK
DISCONNNECT
TC PROBE
W/ MOLDED
CONN
J 304SS 1/8 TMPJQD03
K 304SS 1/8 TMPKQD03
T 304SS 1/8 TMPTQD03
E 304SS 1/8 TMPEQD03
J INCONEL 600 1/8 TMPJQD04
K INCONEL 600 1/8 TMPKQD04
T INCONEL 600 1/8 TMPTQD04
E INCONEL 600 1/8 TMPEQD04
K XL 1/8 *TMPKQD05
ANSI
TYPE
TC
304SS
MINI
QUICK
DISCONNNECT
TC PROBE
W/ MOLDED
CONN
* XL probes have a very low drift and are for use in high temperature
applications up to 1335 °C.
