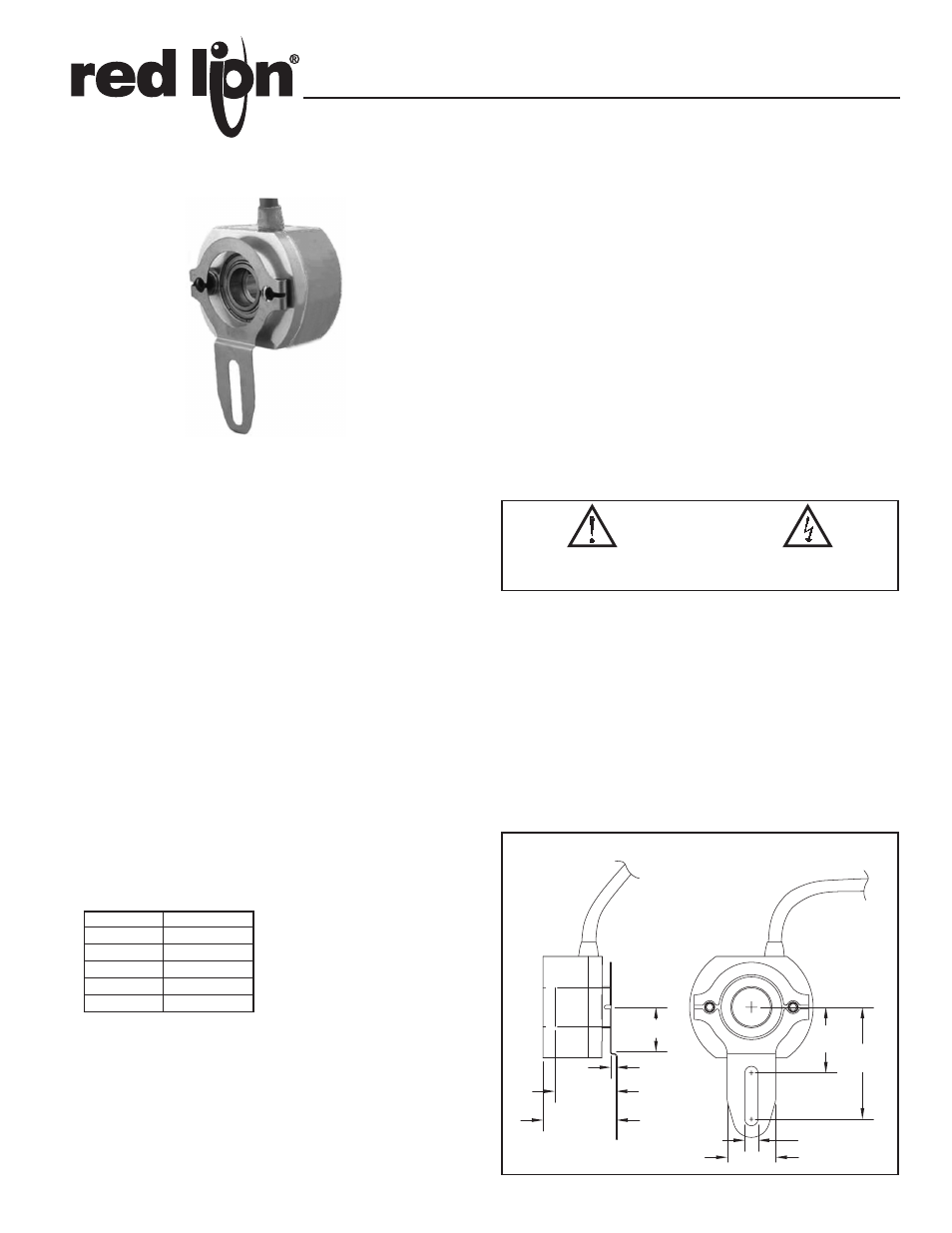

MODELS ZPJ - LARGE THRU-BORE ROTARY PULSE GENERATOR
GENERAL DESCRIPTION
The Model ZPJ ia a thru-bore encoder with a bore of 0.625" (15.875 mm).
Additional mounting kits are available to adapt it to both standard and metric
shaft sizes. This unit is ideal for applications requiring a miniature, high
precision, low cost encoder, designed with all metal construction for years of
trouble-free operation.
The ZPJ encoder has a flexible arm mount and blind hollow shaft. It uses two
set screws that are 90° apart to clamp the encoder's hub to the motor shaft. The
NPN Open Collector outputs are each current limited to 20 mA. The outputs are
standard quadrature with index, and are available in resolutions up to 2500
pulses per shaft revolution. The quadrature separation is typically 90 electrical
degrees. Output A leads output B for clockwise rotation of the encoder shaft.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Open Collector Output Wiring
The ZPJ encoder has open collector outputs. An open collector output brings
the uncommitted collector of the encoder switching device to the external
world. Because the collector element is not associated with the sensor supply
voltage, the sensor output collector may be “pulled up” to external voltages
different than the encoder supply voltage (30 VDC maximum). NPN open
collector outputs are current sinking devices. An output signal will not be
generated unless a pull-up resistor is connected from the open-collector to the
positive side of an external supply. The same supply can be used for powering
the unit and for the pull-up resistor.
Bulletin No. ZPJ-C
Drawing No. LP0723
Released 03/14
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
1. SUPPLY VOLTAGE: 4.75 to 28 VDC, 100 mA max.
2. OUTPUTS: NPN Open Collector Transistor, V
OH
= 30 VDC max.; 20 mA
max. current. Incremental - Two square waves in quadrature with A leading
B for clockwise rotation.
3. MAX. FREQUENCY: 200 KHz
4. INDEX: NPN Open Collector Transistor, V
OH
= 30 VDC max.; 20 mA max.
current. Once per revolution centered over output Channel A. Index is a
positive going pulse.
5. NOISE IMMUNITY: Tested to BS EN61000-6-2; BS EN50081-2;
BS EN61000-4-2; BS EN61000-4-3; BS EN61000-4-6; BS EN55011
6. SYMMETRY: 180° (±18°) electrical
7. QUAD PHASING: 90° (±22.5°) electrical
8. MIN EDGE SEP: 67.5° electrical
9. ACCURACY: Within 0.01° mechanical from one cycle to any other cycle,
or 0.6 arc minutes.
MECHANICAL SPECIFICATIONS
1. MAXIMUM MECHANICAL SPEED: 7500 RPM
2. BORE SIZE: 0.625" (15.875 mm)
3. BORE TOLERANCES: -0.0000"/+0.0006"
4. USER SHAFT TOLERANCES:
Radial Runout: 0.007" max
Axial Endplay: +/- 0.030" max
5. STARTING TORQUE: 2.5 oz-in (17.65 N-mm) IP64
6. MOMENT OF INERTIA:
3.9 x 10 -4 oz-in-sec 2 (27.5 gm-cm 2 )
7. MAX ACCELERATION: 1 X 10 5 rad/sec 2
8. ELECTRICAL CONNECTION: 36" (914.4 mm) cable (foil and braid
shield, 24 AWG conductors)
FUNCTION WIRE COLOR
+VDC Red
Common Black
Data A White
Data B Green
Index Z Orange
9. HOUSING: Non-corosive metal
10. MOUNTING: Flex arm 1.06" to 1.81" radius mounting
11. WEIGHT: 3.5 oz. typical (99.2 g)
ENVIRONMENTAL SPECIFICATIONS
1. OPERATING TEMPERATURE: 0°C to +70°C
2. STORAGE TEMPERATURE: -40°C to +100°C
3. HUMIDITY: 98% RH non-condensing
4. VIBRATION: 10 g @ 58 to 500 Hz
5. SHOCK: 50 g @ 11 msec duration
6. SEALING: IP64
BLIND
BORE DEPTH
1.00
1.19 (30.23)
1.06
1.81
0.78 (19.81)
0.22 (5.59)
0.73 (18.54)
0.10 (2.54)
(26.92)
(45.97)
DIMENSIONS In inches (mm)
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
