Red Lion ZR - C-FACE MOTOR ENCODER - Manual (Page 2)

MOUNTING INSTRUCTIONS
Mounting Kit Items Included:
4 ea. - 3/8" 16 x 1.0" Length Socket Head Cap Screws,
Black Alloy.
4 ea. - 3/8" High Collar Spring Lock washer, Steel Zinc.
1 ea. 3/32" Hex Allen Wrench, Long arm.
Note: The ZR encoder can mount to many types of C face devices.
In these mounting instructions, we will refer to the device as a
motor.
Step 1
After carefully unpacking the unit, inspect to insure the motor
shaft is the correct size and free of all burrs or aberrations. Slide
the ZR Encoder over the motor shaft. DO NOT USE EXCESSIVE
FORCE: There is a rubber O-ring in the Encoder locking collar
that will provide a small amount of resistance as it engages the
shaft. If the encoder does not slide easily See Note 1 below.
Step 2
Install the four 3/8" 16 x 1.0" socket head cap screws with lock washers
through the holes in the Encoder C face and tighten securely to the motor.
Step 3
Insure the shaft locking collar is flush with the Encoder cover plate. Prevent
the motor shaft from turning (See Note 2 for additional information) and
tighten the four 4-40 Allen head cap screws in the locking collar evenly in a

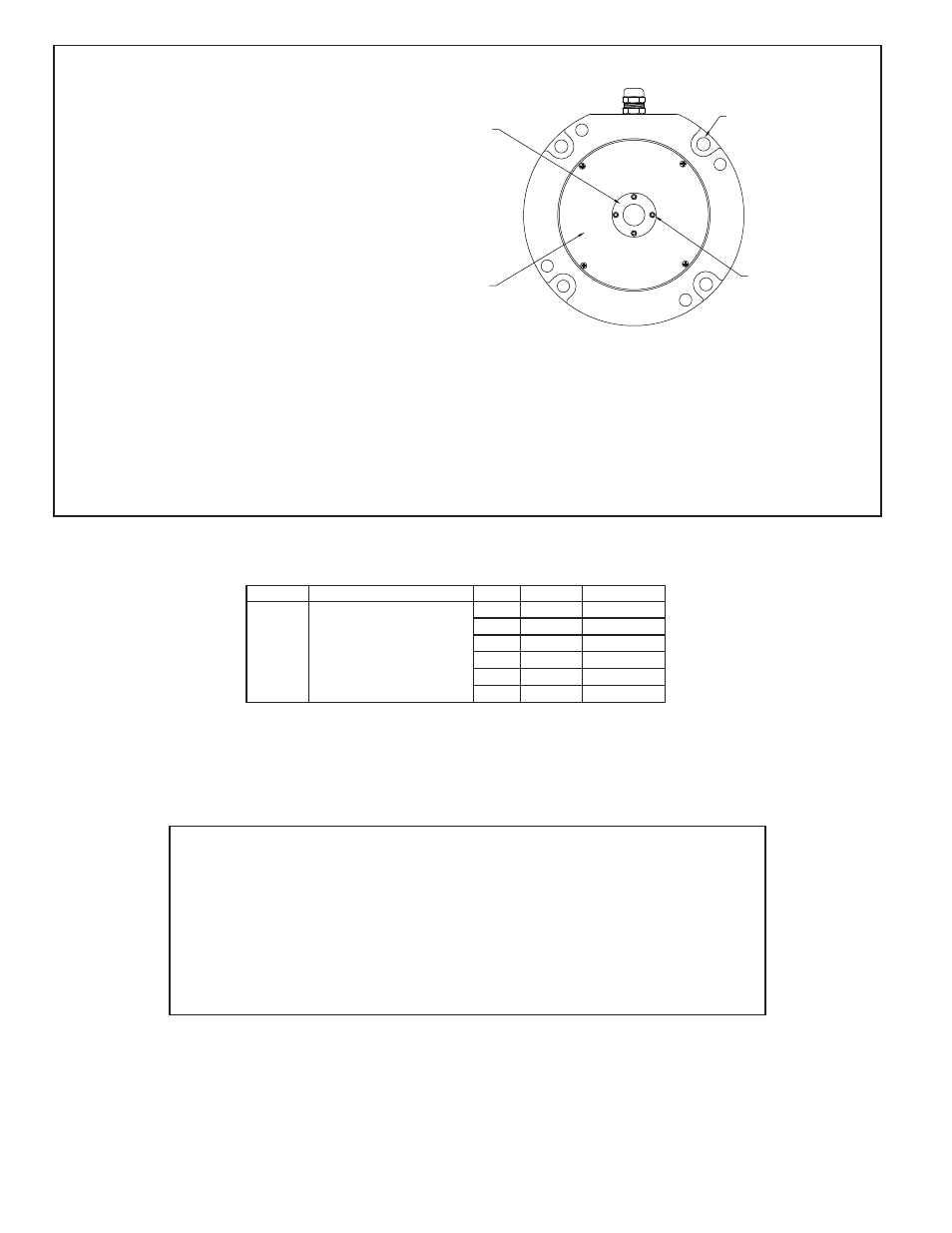

crossing pattern. See Figure 1. Make sure the screws are securely tightened and
the front of the locking collar remains flush with the encoder cover plate. If the
collar does not turn true when the motor shaft is rotated, loosen the four screws
and repeat the procedure.
In Case of Difficulty:
Note 1: Make sure the four 4-40 Allen head cap screws in the front of the
Encoder locking collar are loose and the collar is not cocked or jammed.
Clean the shaft of any burrs using fine crocus cloth. The O- ring in the
Encoder locking collar may need a small amount of additional lubrication.
Note 2: When tightening the screws in the locking collar avoid holding the
motor shaft with anything that may scar or burr the shaft.
SHAFT LOCKING
COVER PLATE
4-40 ALLEN CAP SCREWS
3/8" - 16 X 1.0" SCREWS
(4) PLACES TYPICAL
(4) PLACES TYPICAL
COLLAR
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship for a period limited to two years
from the date of shipment, provided the products have been stored, handled, installed, and used under proper conditions. The
Company’s liability under this limited warranty shall extend only to the repair or replacement of a defective product, at The
Company’s option. The Company disclaims all liability for any affirmation, promise or representation with respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against damages, claims, and expenses
arising out of subsequent sales of RLC products or products containing components manufactured by RLC and based upon personal
injuries, deaths, property damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be to any
extent liable, including without limitation penalties imposed by the Consumer Product Safety Act (P.L. 92-573) and liability imposed
upon any person pursuant to the Magnuson-Moss Warranty Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those expressly contained herein.
The Customer acknowledges the disclaimers and limitations contained herein and relies on no other warranties or affirmations.
ORDERING INFORMATION
MODEL NO. DESCRIPTION PPR BORE SIZE PART NUMBER
ZR
NEMA C Face Encoder
56C to 184C
(Must select proper bore size)
256 0.625 ZRJ0256A
1024 0.625 ZRJ1024A
256 1.0 ZRL0256A
1024 1.0 ZRL1024A
256 0.875 ZRI0256A *
1024 0.875 ZRI1024A *
* Replaces ARC1. Available by special order, consult factory.
