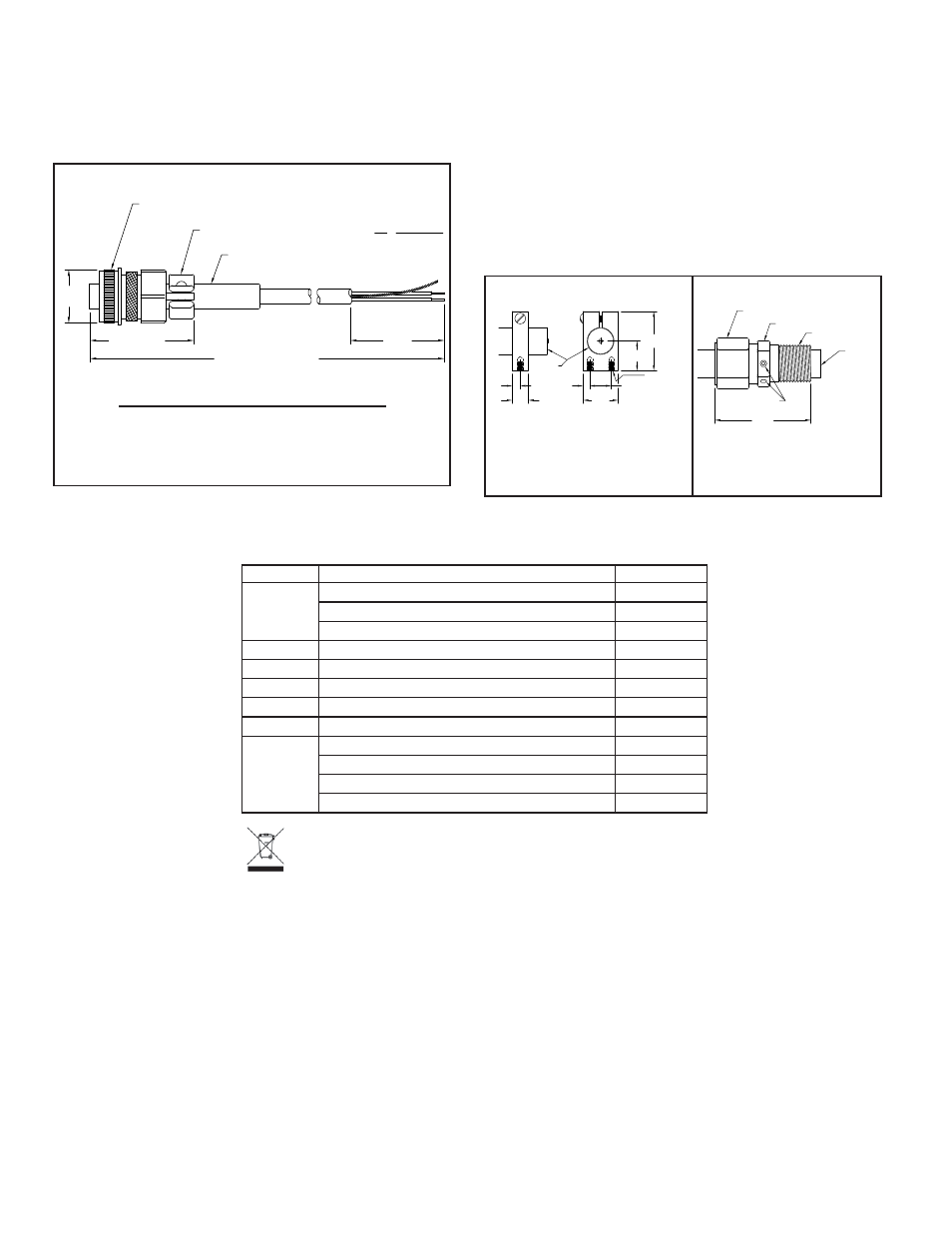

3-PIN CONNECTOR EXTENSION CABLE
(LMPCC & LMPEC)
This cable and connector assembly (see diagram below) is composed of PVC
jacketed, 3-wire 22 AWG conductors with stranded shield and 100% foil shield
coverage for noise immunity and is oil and water resistant. Connector/cable
junctions are silicone sealed. The 5/8"-24 threaded ring is fitted with an O-ring to
make a moisture proof connection. Cable is available in 10, 25, or 50 foot lengths.
DIMENSIONS In inches (mm)
3-PIN CONNECTOR EXTENSION CABLE
PVC jacketed, 3-wire, 22 AWG conductors with stranded shield and
100% foil shield coverage. There is no connection of stranded shield wire
to 3-pin connector. Shield may be connected to instrument common for
increased noise immunity.
3/4" DIAMETER CYLINDRICAL SENSOR MOUNTING
Logic Magnetic Pickups and other Red Lion Controls 3/4" dia. cylindrical
pickups may be easily mounted using Model 5400100 BLOCK MOUNT (see
diagram below). This machined block of solid aluminum provides for rigid
mounting using the two included #8-32 x 1/2" screws. The one screw split-
clamp design allows for easy adjustment of airgap and locks the unit securely
without deforming the case.
The PLUG MOUNT (see diagram below) allows 3/4" dia. cylindrical
sensors to be mounted in “thru-wall” applications. The Plug Mounts 3/4-14 NPT
thread is installed into a threaded wall or casing. The sensor is then installed
through the plug mount. The sensor-to-target airgap is adjusted and the sensor
is tightened into position by two #8-32 set screws. Tightening the ferrule nut
compresses a teflon ferrule around the sensor providing an oil tight seal. Plug
Mounts are available in both steel and stainless steel (see ordering information).
BLOCK MOUNT PLUG MOUNT
For 3/4" cylindrical sensors For 3/4" cylindrical sensors
Qty. 2 #8-32 x 1/2 " Mounting screws
included P/N 5403701 - steel
P/N 5400100 P/N 5403702 - stainless steel
2.0
(50.8)
10, 25 & 50 FOOT LENGTH
1.785 (45.3)
.875
(22.2)
POLARIZED 3-PIN, 5/8" - 24 THREADED CONNECTOR
CABLE CLAMP
STRAIN RELIEF BOOT
PIN
A=
B=
C= RED
WHITE
BLACK
WIRE COLOR
.625
1.00
(25.4)
.50
(12.7)
.25
(6.4) (15.9)
.187
(4.8)
#8-32 THD.
.25" (6.4) MIN.
.875
(22.2)
1.625
(41.3)
SENSOR
#8-32 SET
SCREWS
PICKUP
SENSING
FACE
3/4" x 14 NPT
PIPE THREAD
1 1/16" HEX
2.01
1 1/8" HEX
FERRULE NUT
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBER
LMPC
Logic Magnetic Pickup, NPN O.C., 10 ft. Cable LMPC0000
Logic Magnetic Pickup, NPN O.C., 25 ft. Cable LMPC0025
Logic Magnetic Pickup, NPN O.C., 50 ft. Cable LMPC0050
LMPCC Logic Magnetic Pickup, NPN O.C., 3-Pin Connector LMPCC000
LMPEC Logic Magnetic Pickup, Emitter Follower, 3-Pin Connector LMPEC000
Block Mount for 3/4" Cylindrical Sensors 5400100
Steel Plug Mount 5403701
Stainless Steel Plug Mount 5403702
CCA3
3-Pin Connector without Cable 2500030
3-Pin Connector with 10 ft. Cable CCA3PC00
3-Pin Connector with 25 ft. Cable CCA3PC25
3-Pin Connector with 50 ft. Cable CCA3PC50
Do not dispose of unit in trash - Recycle
