ORDERING INFORMATION
DESCRIPTION PART NUMBER
ZLZ
Quadrature output, 50 PPI, Standard Housing ZLZ0050G
Quadrature output, 500 PPI, Standard Housing ZLZ0500G
MODEL NO.

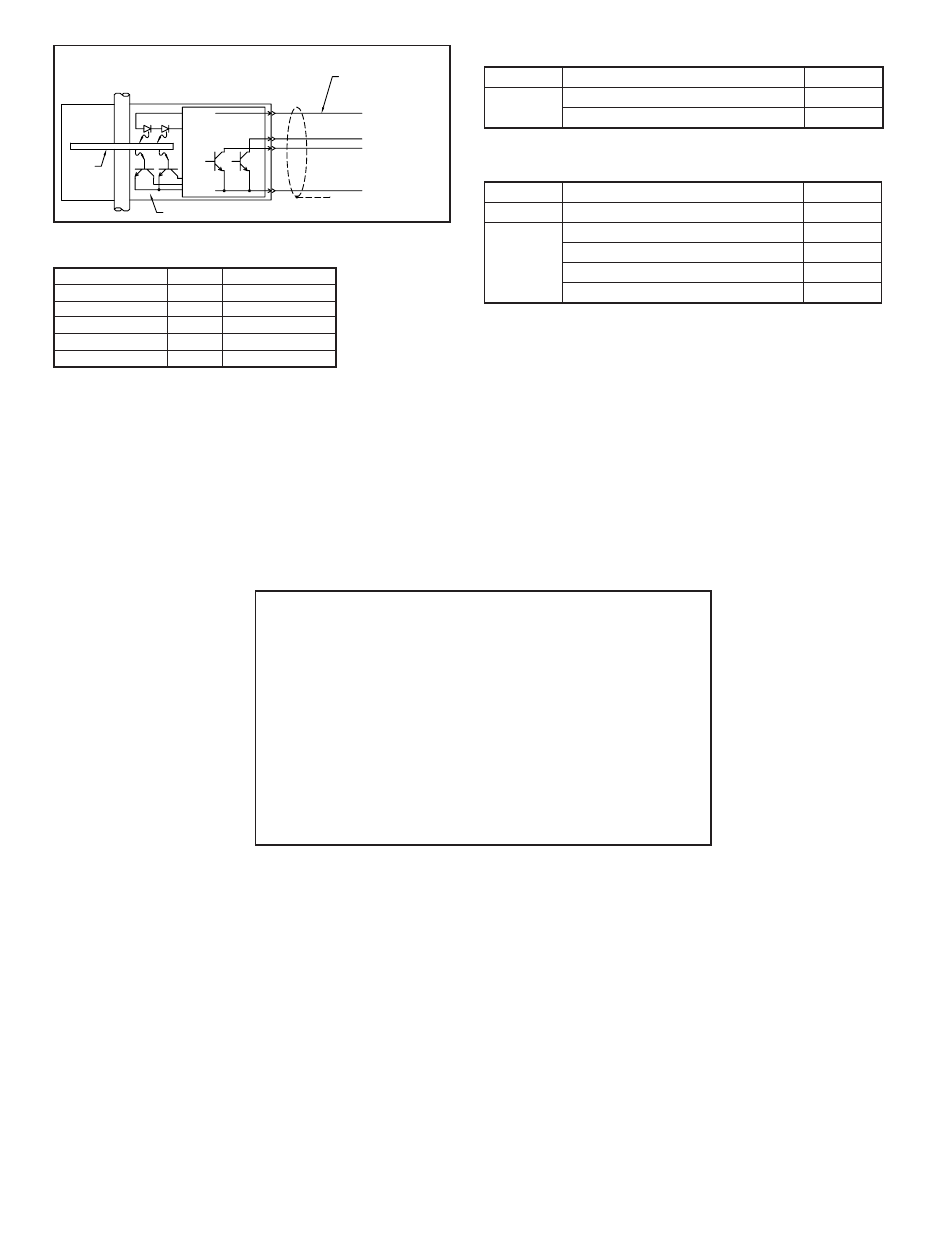

ZLZ WIRING SPECIFICATIONS
SLOTTED
DISC
PHOTO XISTOR'S
SHAF
T
LED'S
+VDC
DATA B
COMMON
DATA A
CABLE & CONNECTOR ASSY
(ORDER SEPARATELY)
DUAL
CHANNEL
PULSE
SHAPING
AMP.
LE PIN FUNCTION CCARPG WIRE COLOR
+VDC A RED
COMMON B BLACK
DATA A C WHITE
DATA B D GREEN
NO CONNECTION E
ZLZ ELECTRICAL CONNECTIONS
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except
those expressly contained herein. The Customer acknowledges the disclaimers and limitations
contained herein and relies on no other warranties or affirmations.
ACCESSORIES
CCARPG50 50' 6-Pin 4-Wire Cable/Connector
CCARPG25 25' 6-Pin 4-Wire Cable/Connector
CCARPG01 10' 6-Pin 4-Wire Cable/Connector
CCARPG00
LEMTBR00 ZLZ Mounting Bracket
Mating 6-Pin MS Connector
CCARPG
PART NUMBER DESCRIPTION MODEL NO.
