1
 LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED LED BACKLIGHTING
 INTERNAL LITHIUM BATTERY PROVIDES UP TO 6 YEARS OF
UNINTERRUPTED OPERATION
 NEMA 4X/IP65 SEALED FRONT BEZEL
 FRONT PANEL RESET, REMOTE RESET, OR BOTH
 COUNT INPUT FROM 10 to 300 VAC/DC
 WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
TERMINALS
DESCRIPTION
The CUB4L8W offers a large display in a miniature package. The CUB4L8W
(8-digit counter with voltage input) has a choice of three displays; reflective, red
backlight or green backlight.
The backlight versions require power from an external 9–28 VDC supply. The
optional power supply (MLPS) is designed to be attached directly to the rear of
the CUB4L8W and is powered from an 85–250 VAC source. The power supply
provides 12 VDC @ 400 mA to power the backlight and sensor, if required.
The CUB4L8W has a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel with the silicone rubber reset button
meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments,
when properly installed.
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBERS
CUB4L8W
(8-digit
w/VCM)
Counter Positive Image Reflective CUB4L8W0
Counter w/Yel-Grn Backlighting CUB4L8W1
Counter w/Red Backlighting CUB4L8W2
Counter Positive Image Reflective w/V+ Terminal CUB4L8WM
MLPS
+12 VDC Micro-Line Power Supply, 85 to 250
VAC source, 400 mA max out
MLPS1000
+24 VDC Micro-Line Power Supply, 85 to 250
VAC source, 200 mA max out
MLPS2000
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. DISPLAY: 8-Digit, LCD, 0.46" (11.7 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery to provide up to 6 years of
continuous operation. Battery life is dependent upon usage. Count and reset
contacts that remain closed for long periods of time will reduce battery life.
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC, 35 mA typical,
50 mA max. Above 26 VDC, derate operating temperature to 50°C.
Must use the MLPS or a Class 2 or SELV rated power supply.
Note: External power shall incorporate disconnecting device (switch or
circuit breaker) and provide double/reinforced isolation from MAINS supply.
4. INPUTS:
Low Speed Input: 10 to 300 VAC/DC, 50/60 Hz, 30 cps max. V
IL
= 0.5
VDC max. Unit counts on positive going edge. Will not operate with
Triac outputs.
Remote Reset: 15 msec min. pulse width (active low) from 3.0 V bipolar
output or an open collector transistor or a switch contact to common.
Resetting Input: V
IL
(low) = 0.5 V max.
5. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 60°C (above 50°C, derate backlight operating
voltage to 26 VDC max.).
Storage Temperature: -30 to 85°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
to 50°C.
Vibration According to IEC 68-2-6: 5 to 500 Hz, in X, Y, Z direction for 1.5
hours, 5 g.
Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions.
Altitude: Up to 2000 meters
6. CERTIFICATIONS AND COMPLIANCES:
SAFETY
Type 4X Enclosure rating (Face only)
IP65 Enclosure rating (Face only), IEC 529
7. CONSTRUCTION:
This unit is rated for NEMA 4X/IP65 indoor use. Installation Category I,
Pollution Degree 2
8. WEIGHT: 3 oz. (85 grams)
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.

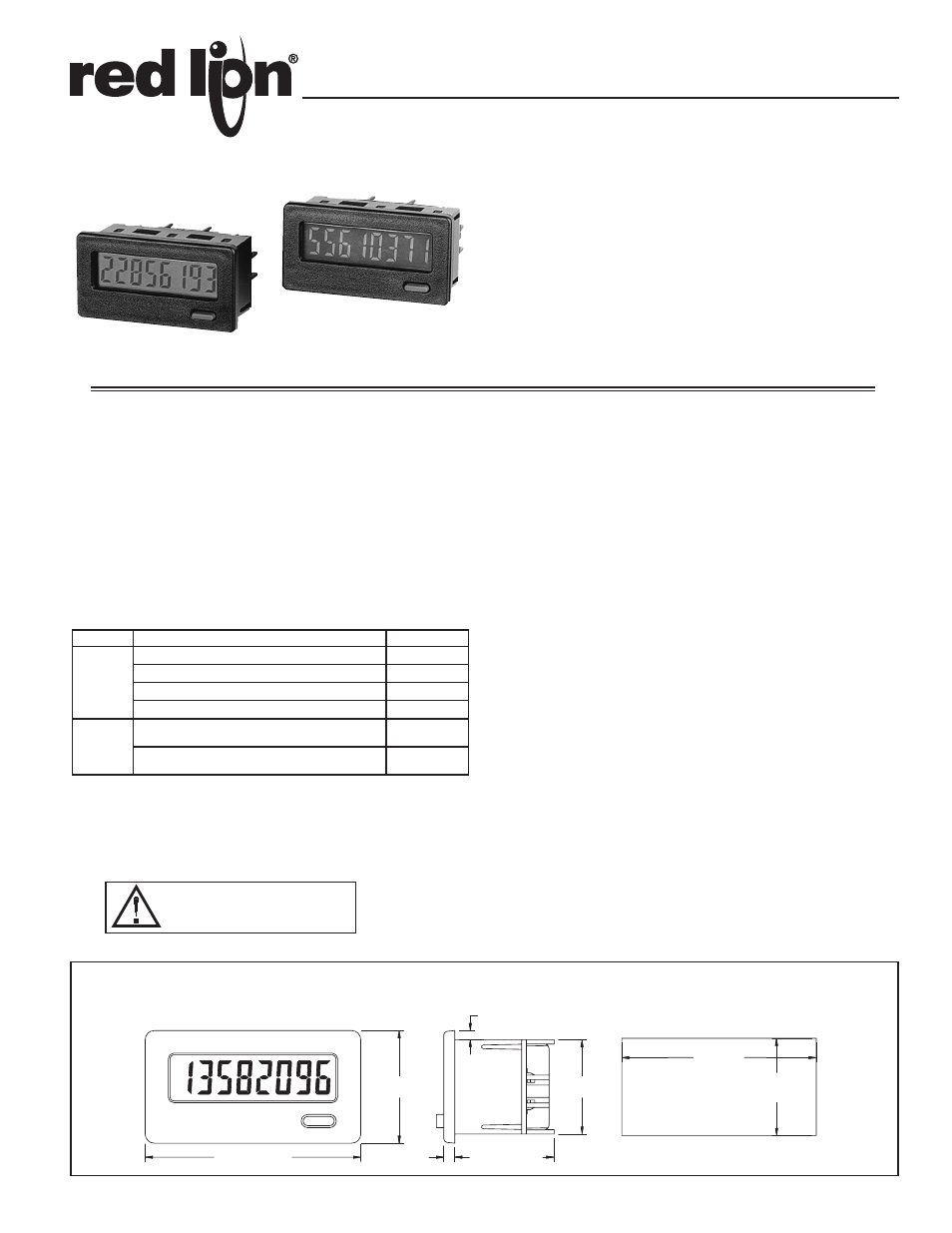

MODEL CUB4L8W - MINIATURE ELECTRONIC COUNTERS
DIMENSIONS In inches (mm)
2.95 (74.9)
1.54 (39.1) 1.29 (32.8)
0.15 (3.8) 1.36 (34.5)
0.13 (3.2)
2.68
(68 )
1.30
(33 )
+.024
-.000
+.6
-.0
+.025
-.000
+.6
-.0
Bulletin No. CUB4L8W-F
Drawing No. LP0585
Released 02/12
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
PANEL CUT-OUT
