1. POWER REQUIREMENTS:
Power is supplied to the option card from the main board of your G3 operator
interface.
2. COMMUNICATIONS:
DB9 female connector. Baud rate selectable between 9.6k and 12M.
3. CERTIFICATIONS AND COMPLIANCES:
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for Measurement,
Control and Laboratory use.
Immunity to Industrial Locations: Reference G3 unit for emissions and
immunity specifications
4. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50°C
Storage Temperature Range: -20 to 80°C
Operating and Storage Humidity: 80% maximum relative humidity (non-
condensing) from 0 to 50°C.
Altitude: Up to 2000 meters.
5. CONSTRUCTION: Installation Category I, Pollution Degree 2.
6. INSTALLATION REQUIREMENTS: Card must be installed inside the
rear cover of a G3 operator interface with the hardware provided. See
“Installing the G3MPI Option Card” for more details.
I
NSTALLING THE
G3MPI O
PTION
C
ARD
S
PECIFICATIONS
THE OPTION CARD LABEL
Place the option card label on your rear cover in the space indicated by the
dashed lines and labeled “COMMS EXPANSION MODULE.”
POWER SUPPLY REQUIREMENTS
NEW AND EXISTING INSTALLATIONS
The G3MPI option card draws all of its power from the main board of your
G3 operator interface. The specifications of your G3 operator interface account
for the power needs of an option card.
COMMS EXP
ANSION MODULE
RS232
RS485
RS232
INSTALLATION INSTRUCTIONS
Caution: The option and main circuit boards contain static sensitive components.
Before handling the cards, discharge static charges from your body
by touching a grounded bare metal object. Ideally, handle the cards at
a static controlled clean workstation. Also, handle the cards by the
edges only. Dirt, oil, or other contaminants that may contact the cards
can adversely affect circuit operation.
Warning: Depending upon the G3 operator interface, high voltage may
be present inside the operator interface. Be sure to remove all power
before removing the rear cover of the operator interface.
Each G3MPI option card comes with three screws for attaching the option
card to the inside of the G3 operator interface’s
rear cover.
To install the option card remove all
power and I/O communications cables
from the unit. The G3 operator interface
literature contains instructions for
removing the rear cover, refer to the
“Battery & Time Keeping” section.
Using the three screws provided
connect the option card to the rear
cover as shown in Figure 1.
Connect the cable from the option
card to CN11 on the main board of the
G3 operator interface as shown in
Figure 2. Be sure both ends of the
cables are firmly seated into their
appropriate connector housing.
Carefully replace the rear cover
by reversing the instructions for
removing the rear cover.

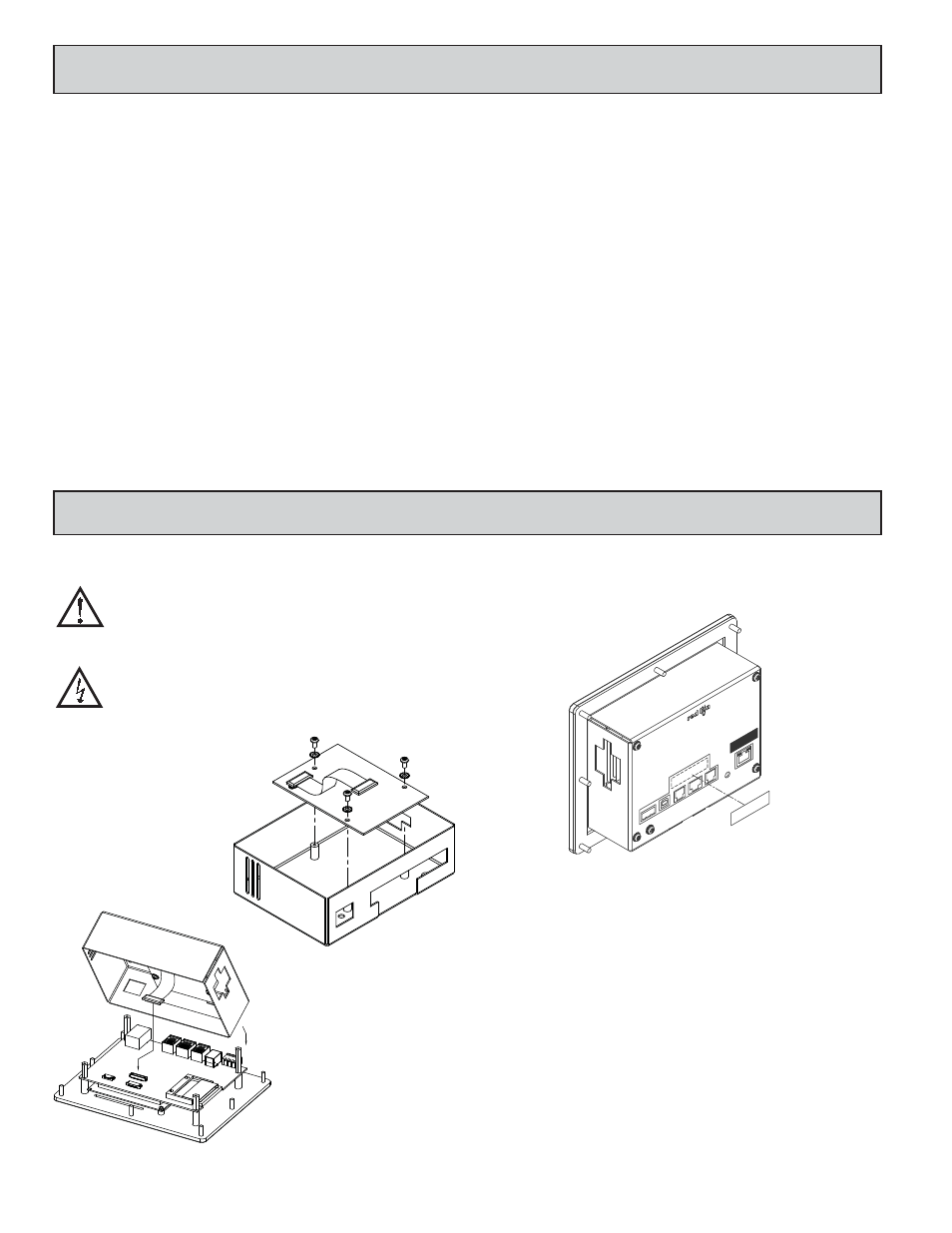

Figure 1
Figure 2
