1. Remove the power and PLC Communications connectors from the unit.
2. Remove the four screws from the rear cover.

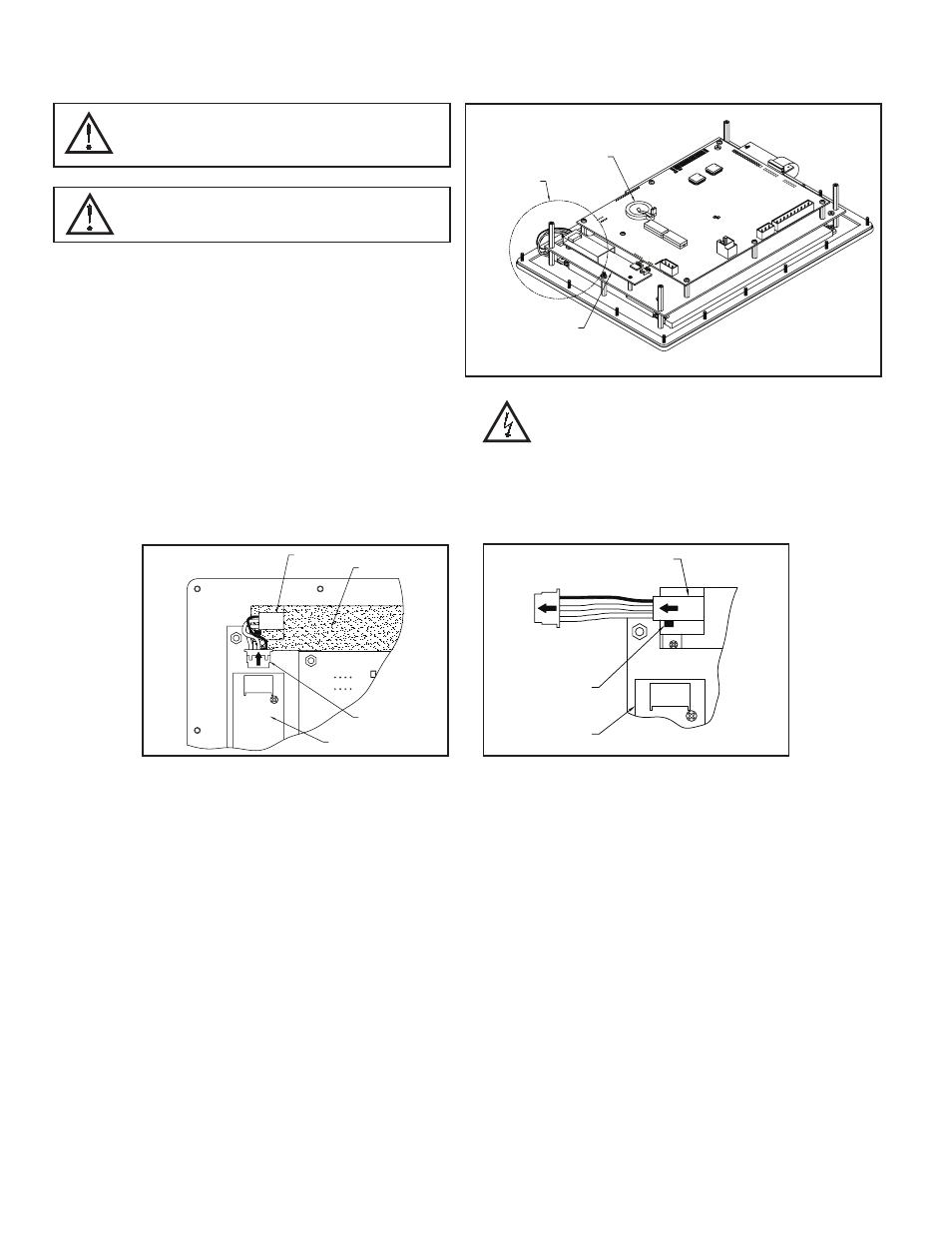

3. Locate the inverter board (refer to Figure 1).
4. Carefully remove the backlight connector from its connector housing on the
inverter board. (refer to Figure 2).
5. Depress the backlight release tab and carefully remove the backlight as
indicated in Figure 3.
6. To install the new backlight assembly, reverse the above steps. Ensure that
the florescent tubes of the backlight assembly face towards the display. Use
caution when inserting the new assembly so that it is not twisted or pushed
on an angle. The backlight assembly is fragile and may easily be broken.
See FIGURE 2
Inverter
Board
Battery Holder
CAUTIO
N
HIGH VO
LTAG
E
TOUCH SCREEN
4 2 3 1 5
3 1 2
KEYBOARD
INTERF ACE
Bh8
UCS
500 500T
Backlight
Display
Inverter Board
Backlight
Connector
Inverter
Board
Release
Tab
Backlight
Figure 1
Figure 2 Figure 3
TX700T BACKLIGHT REPLACEMENT PROCEDURE
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN DISCONNECTED
AND THE AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - THE AREA MUST BE KNOWN
TO BE NON-HAZARDOUS BEFORE SERVICING/ REPLACING
THE UNIT AND BEFORE INSTALLING OR REMOVING I/O,
INVERTER, BACKLIGHT, WIRING AND BATTERY.
CAUTION: RISK OF ELECTRIC SHOCK
The inverter board, attached to the mounting plate, supplies the
high voltage to operate the backlight. Touching the inverter
board may result in injury to personnel. Disconnect all power
before installing or removing backlight assembly.
