7
DH485 COMMUNICATIONS
The PTV’s RS422/485 COMMS port can also be used for Allen Bradley
DH485 communications.
WARNING: DO NOT use a standard DH485 cable to connect this port to Allen
Bradley equipment. A cable and wiring diagram are available from Red Lion.
LEDS
STS – STATUS LED
The green Status LED provides information regarding the state of the PTV, as
well as the rest of the system. This includes indication of the various stages of
the start-up routine (power-up), and any errors that may occur.
Startup Routine
LED INDICATION
Rapidly Flashing
PTV is currently running the boot loader and/or being
flash upgraded by Crimson.
Steady PTV is operating properly.
Error States
LED INDICATION
1 blink, pause, repeat
One or more slave modules are missing from the
system. PTV and installed modules will perform
normally in this state.
2 blinks, pause, repeat
Missing configuration, or configuration being
updated by Crimson.
3 blinks, pause, repeat
Quantity of module bases does not match
configuration file. PTV will not communicate with the
modules until the error is corrected.
4 blinks, pause, repeat
Termination plug not installed, or one or more bases
are malfunctioning. PTV will not communicate with
the modules until the plug is reinstalled, and power
is cycled.
CF LED
LED INDICATION
Off No CompactFlash Card is present.
Steady Valid CompactFlash card is present.
Flashing Rapidly CompactFlash card is being checked.
Flickering
Unit is writing to the CompactFlash, either because
it is storing data, or because the PC connected via
the USB port has locked the drive. 1
Flashing Slowly Incorrectly formatted CompactFlash card present.
1. Do not turn off power to the unit while this light is flickering. The unit writes data
in two minute intervals. Later Microsoft operating systems will not lock the drive
unless they need to write data; Windows 98 may lock the drive any time it is
mounted, thereby interfering with logging. Refer to “Mounting the CompactFlash”
in the Crimson User Manual.
USER COMMUNICATION PORTS - TX/RX LEDS
LED INDICATION
GREEN Transmitting
RED Receiving
Note: LEDs are not available on the Programming Port: RS232/PG.
ETHERNET LEDS
LED INDICATION
YELLOW (Solid) Link Established
YELLOW (Flashing) Network Activity
GREEN 10 BASE-T Communications
AMBER 100 BASE-TX Communications
COMPACTFLASH ® CARD
CompactFlash socket is a Type II socket that can accept either Type I or II
cards. Use cards with a minimum of 4 Mbytes and formatted to a maximum of 2
Gbytes (see Note box below) with the PTV’s CompactFlash socket. Cards are
available at most computer and office supply retailers. CompactFlash can be used
for configuration transfers, data logging, and trending.
Information stored on a CompactFlash card can be read by a card reader
attached to a PC. This information is stored in IBM (Windows ® ) PC compatible
FAT16 file format.

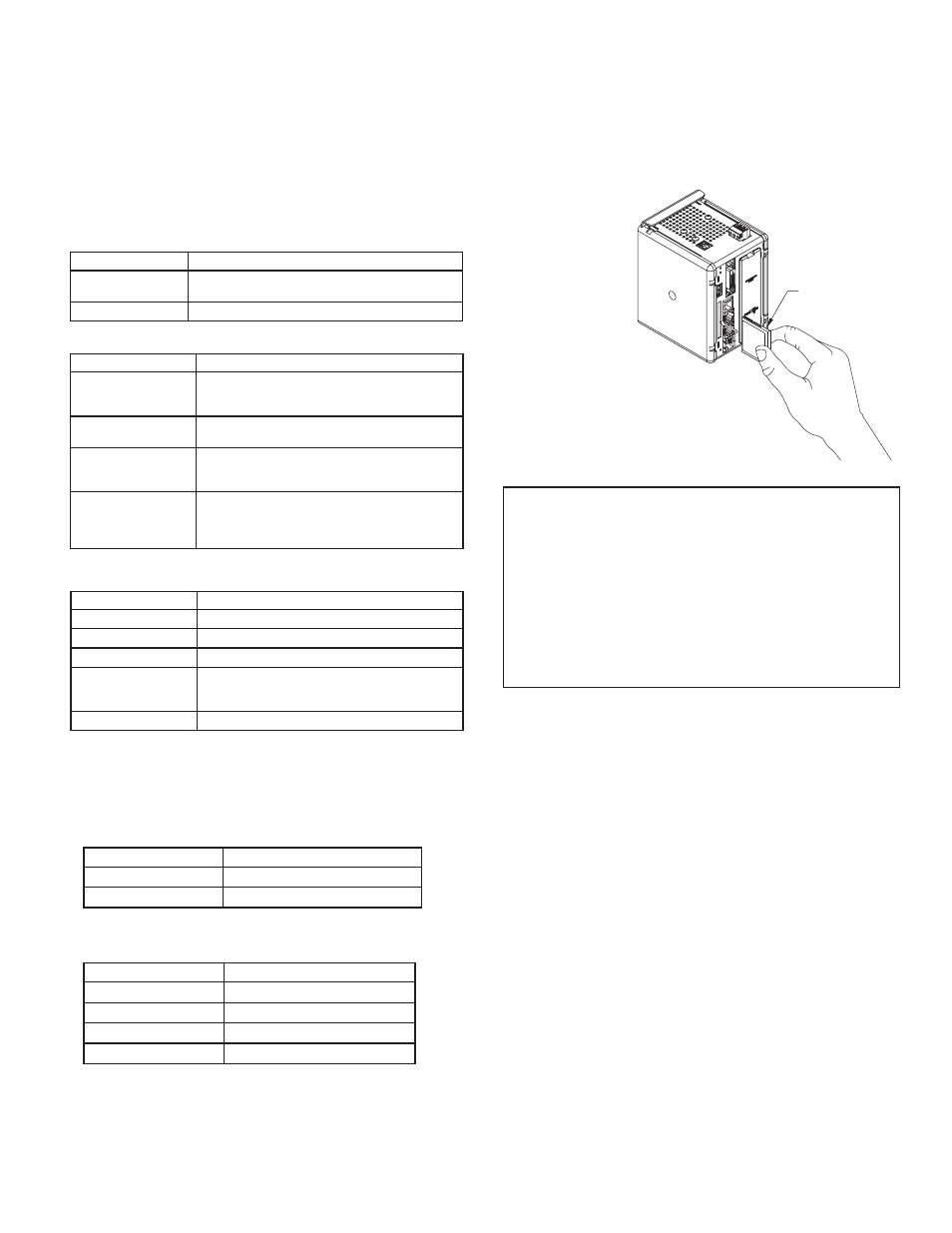

CompactFlash-
Insert Top Side
Towards Left
(T
op Side) CompactFlash
Note: Do not remove or insert
the CompactFlash card while
power is applied.
NOTE
For reliable operation of this and other Red Lion products, one of the
following brands of CompactFlash card must be used...
SimpleTech SMART ® Modular
SanDisk ® Silicon Systems
Not all of the above manufacturers offer CompactFlash cards recognized to
UL standards, which may be required for your application.
Although RLC products limit use of CompactFlash card memory to 2 GB,
cards with a larger capacity can be used. They MUST be formatted to 2
GB and use the FAT 16 file system. It is recommended to format the CF
card using the format utility from within Crimson.
