Emc installation guidelines, Hardware installation, Wiring – Red Lion GMOUT 4 Channel Analog Output Module User Manual

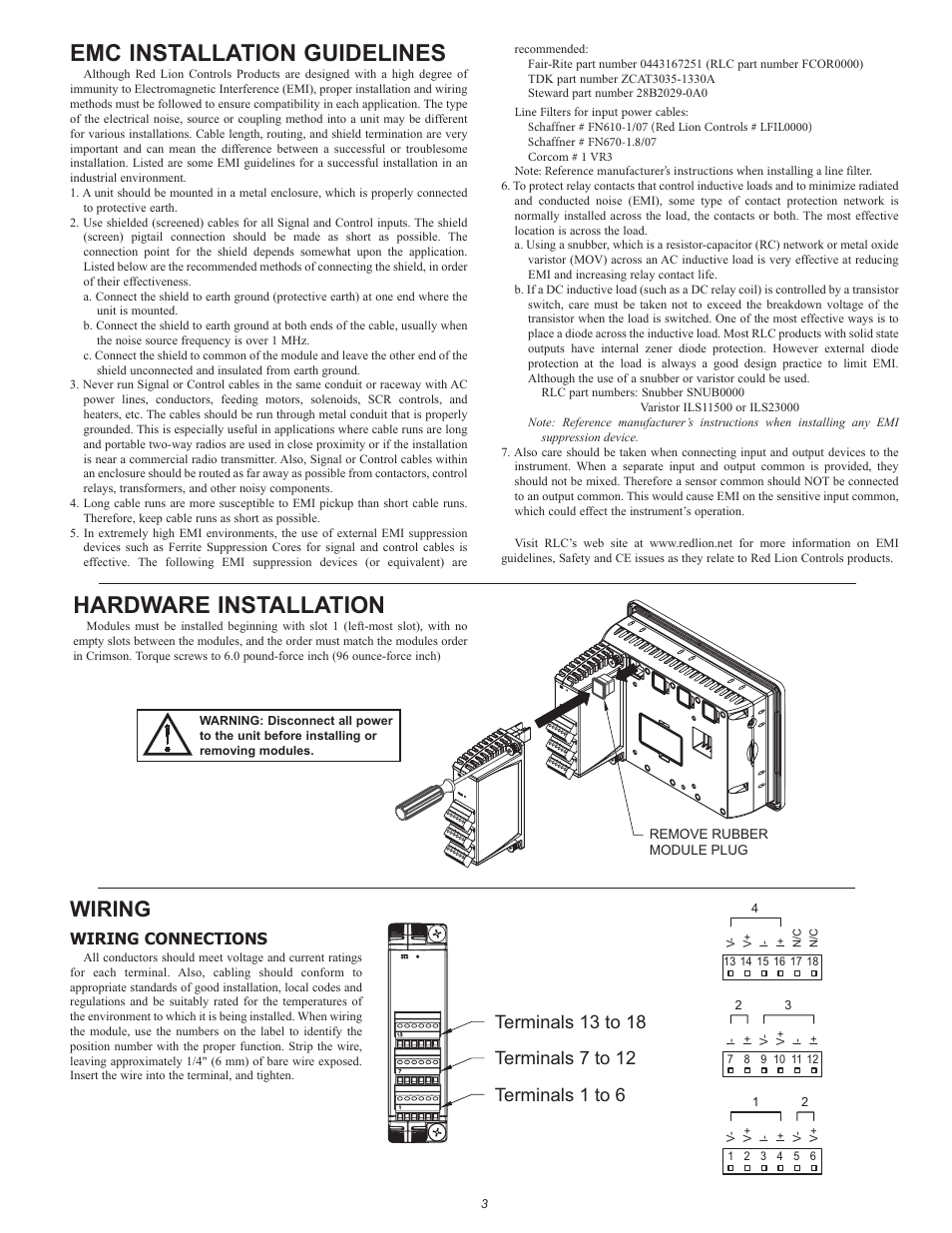

Page 3: Wiring connections
