CHAPTER 12
MAINTENANCE
This chapter consists of maintenance and technical support information.
Changing the Probe
1. Turn off the GM70.
2. Detach the probe as follows (see Figure 18 below):
- Loosen the plastic probe fastener by unscrewing it about 5 turns.
- Take a firm hold from the base of the probe and pull strongly
until the probe comes loose.
3. Insert a new probe to the handle as deep as possible. Turn the probe
inside the handle until you feel that a step in the probe connector
snaps into the groove of the probe handle connector and locks the
probe.
4. Tighten the probe fastener.
5. Turn on the GM70.
0505-238

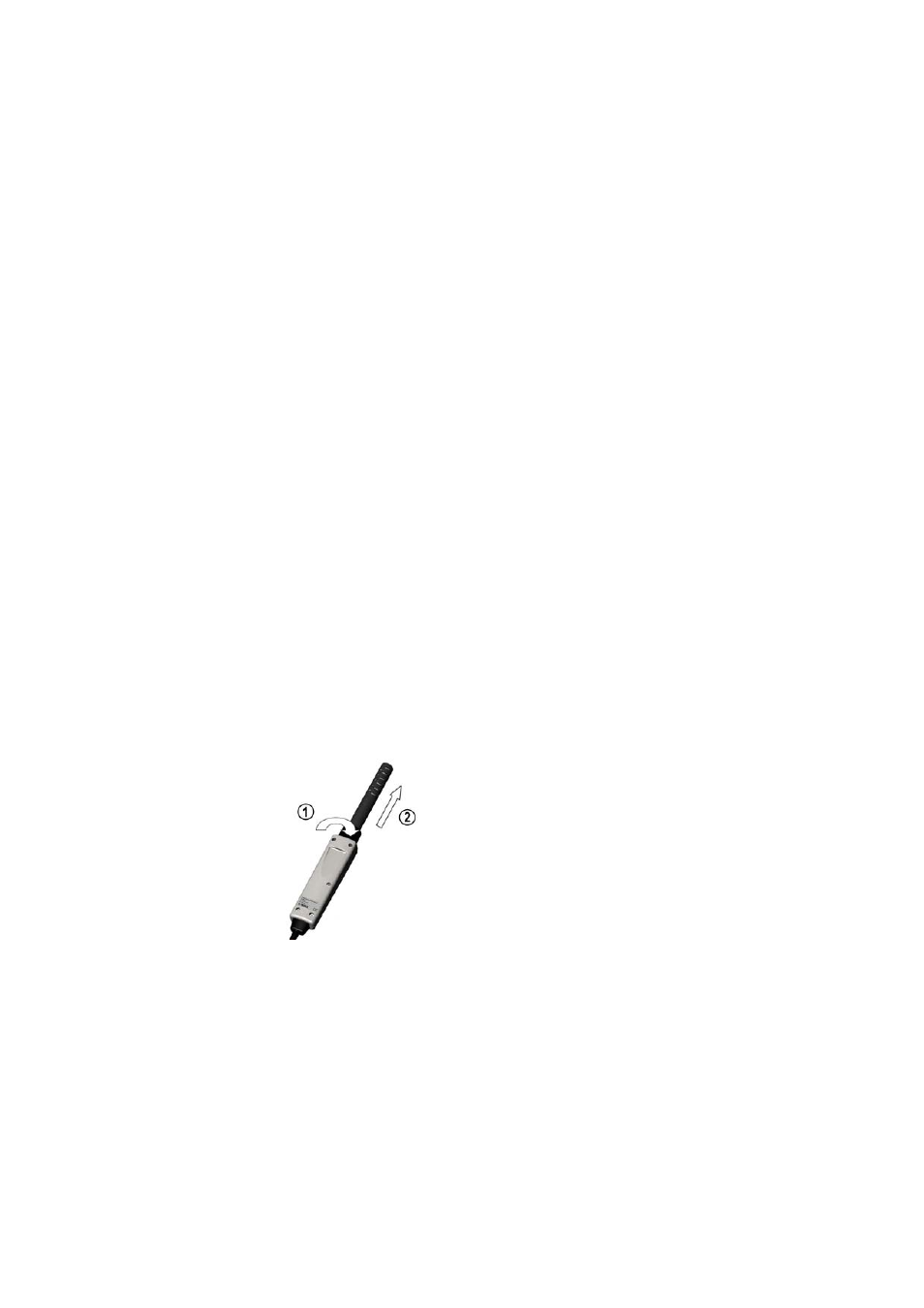

Figure 18 Detaching the Probe
The following refers to Figure 18 above:
1 = Unscrew the probe fastener (about 5 turns).
2 = Pull the probe out firmly.
