Press down and hold the POWER ON/OFF button (1) until the
indicator turns on/off.
Press the SHORTCUT buttons (2) to activate the function above the
button.
Press any of the ARROW buttons (3) to open the path for the
MENUS . In the MENUS you can navigate with the ARROW buttons.
Basic Display
0505-225

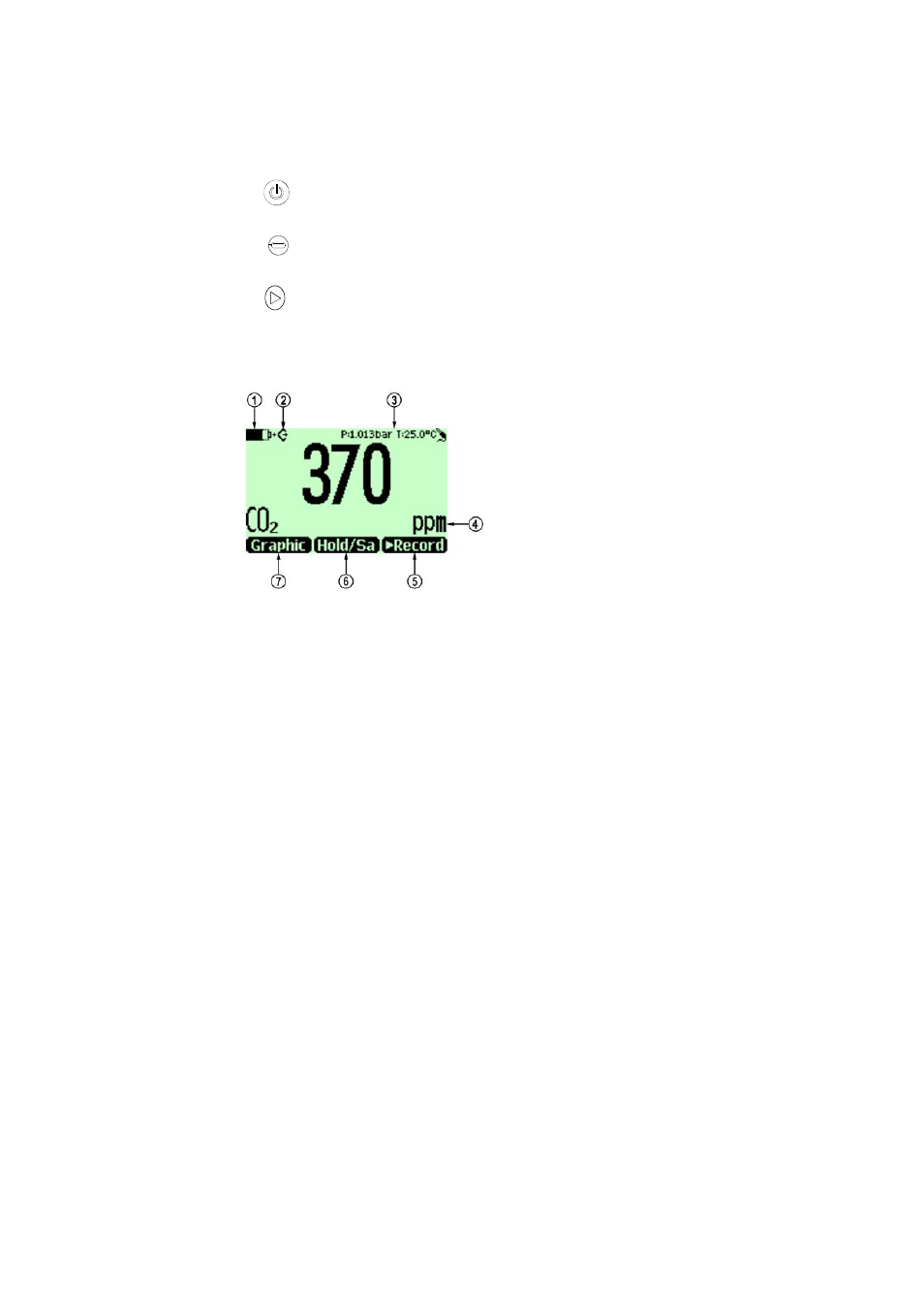

Figure 5 Basic Display
1. Selected unit, ppm or %.
2. Shortcut button Graphic 1
changes display into the graphical trend
mode.
3. Shortcut button Hold/Sa 1
freezes display and you may save the
reading into the memory.
4. Shortcut button ►Record 1
takes you to the Recording/Viewing menu.
5. State of the battery.
6. Pressure and temperature settings.
7. Symbol which indicates that the GM70 is communicating with a
PC. If the PC cable is not connected this symbol is not shown.
1 Graphic , Hold/Sa and Record -functions above the shortcut buttons are set in
the factory. You can however change them to refer other functions (see
Changing the Shortcut Keys on page 32).
