Chapter 9 ______________________________ Field Checking of Fixed Transmitters

VAISALA __________________________________________________________

43

CHAPTER 9

FIELD CHECKING OF FIXED
TRANSMITTERS

This chapter describes the field checking of fixed transmitters.

Field Checking of the Vaisala GMW115 and
GMD/W20 Series Transmitters (Diffusion
Sampling)

0505-235

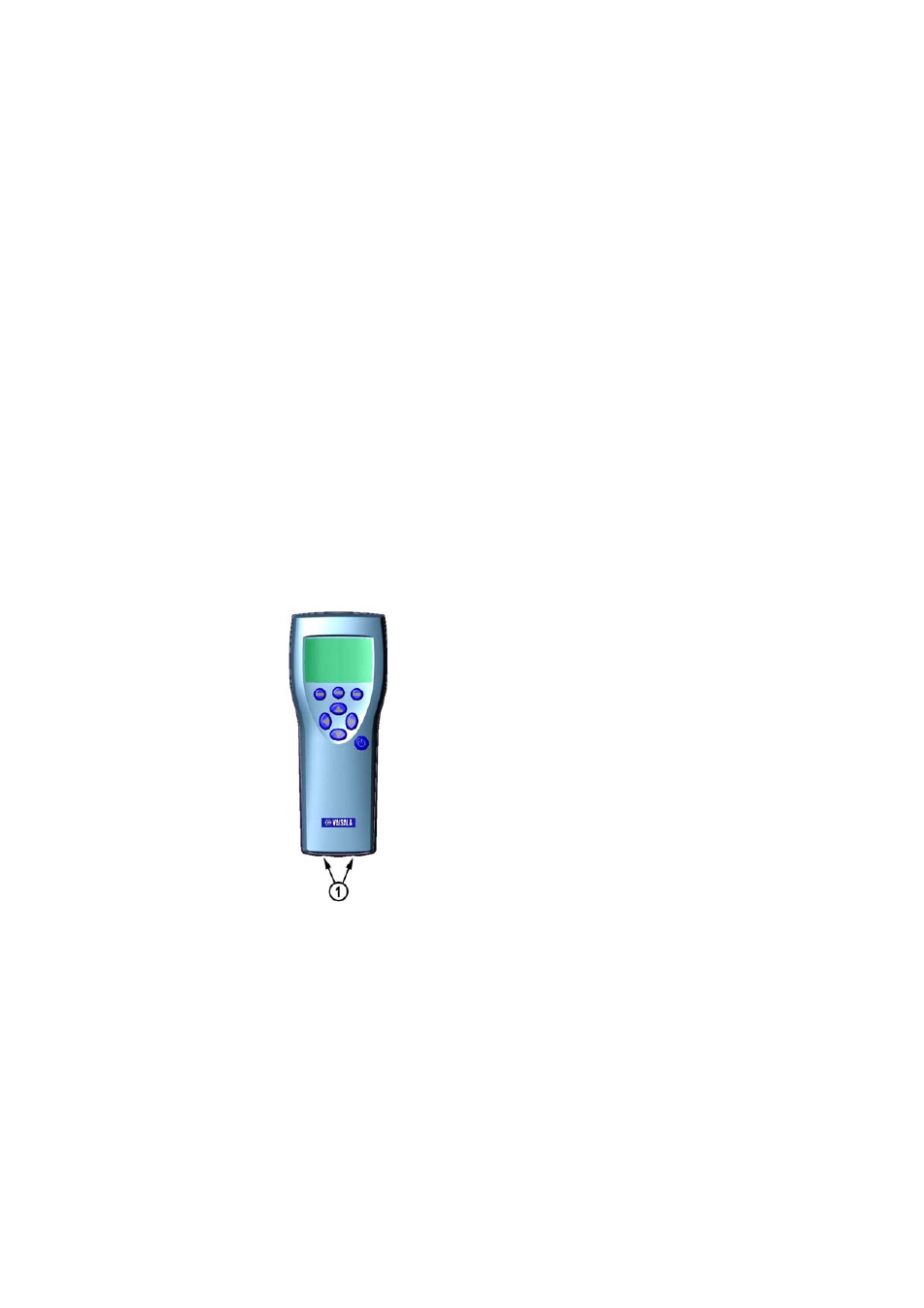

Figure 15

Location of the MI70 Connector Ports

The following number refers to Figure 15 above:

1

=

Connectors for the GMA70 cable

Check the reading of a wall mount or a duct mount transmitter by using
the GM70 as a reference. Both readings can be seen on the GM70's
display simultaneously when using a connecting cable GMA70 (see
section Accessories on page 65).
