Chapter 2 ___________________________________________________________ Product Overview
VAISALA ________________________________________________________________________ 11
Transmitter Parts
NOTE
When the transmitter is delivered, the filter is protected by a yellow
transport protection cap that keeps the sensor dry. The transport
protection cap should be left on the transmitter during storage. Remove
the transport protection cap before installing the transmitter.
Model with G1/2” ISO228/1 Thread
1202-120

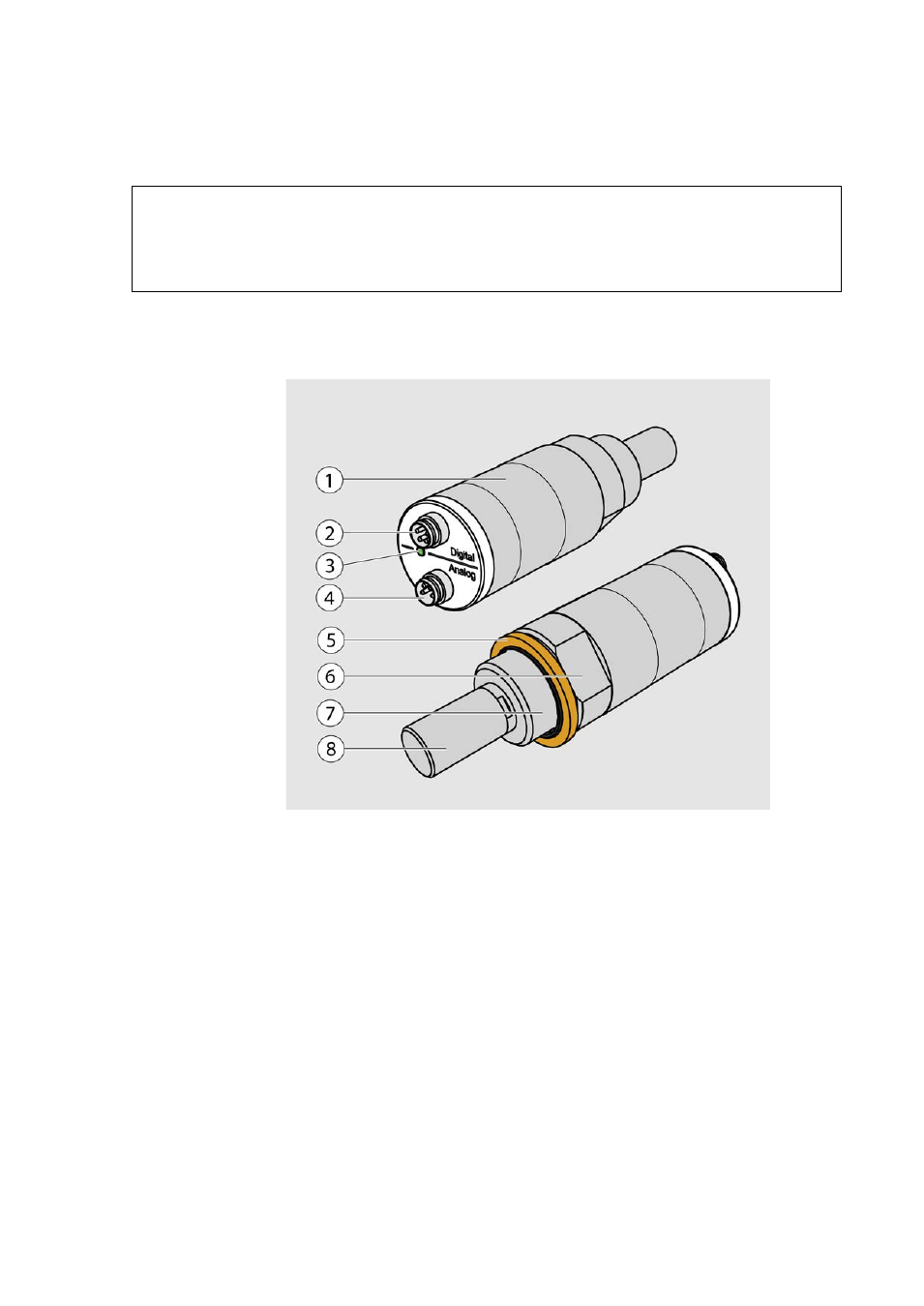

Figure 1
DMT143 Parts – Model with ISO Thread
The following numbers refer to Figure 1 above:
1
=
Transmitter body. Type label is applied here.
2
=
Digital output: non-isolated RS-485.
3
=
Alarm LED.
4
=
Analog output.
5
=
Sealing ring.
Must be used with the G1/2” ISO228/1 connection thread.
6
=
24 mm nut.
7
=
Connection thread: G1/2" ISO228/1.
8
=
DRYCAP
®
sensor protected with sintered filter.
