Removing and Fastening the Probe
Fixed Probe Model
2
1
3
4
Remove and replace the probe as follows:
1. Loosen the plastic probe cover by carefully turning
it counter clockwise.
2. Remove the probe cap and the O-ring.
3. Remove the probe cover. The probe is now exposed.
4. Unscrew the small sleeve that is securing the probe
in place and pull out the probe.
5. Replace the probe and screw the small sleeve back
on, securing the probe tightly in place.
6. Replace the probe cover and screw it tightly back in
place.
7. Replace the O-ring and the probe cap.
0505-181

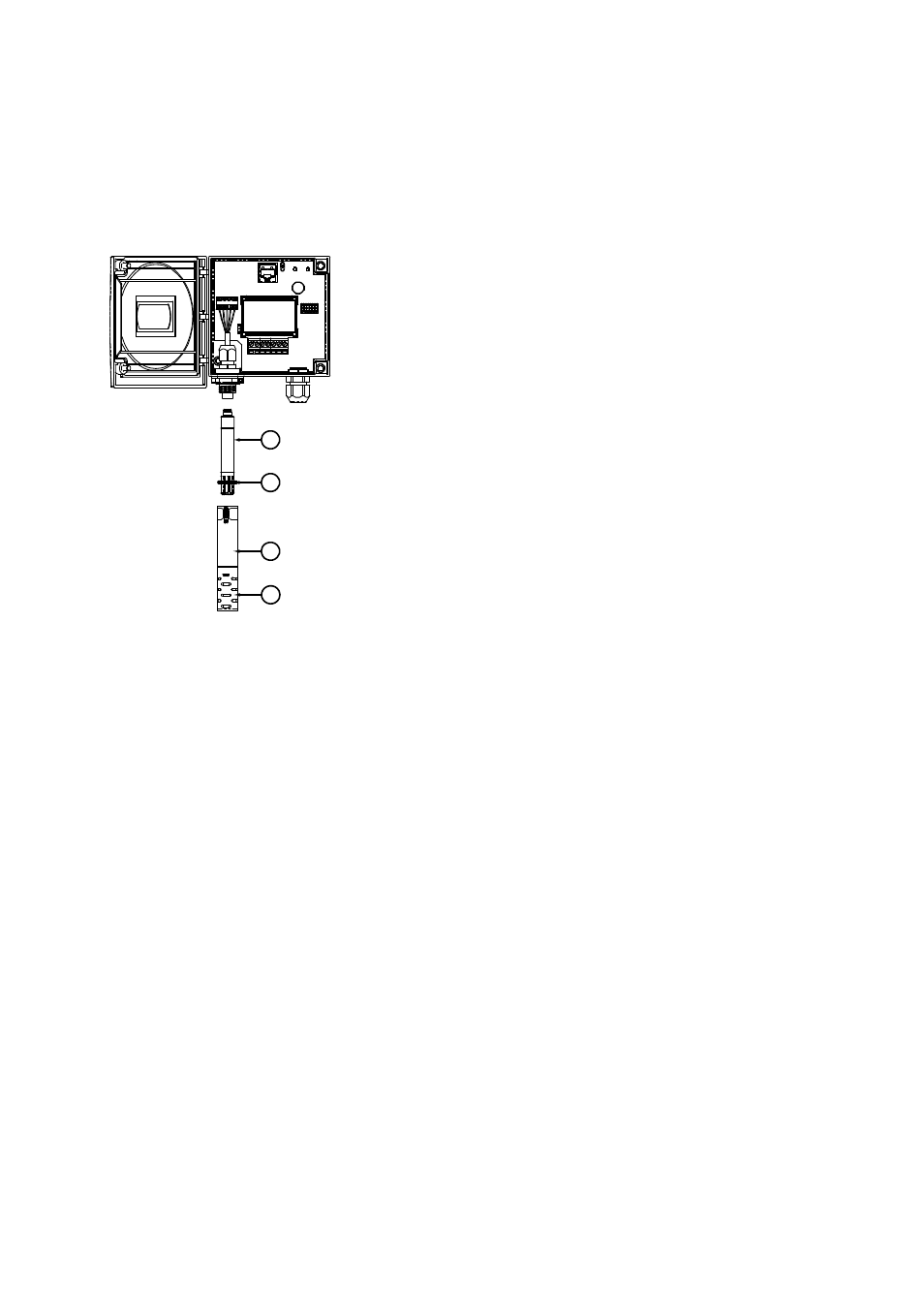

Figure 11 Removing the Humidity Probe (Fixed Probe Model)
The following numbers refer to Figure 11 above:
1 = Probe cap
2 = Probe cover
3 = O-ring
4 = HMP100
probe
