Chapter 3 _______________________________________________________________ Installation

VAISALA _______________________________________________________________________ 21

Drilling Instructions for Duct Installation Kit

42

1

2

3

Ш24

Ш3.

2

0505-178

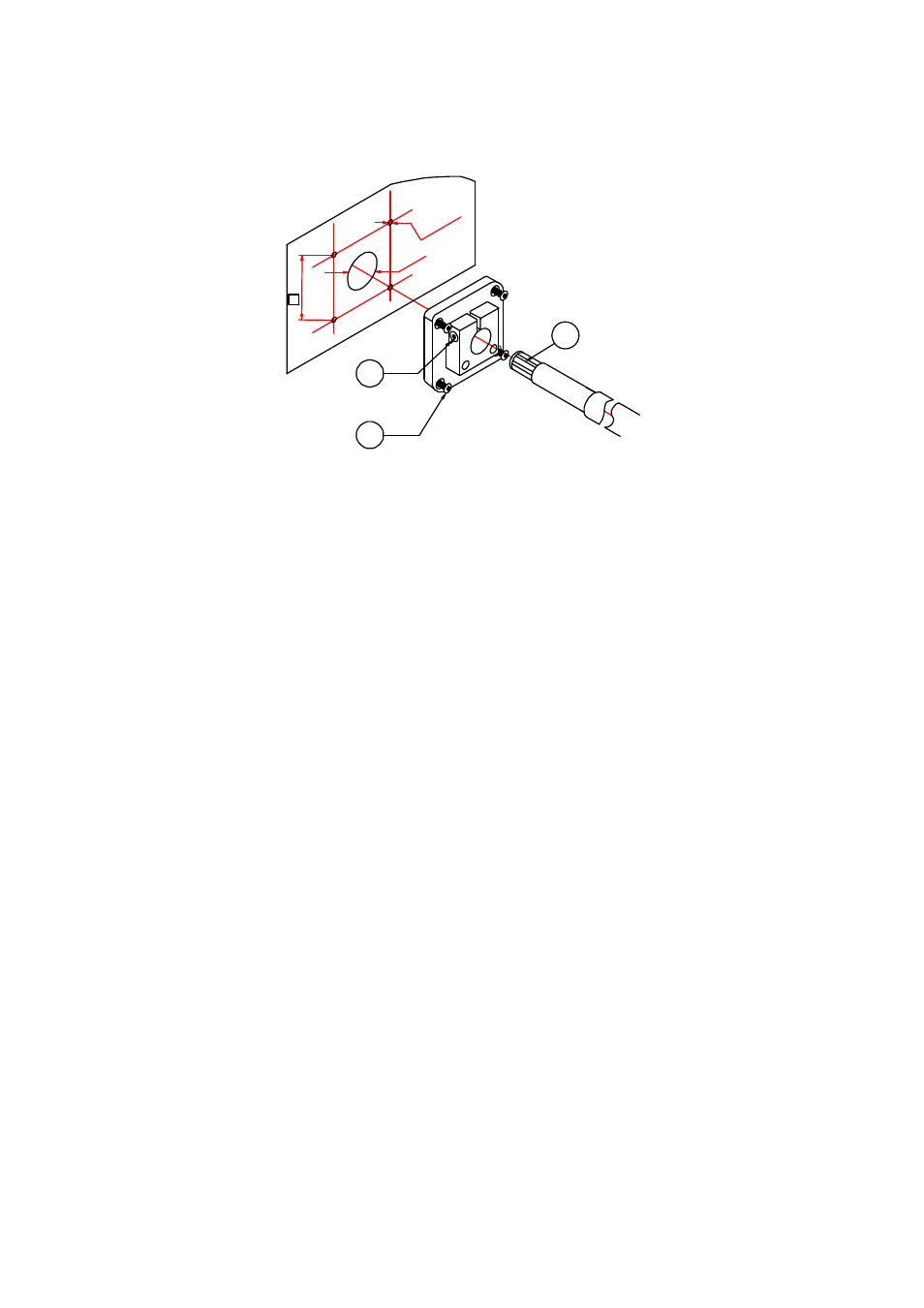

Figure 8

Drilling Instructions

The following numbers refer to Figure 8 above:

1 =

Mounting

screw

2 =

Tension

screw

3

=

HMP100 assembled in duct installation kit plastic pipe

Drill the holes for the duct installation kit as follows:

1.

Use a 24-mm drill bit to drill a hole to the duct wall for the
humidity probe.

2.

Drill holes for the duct installation kit mounting screws around the
hole in a square arrangement, 42 mm apart from each other. Use a
3.2-mm drill bit to drill the holes for the mounting screws (four
ST4.2×16-C-Z DIN 7981 screws).
