1. Attach the aluminum plate to the wall.
2. Attach the plastic wall assembly plate (provided) to the aluminum
plate with two screws.
3. Press the transmitter down so that it slides along the rails of the
wall assembly plate.
0505-339

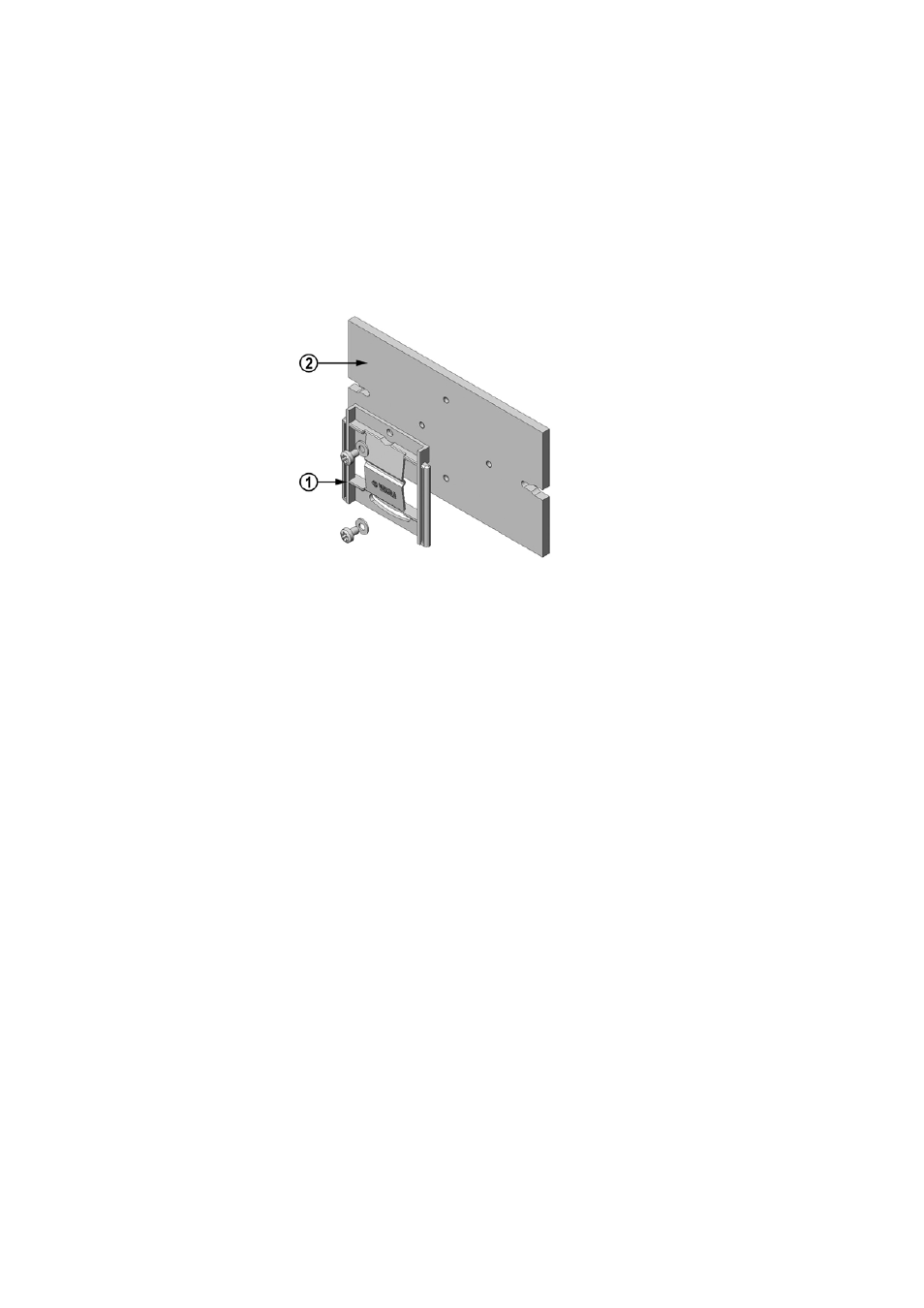

Figure 3 Plastic Wall Assembly Plate with Aluminum
Installation Plate
The following numbers refer to Figure 3 above:
1 = Plastic wall assembly plate (provided) (spare part no.
GM45160)
2 = Aluminum wall installation plate (optional accessory,
see order form; spare part no. DRW010712)
