Probe Assembly with Duct Installation Kit
2
1
3
0505-177

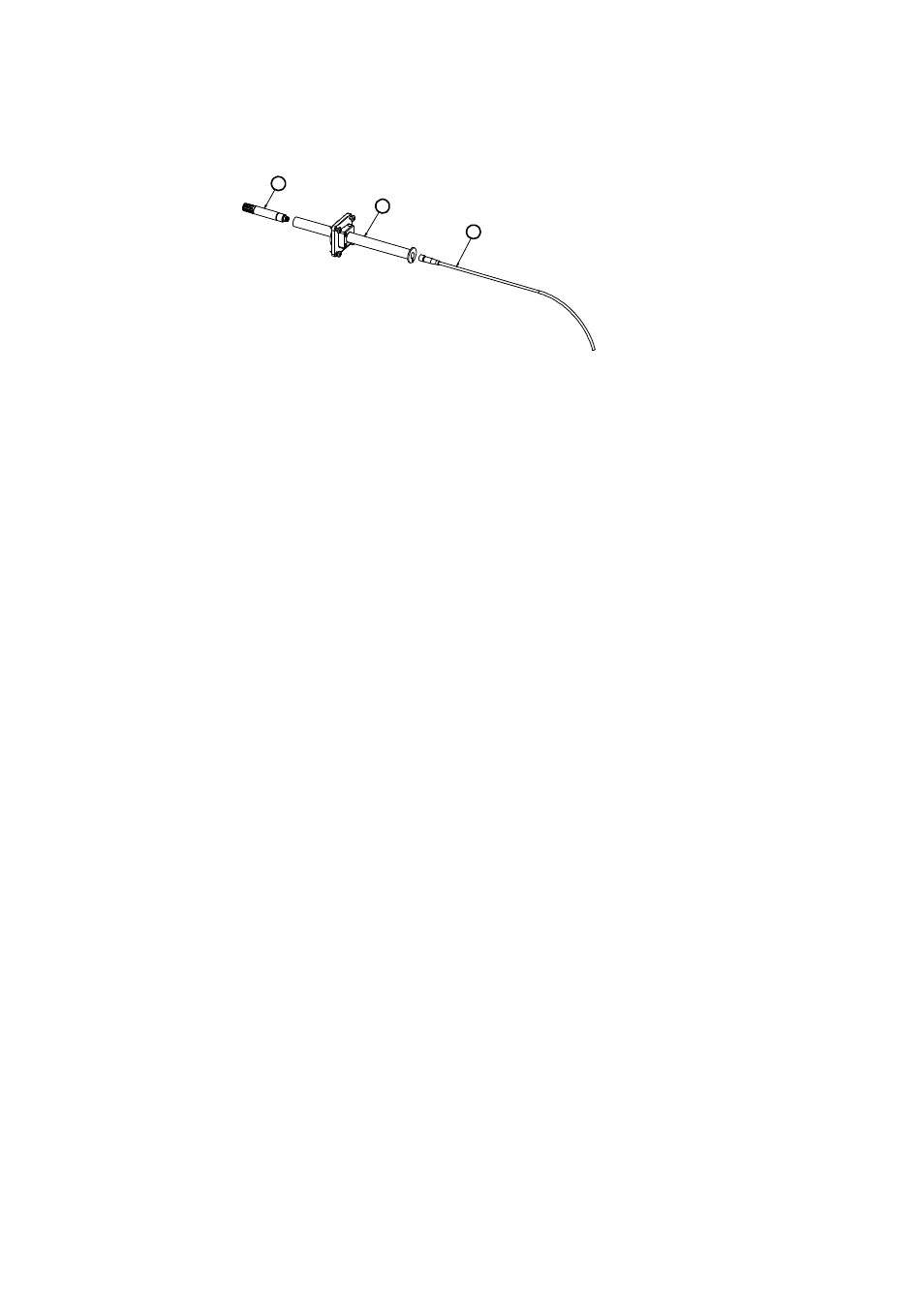

Figure 7 Assembly of the Humidity Probe with the Duct
Installation Kit
The following numbers refer to Figure 7 above:
1 = HMP100
2 = Duct installation kit
3 = Probe cable
1. Slide the probe cable through the duct installation kit plastic pipe.
2. Attach the probe cable to the HMP100 Humidity Probe.
3. Attach probe assembly to the duct.
