Chapter 3 _______________________________________________________________ Installation
VAISALA _______________________________________________________________________ 17
Installation with Rain Shield
The installation kit with rain shield includes a metal mounting plate and
a rain shield for the transmitter. Vaisala order code: 215109.
0505-340

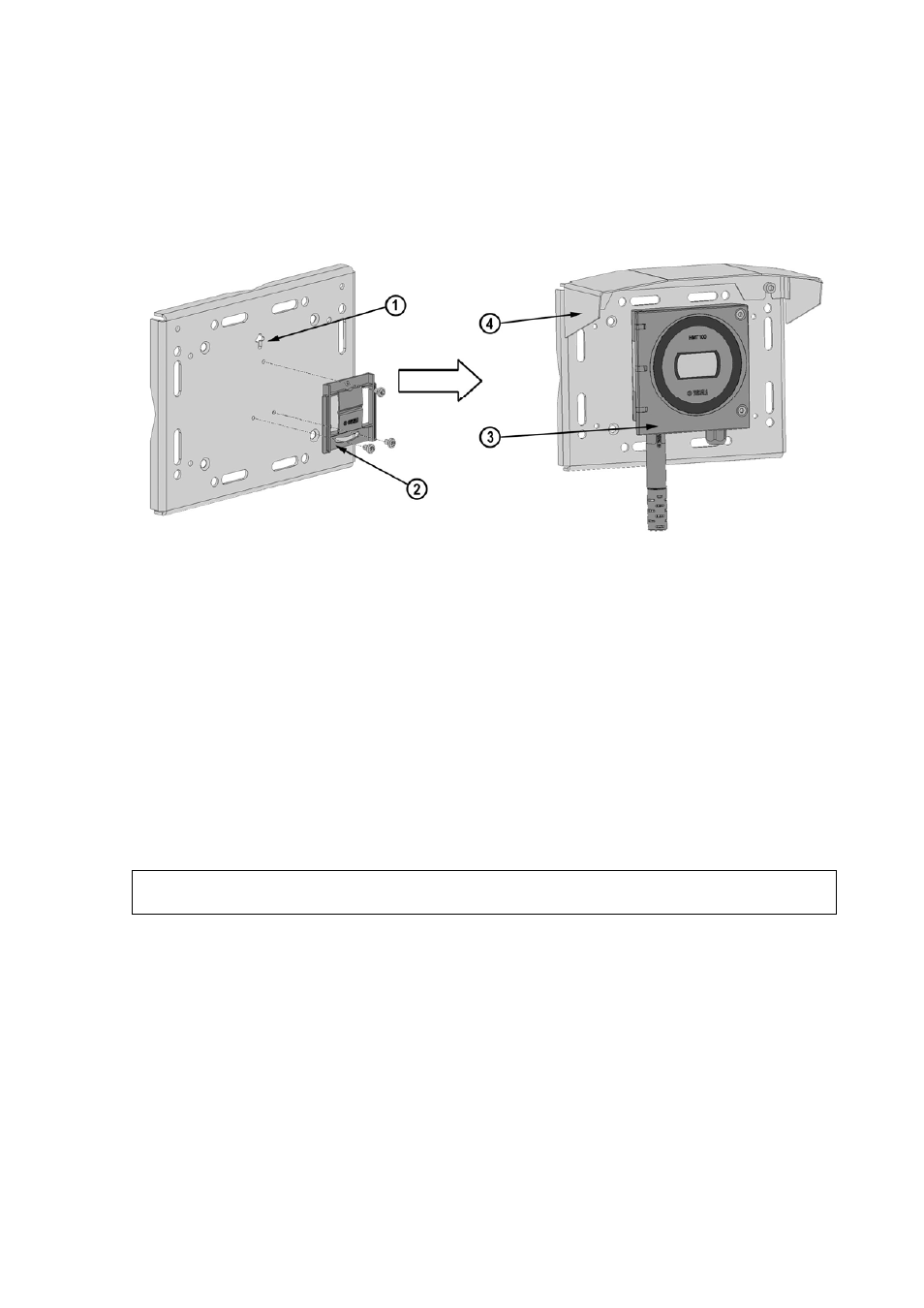

Figure 4
Installation with Rain Shield (Spare Part No. 215109)
1.
Fasten the metal mounting plate to the wall or pole with screws
(see Figure 4 above). Note the arrow on the mounting plate. Attach
the mounting plate with the arrow pointing upwards.
2.
Fasten the plastic wall assembly plate (provided) to the metal
mounting plate with three screws.
3.
Fasten HMT100 Humidity and Temperature Transmitter to the wall
assembly plate by pressing the transmitter down so that it slides
along the rails of the mounting plate.
4.
Fasten the rain shield to the metal mounting plate with two (M6)
mounting screws.
NOTE
Remove the rain shield before taking out the HMT100.
