Figure 31: Tape Measure in slot
for North East Anchor
UTDUK
(towers)
60 o

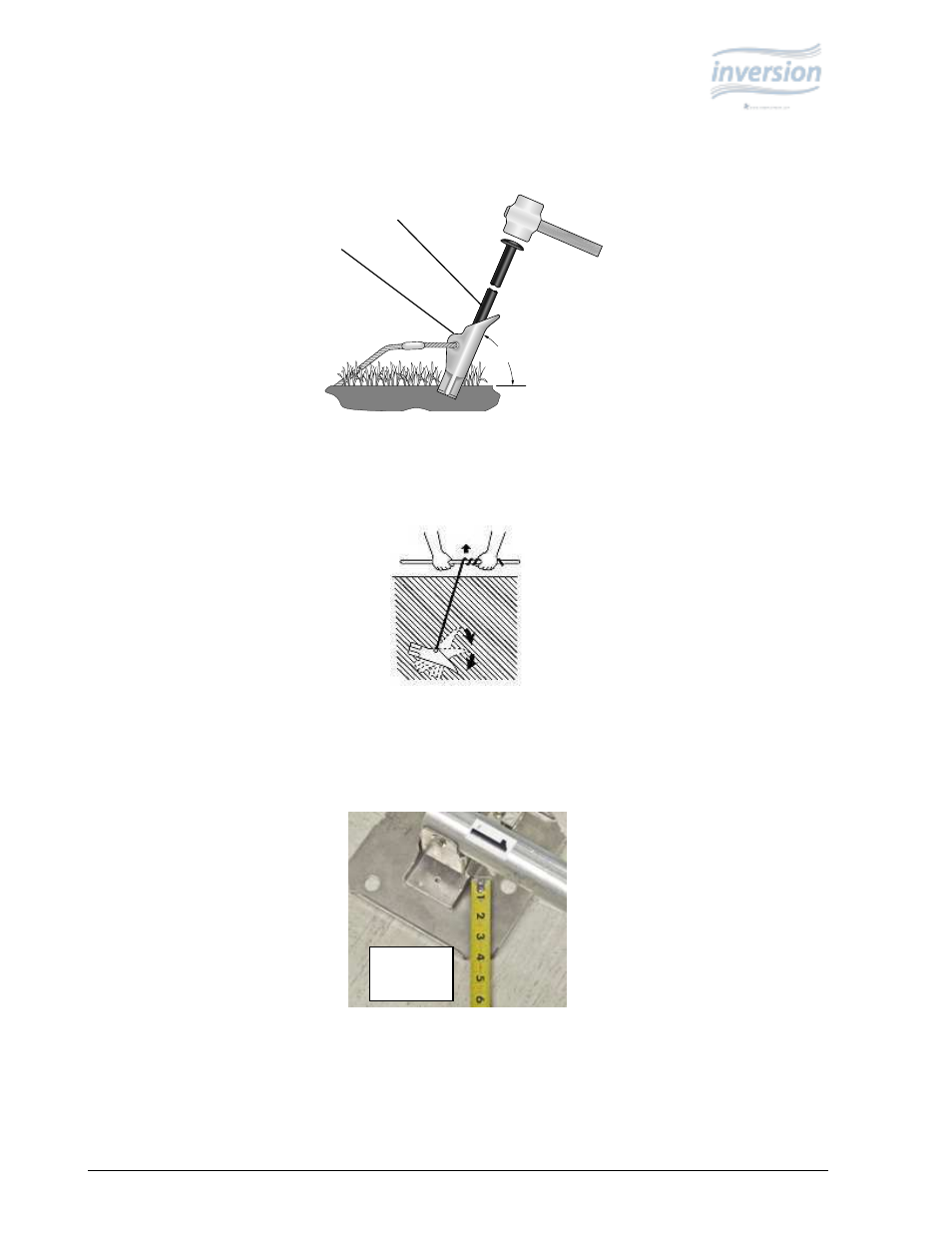

2. At 20 feet, install the duckbill anchor with the supplied drive rod. The anchor needs to be driven into the ground
at a 45° angle (see Figure 29). Drive the anchor into the soil until the loop or metal ring is approximately 4
inches above the ground.
3.
With a rod through the loop or metal ring, pull up on the cable or threaded rod until the anchor rotates and locks
(see Figure 30).
4. Fill-in the hole around the cable or threaded rod with loose dirt and tap firm.
5.
Repeat process for the northeast (see Figure 31) and northwest anchors.
Figure 30: Locking Anchor
NE
Figure 29: Anchor Driven into Ground at 45° Angle.
45 º
Drive Bar
Duckbill Anchor
