Remove the guy collar from the top guy kit (pn. 21661); see Figure 23.
15.
Insert the ball ends of the guy cable into the guy ring, and then slide the ring down the mast to the collar (see
Figure 24).
2.2.2. Mounting Top Temperature Sensor and Wind Set Sensor
1. Mount the top Temperature Sensor (pn. 21414) 10 inches from the top of Mast Section 5. Place the provided U-
bolt in the side holes of the radiation shield and tighten the nuts.

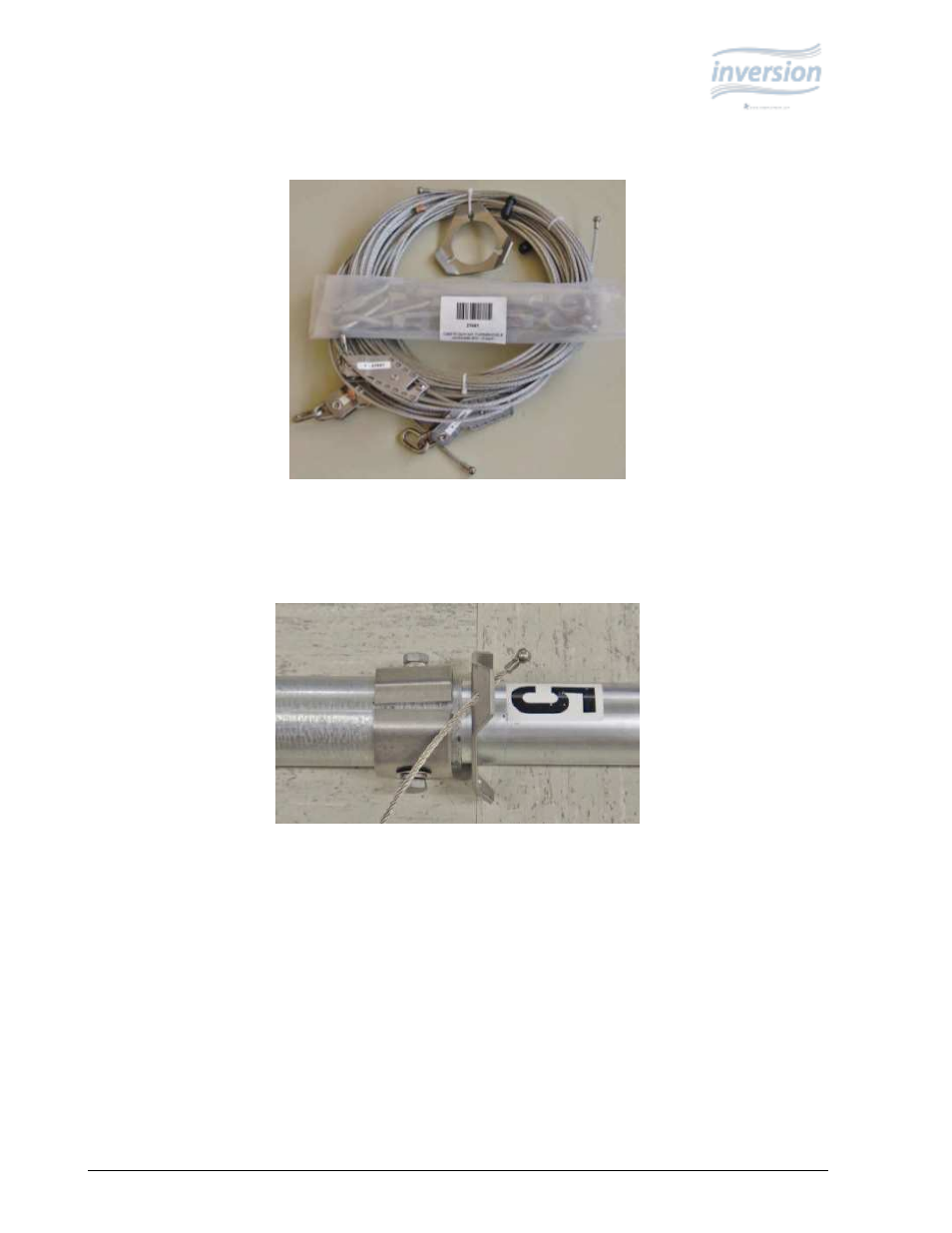

Figure 23: 21661 Guy Kit
Figure 24: Mast Section 5 and Guy Ring/Collar Assembly
