7

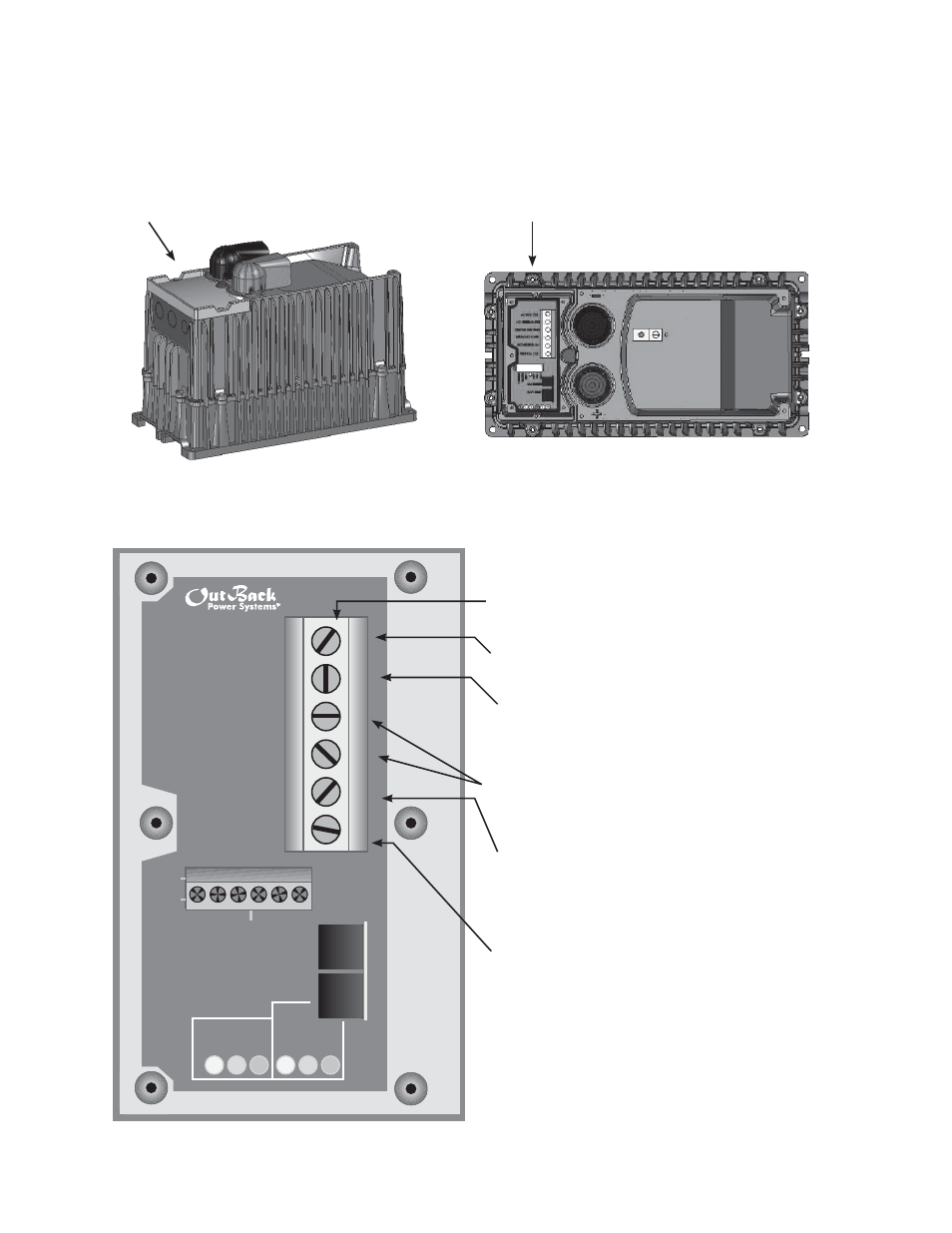

AC WIRING ORIGINATION

Lexan cover protects AC Wiring

Compartment Board

AC WIRING COMPARTMENT BOARD

AC HOT (PHASE) OUT supplies power to the

loads.

AC NEUTRAL OUT acts as neutral leg for loads

supplied by the FX and is common with the AC
NEUTRAL IN.

CHASSIS GROUND connections are common

and act as grounds for both the incoming and
outgoing AC circuits.

AC NEUTRAL IN acts as the neutral leg for AC

power supplied by a generator to the FX and is
common with the AC NEUTRAL OUT.

AC HOT (PHASE) IN connects incoming AC from

the a generator to the FX through an internal AC
transfer relay. This AC is used to run loads and
recharge batteries.

NOTE:

16.0 mm

2

(

6 AWG) is the largest wire

size the AC Wiring Compartment Board can
accommodate.

AC HOT OUT

AC NEUTRAL OUT

CHASSIS GROUND/PE

CHASSIS GROUND/PE

AC NEUTRAL IN

AC HOT IN

BATTERY

FULL

OK

LOW

STATUS

INVERTER

AC IN

ERROR

BATTERY TEMP

MATE/HUB

INVERTER ON/OFF

INVERTER

ON/OFF

AUX+

AUX-

XCT-

XCT+

AC Terminal Block secures AC

connections to the FX using set screws

AC Wiring Board
