8

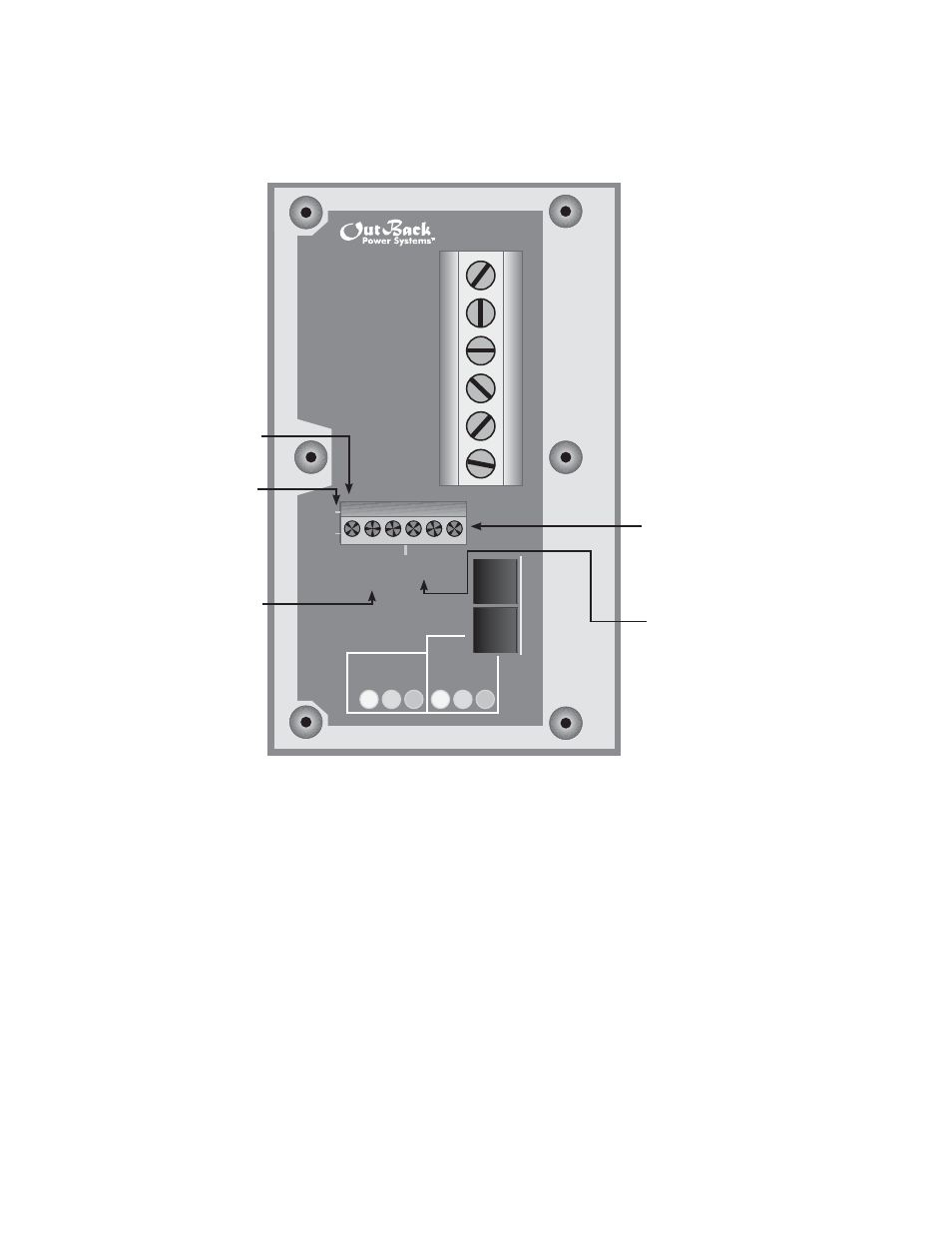

LOW VOLTAGE TERMINALS

Control Terminal

Wiring Block

NOTE: Keep Control

Wiring Terminal Block

screws tight and the

block itself secured tightly

to AC Board. Otherwise,

the FX can malfunction.

The Terminal Block can be

unplugged for easier wire

installation and removal/

reinstallation of the FX.

AUX OUTPUT
(AUX+/AUX-):

12VDC

at 0.7 amps (8.4 watts)
maximum is available at
these terminals; the AUX’s
default is to drive cooling
fans or the Turbo Fan.

XCT+/XCT- are non-
operational terminals (do
not connect).

INVERTER ON/OFF:

Allows for manual
switch to control the
FX (default operation
is “ON”); controlled by
the MATE when the
jumper is present.

Jumper

AC HOT OUT

AC NEUTRAL OUT

CHASSIS GROUND/PE

CHASSIS GROUND/PE

AC NEUTRAL IN

AC HOT IN

BATTERY

FULL

OK

LOW

STATUS

INVERTER

AC IN

ERROR

BATTERY TEMP

MATE/HUB

INVERTER ON/OFF

INVERTER

ON/OFF

AUX+

AUX-

XCT-

XCT+
