FX PARTS AND ACCESSORIES

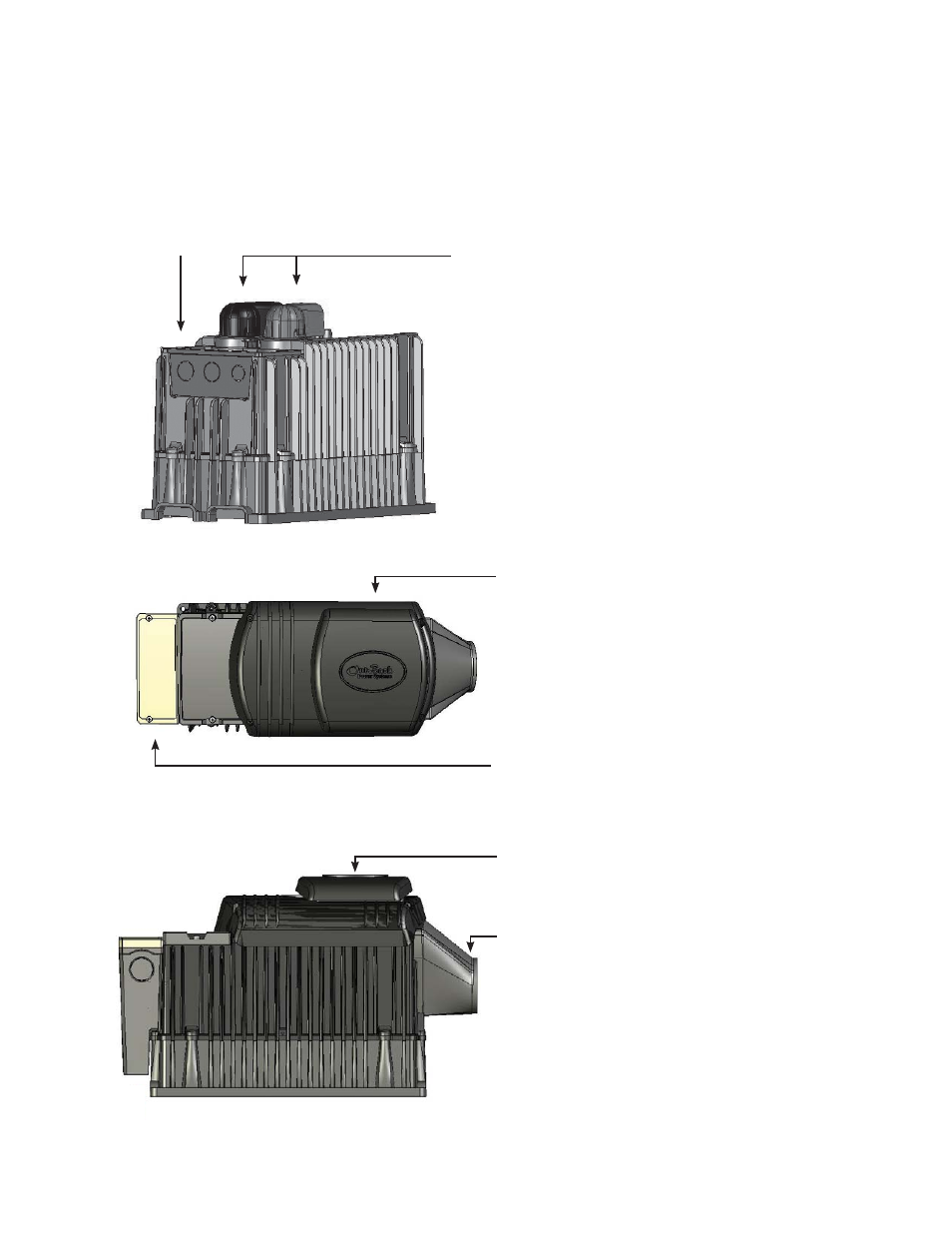

BATTERY TERMINAL COVERS

• The caps are made of stiff plastic with a snap-on

design; remove them carefully using a fl at-blade
screwdriver inserted into the slots on the sides of
each cover.

• DC conduit may be required for exposed

installations.

• The DCA cover option (see below) allows conduit

connection.

• Always keep the battery terminal covers installed.

AC CONDUIT PLATE*

• AC conduit connects to the AC

Conduit Plate for installations which
do not utilize an optional ACA.

DCA (DC CONDUIT ADAPTER)

• Allows the connection of two-inch TSC (Trade

Size Conduit) to the FX

• Connects to OutBack’s FLEXware enclosures

DCC (DC COMPARTMENT COVER)

• Covers the DC terminal area and provides

space to mount other components such as a
DC current shunt

• Can be used with or without the DCA)
• This is an optional accessory.

FX-ACA (AC CONDUIT ADAPTER)

• Extends the AC wiring compartment
• Connects to OutBack’s FLEXware enclosures
• Protects and secures fl exible cable with strain

relief

• Houses the OutBack Surge Protector (FW-SP)
• Knockouts are intended for cables/strain relief
• This is an optional accessory.

TURBO FAN COVER

Included in place of a DCC on sealed FXs
