21
LOW-VOLTAGE WIRING
A switch can be wired to the INVERTER
and ON/OFF terminals to manually
control the FX
XCT+/XCT- are not operational
12 VDC at 0.7 amps (8.4 w) is available at
the AUX+/AUX- terminals
This six-position terminal block can be
unplugged to make wiring easier and to
simplify the removal and reinstallation of an FX.
It must be securely and completely plugged
in for proper FX functioning. Otherwise,
operational errors can occur.
INVERTER and ON/OFF
• Replacing the pre-installed jumper connecting the ON/OFF terminals with a switch allows manual control of
the FX.
• Without an ON/OFF switch, the inverter(s) will always be ON due to a factory-installed, removable jumper.
• Cycling the switch again returns the inverter to the ON mode.

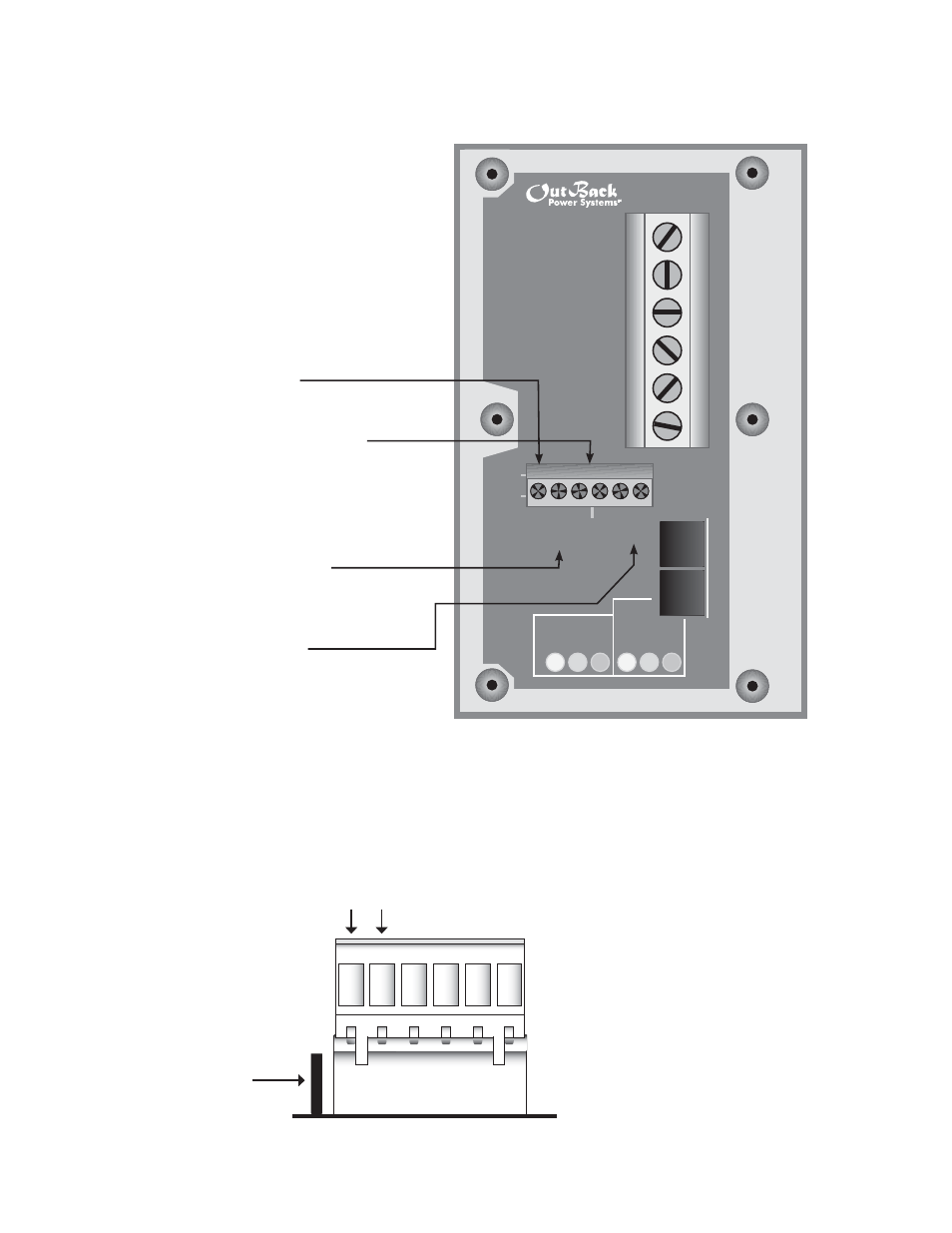

Control Wiring Terminal Block,
side view
INVERTER ON/OFF
Jumper
AC HOT OUT
AC NEUTRAL OUT
CHASSIS GROUND/PE
CHASSIS GROUND/PE
AC NEUTRAL IN
AC HOT IN
BATTERY
FULL OK LOW
STATUS
INVERTER AC IN ERROR
BATTERY TEMP
MATE/HUB
INVERTER ON/OFF
INVERTER
ON/OFF
AUX+ AUX- XCT- XCT+
Control Wiring Terminal Block
