29

GENERATOR AUTO START

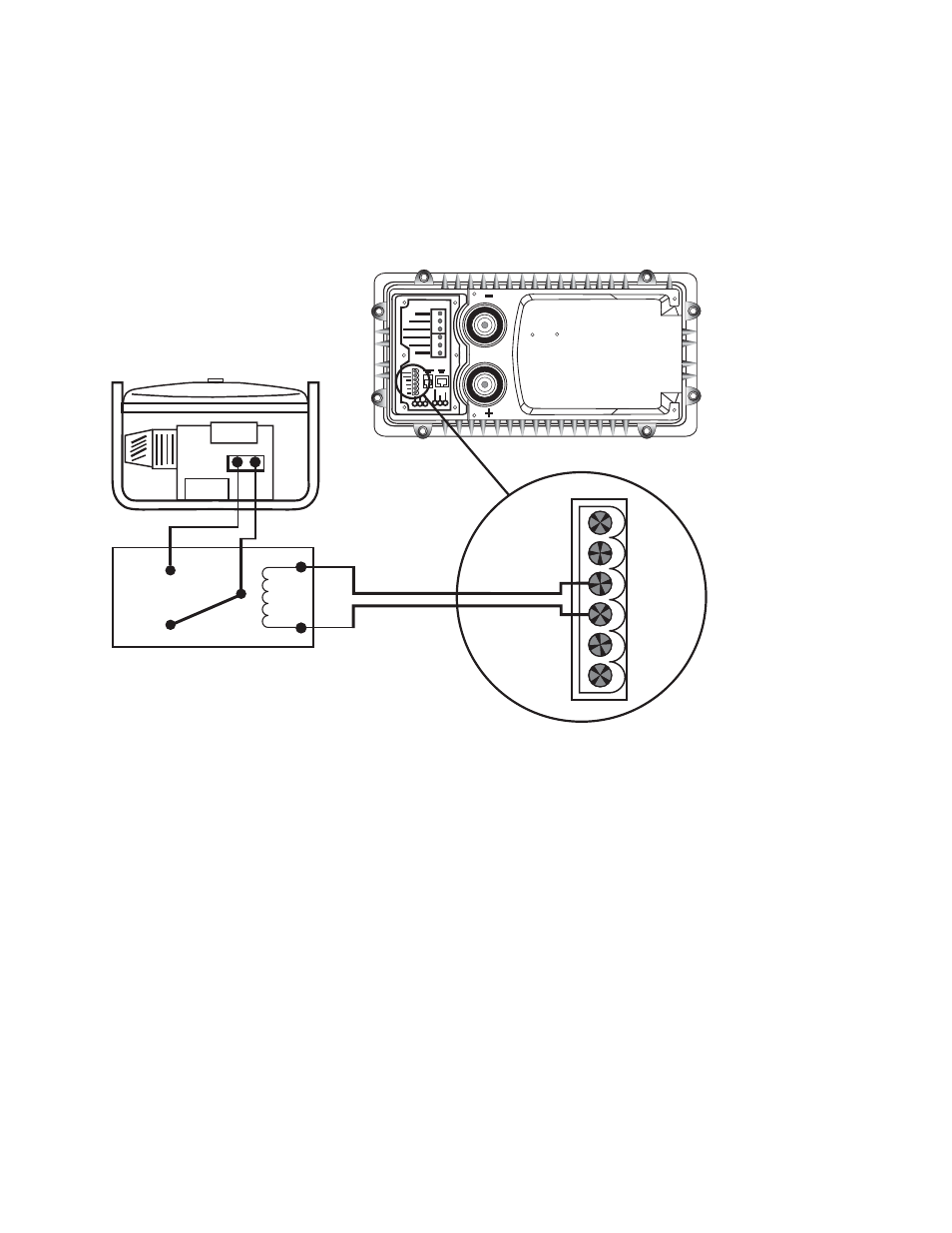

The following schematic shows how to hook up a relay that interfaces with the two-wire start

generator. Three-wire start generators require an adapter like the Atkinson GSCM available at

www.atkinsonelectronics.com.

Most 12V relays will work for generator starting.

Select one between 5 and 30 amp contacts. Relays

with gold-plated contacts are recommended.

12V RELAY

C

OIL

NO

NC

COM

INVERTER

ON/OFF

AUX +

AUX -

XCT -

XCT +

TWO WIRE START
GENERATOR
HOOK UP

GENERATOR
