13

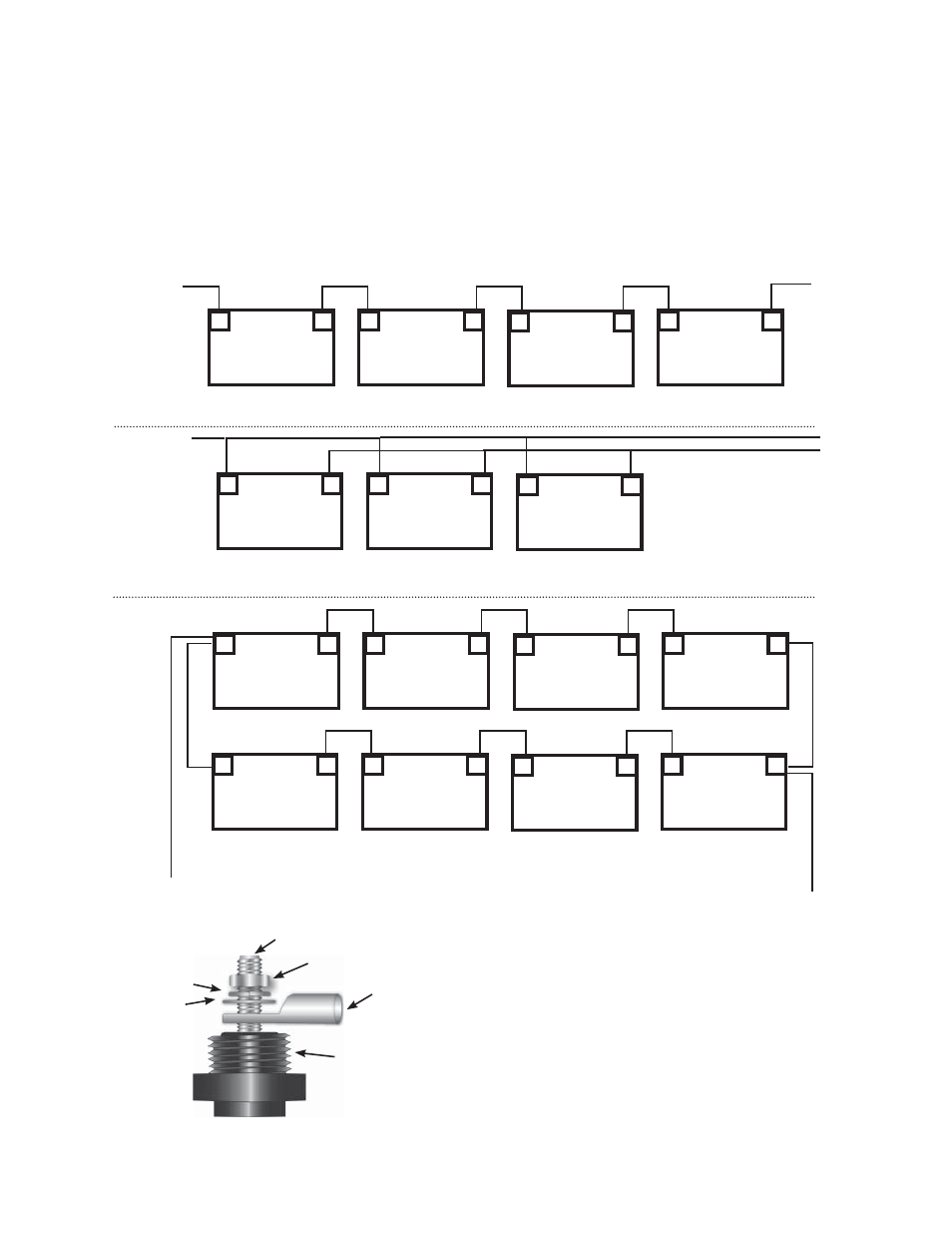

Battery Wiring Examples

• Never install extra washers between the

terminal mounting surface and the battery
cable lug—the connection must be direct and
secure.

• Always install breakers or fuses within the

positive battery cable.

• Torque 2/0, (67.4 mm

2

) 4/0 (107 mm

2

), or larger

code-approved cables rated 75°C or higher to
60-inch pounds/6.77Nm.

In renewable energy systems, batteries are connected to each other in one of three ways:

• Series (voltage increases, amperage stays the same as a single battery)

• Parallel (voltage stays the same as a single battery, amperage increases)

• Series/Parallel (both voltage and amperage increase)

Voltage remains at 12V 200AH + 200AH + 200AH + 200 AH=800 AH

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

12V + 12V + 12V + 12V = 48 V Amp Hours remain at 200

SERIES

P

A

R

ALLEL

SERIES/P

AR

ALLEL

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

+

-

12V/200 Amp Hours

Two strings of batteries in series are connected in parallel. The voltage increases to 48V and the
amp hours increase to 400

Battery Cable Lug

Lock Washer

Flat Washer

Nut

Insulator

Stud
