ADSL2/2+ Router
- 83 -
automatically added by system.
Other MAC Address: The MAC address whose Internet access
time you want to restrict. Enter it manually.
Start Blocking Time (hh:mm) / End Blocking Time (hh:mm):
The time range during which Internet access is blocked.
After configuration is finished, click the “Apply/Save” button and the
MAC address of aa:bb:cc:dd:ee:ff can only access Internet on
Saturday and Sunday.
4.2.10 Quality of Service
Quality of service is the ability to provide different priority to different
applications, users, or dat
performance to a data flow.

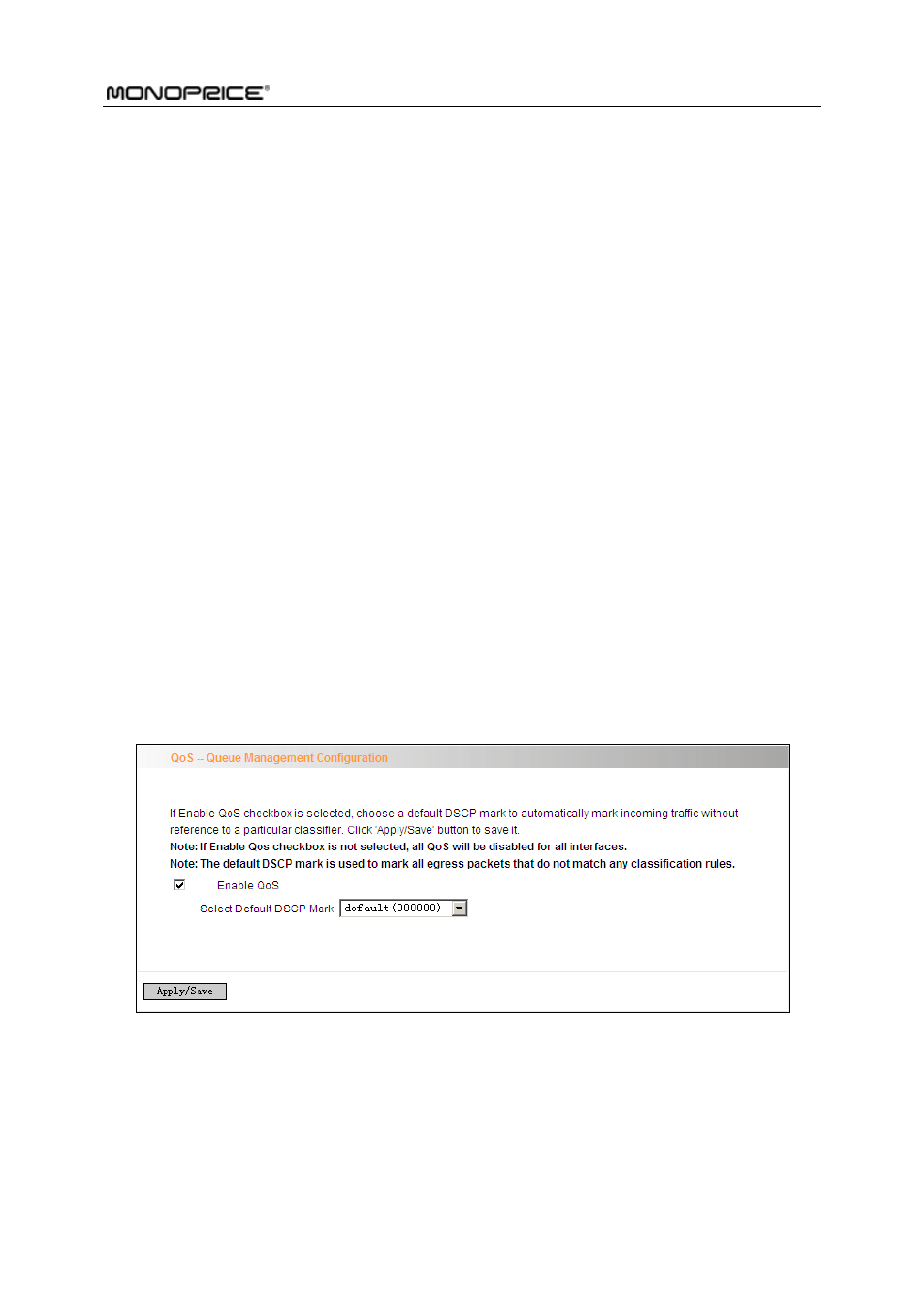

Select the “Advanced Setup”
“Quality of Service” menu to enter the
following scree
n.
Select the “Enable QoS” Checkbox, and select Default DSCP Mark
Value, then, Click 'Save/Apply' to save and activate the rule.
Queue Configuration
