Monoprice PID 8743 Wireless N ADSL2 Modem and Router 802 11N WPS Function 2T2R 300Mbps User Manual
Page 52

ADSL2/2+ Router
- 52 -
that is currently entering the router’s management page to work
as the WAN MAC address of the router.
Dial on Demand: Automatically connects or disconnects Internet
according to the use of the network. It is recommended when
your ISP limits network use time.
Enable PPP Debug Mode: This feature can be enabled only
when supported by your ISP.
Multicast Proxy: Router enables multicast proxy server if this
feature is enabled.
Enter the PPP user name and PPP Password provided by your ISP.
For other options, keep the default values if you are not clear about
them, and then click the “Next” button to display the following screen:

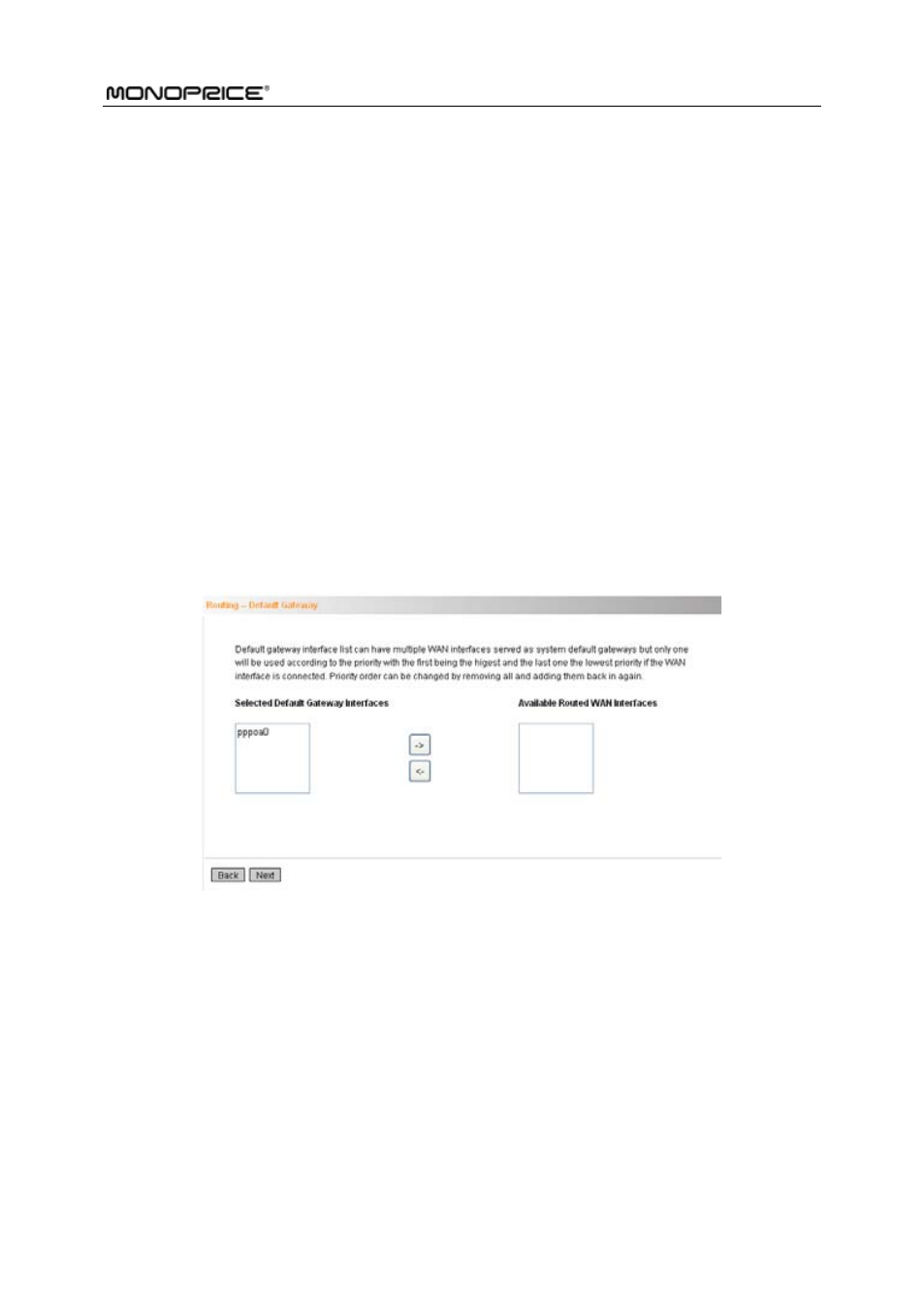

This page allows you to configure the gateway address for WAN
connection. We recommend you to keep the default values and click
the “Next” button to enter the following page:
