ADSL2/2+ Router
- 38 -
4.2.2 WAN Service
1. WAN Configuration in DSL Mode
PPP over Ethernet (PPPoE)

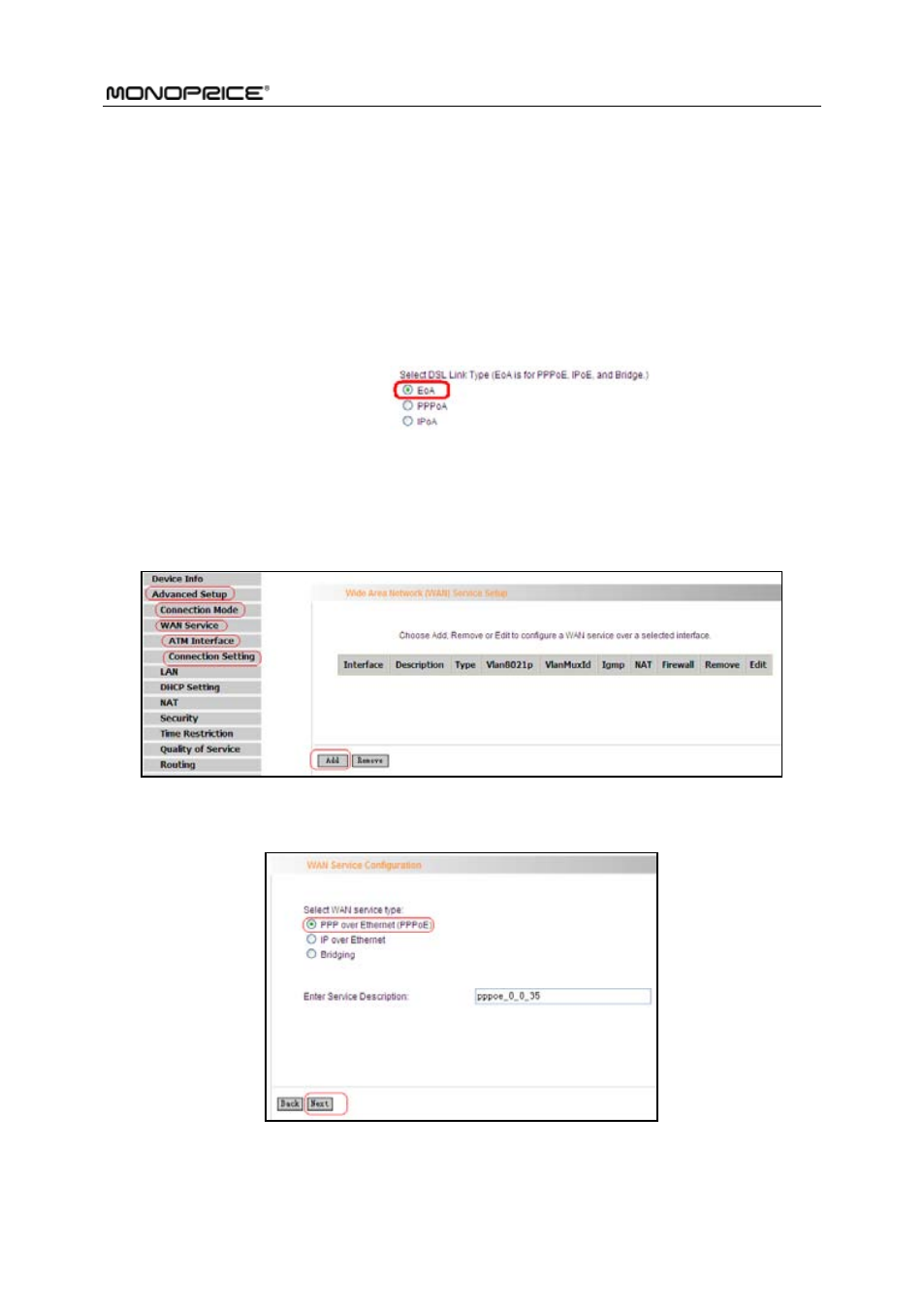

Click “Advanced Setup”—“Connection mode”(Select DSL mode and
click “Apply”)---“WAN Service”---“ATM Interface” (Keep default DSL link
type EOA unchanged,
and click the
“Apply/Save” button. For details, refer to 4.2.1----1) ---“Connection
Setting” to enter WAN service setup interface (page1) and then click
the “Add” button there to select a WAN service type on page 2.
Page 1
