ADSL2/2+ Router
- 23 -
The device provides two Internet access configurations: DSL Uplink
and Ethernet Uplink. If you are using Ethernet Uplink (through network
cable) for Internet access, please click the “Advanced Settings” on top
right corner of the interface to enter the configuration interface and
refer to section 2 of Chapter 4.2.2 WAN Service for configurations.

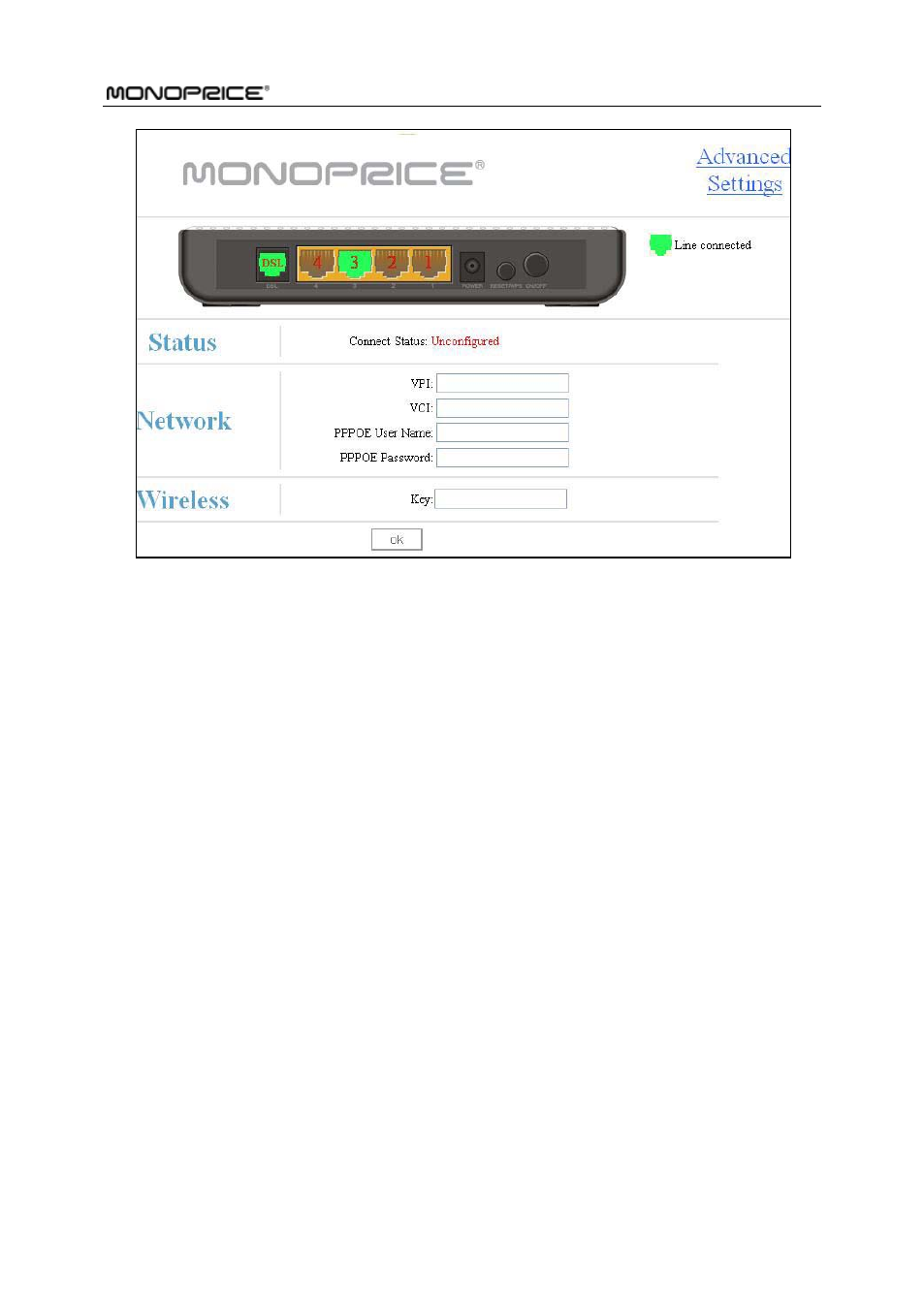

You need to configure the parameters below on this interface:
1. VPI/VCI
2. PPPOE User name
3. PPPOE Password
VPI/VCI: Different areas and ISPs have different VPI/VCI. For the
convenience of its users, the device has integrated many important
VPI/VCI. Therefore, you only need to select your ISP and area and the
