Monoprice PID 8743 Wireless N ADSL2 Modem and Router 802 11N WPS Function 2T2R 300Mbps User Manual
Page 44

ADSL2/2+ Router
- 44 -
button:
Obtain an IP address automatically: WAN port will
automatically obtain an IP address for accessing Internet from the
ISP, if this feature is selected.
Use the following Static IP address: select this feature if your
ISP provides you an IP address.
WAN IP Address: the IP address provided by your ISP for
accessing Internet.
WAN Subnet Mask: the subnet mask address provided by your
ISP for accessing Internet.
WAN gateway IP Address: the gateway IP address provided by
your ISP for accessing Internet.

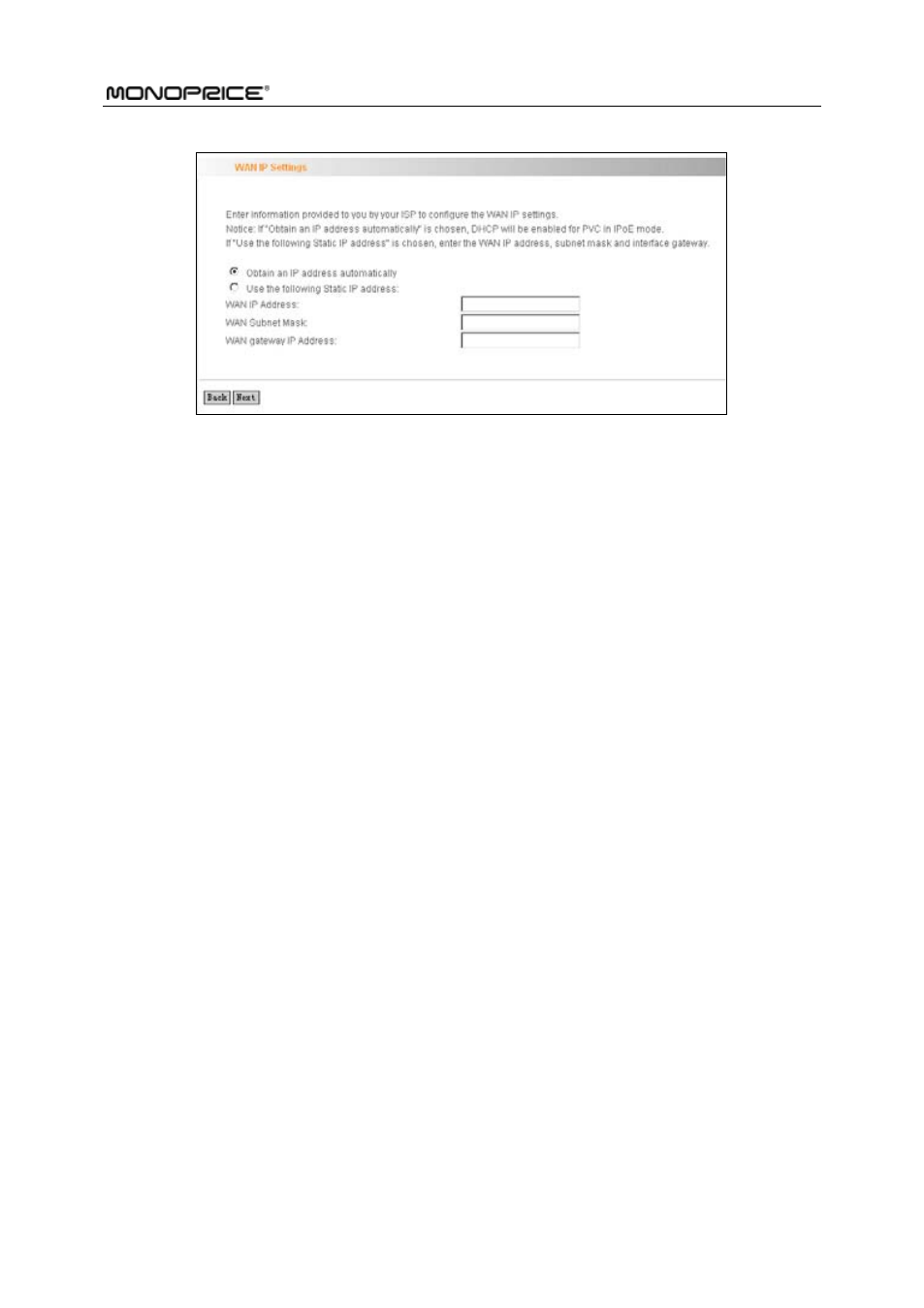

Enter the IP/ subnet mask/gateway IP address provided by your ISP or
select “Obtain an IP address automatically” and click the “Next” button
(on page 1) to enter page 2 below:
