ADSL2/2+ Router
- 104 -

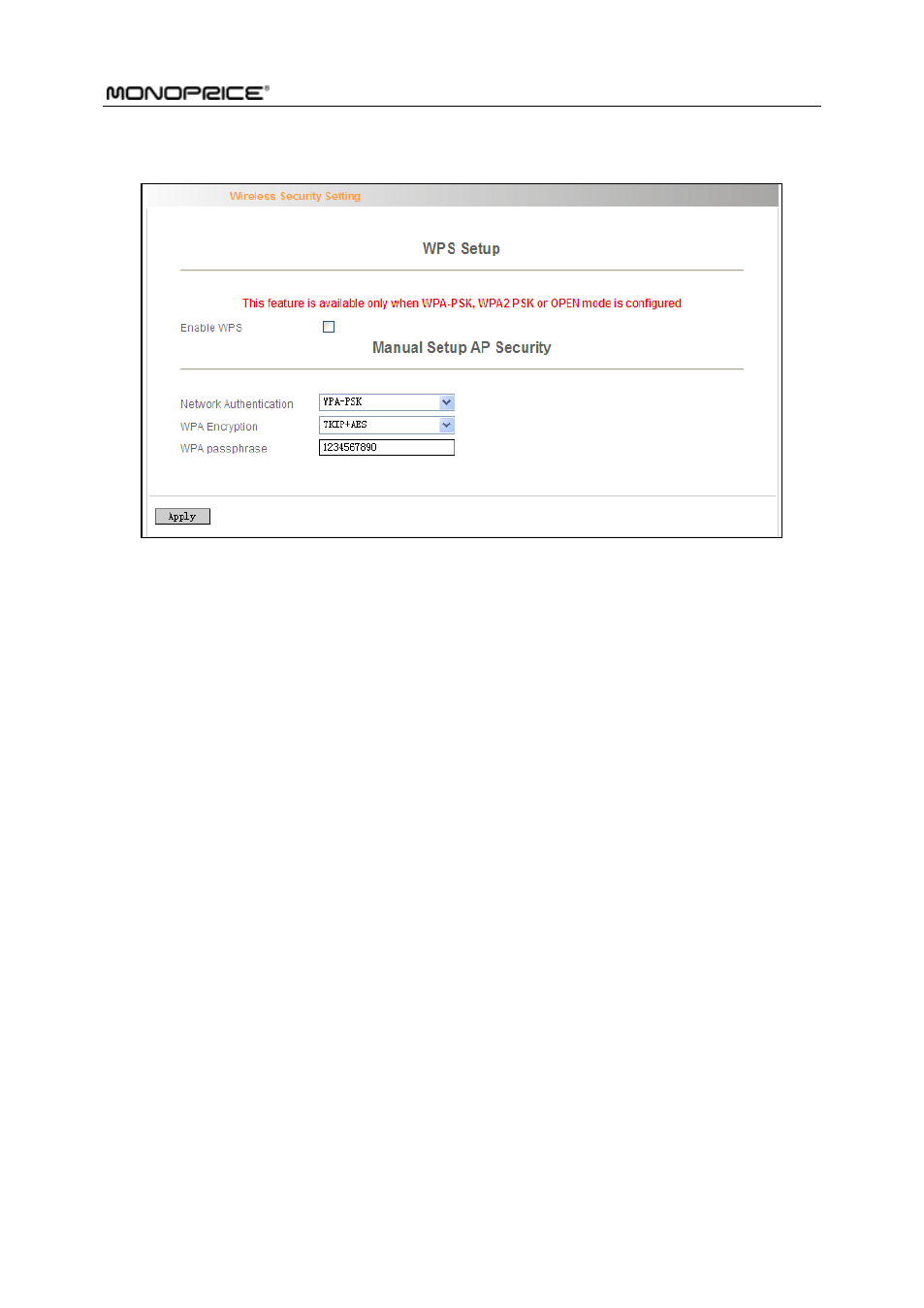

4.3.2 Security Setting

WPS Setup: Wi-Fi protected setting (WPS) can create encrypted
connection between wireless network clients and the router
simply and quickly. Without selecting an encryption mode and
configuring a key, you only need to enter the correct PIN code or
select the “Push Button” (press the WPS button on the router’s
back panel) to easily configure WPS. Instructions for operation
are described below:

Push Button: Press the WPS button for about 1 second and the
WPS LED will keep flashing for about 2 minutes, which indicates
the function is enabled. During this time, wireless client can
enable WPS/PBC for authentication negotiation; if negotiation
succeeds, then the WPS LED remains “always on”. A wireless
client is successfully connected.

PIN: To use PIN, you must know wireless client’s PIN code and
