ADSL2/2+ Router
- 112 -
4.4 Diagnostics
Through the Diagnostics function, you can check connection status of
the router’s interfaces. When a connection is successfully established,

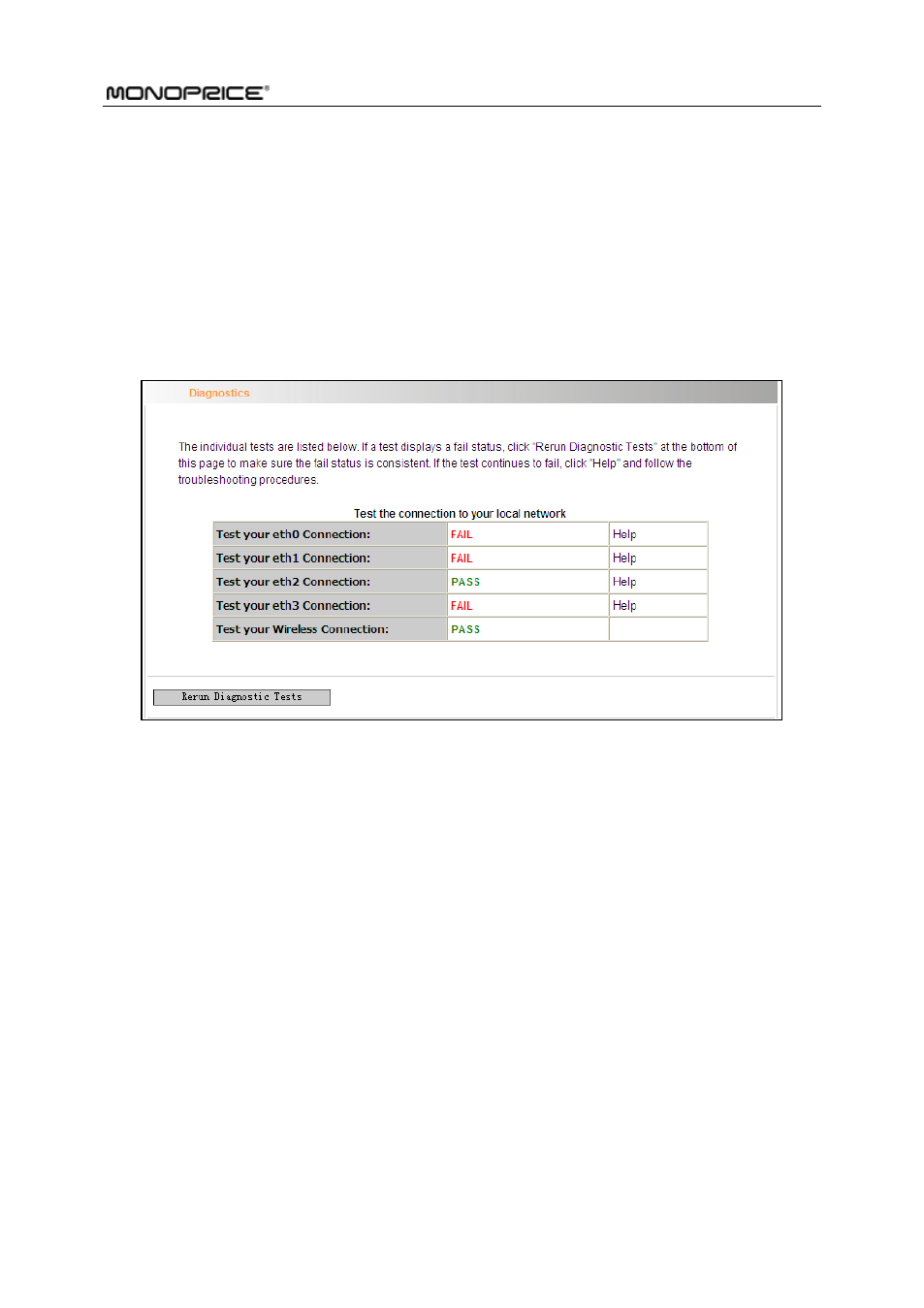

its status displays a “PASS”, otherwise it displays a “FAIL” click ". To
enter the page below, click the “Diagnostics” tab on the left navigation
menu column:
If you are not clear about the test result, please click “Help” for more
details.
