Console Management
Page 5-28
Configure Spanning Tree Parameters
This menu allows you to view the IntraSwitch’s Spanning Tree
parameters. It also allows you to enable or disable Spanning
Tree on all of the switch’s ports or on a single port.
By default, the IntraSwitch is shipped with Spanning Tree
enabled on all ports.
▲
Important: You should be familiar with the
IEEE 802.1d specification before attempting to
change these Spanning Tree parameters.
To access the Spanning Tree Parameter Menu, type
s from the
Configuration Menu. The following menu appears:

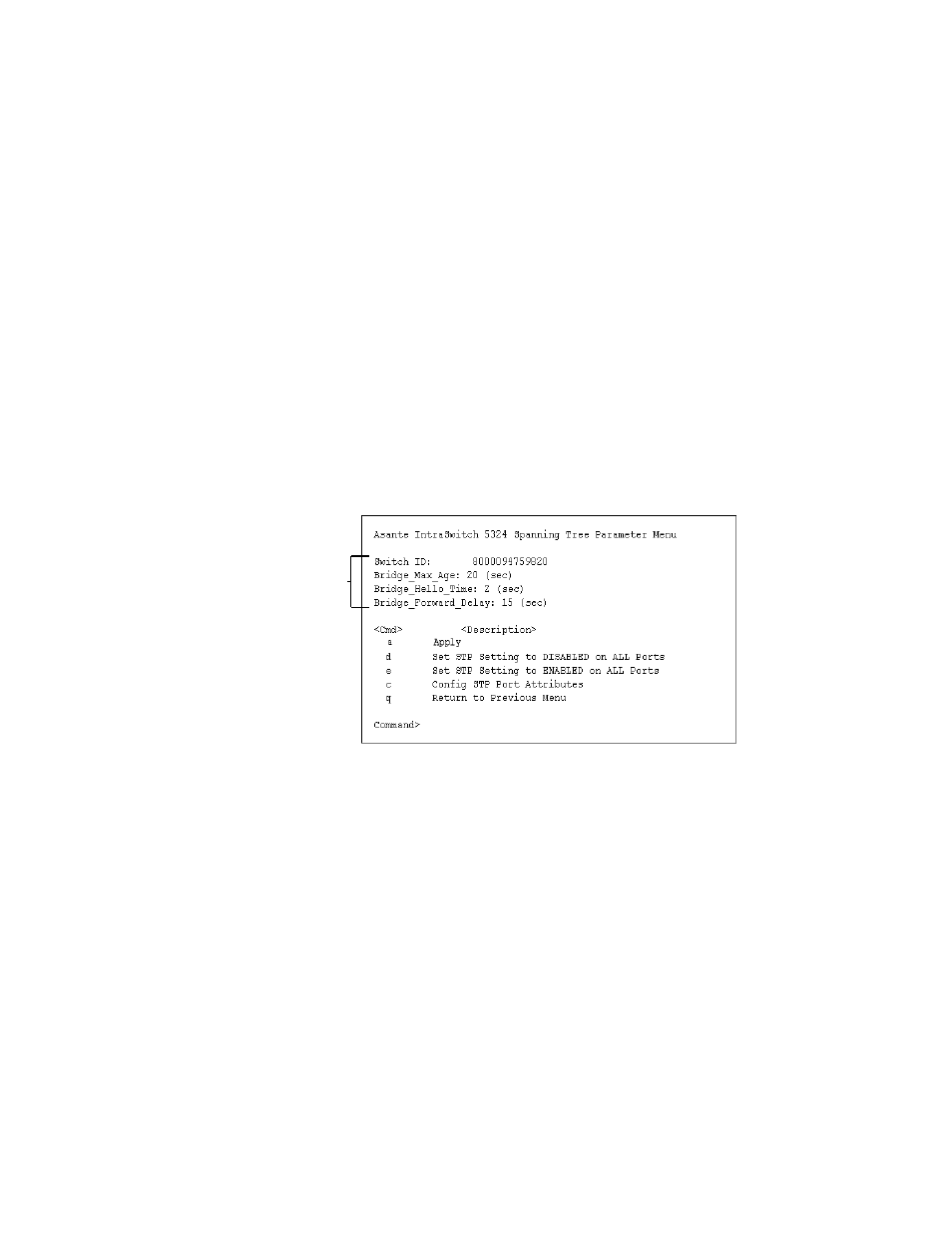

Figure 5-10
Spanning Tree Parameters Menu
Current Settings
Table 5-9 explains each setting on the Spanning Tree
Parameter Menu.
For information on using the menu, see:
❏ “Enabling/Disabling Spanning Tree on ALL
Ports” — page 5-30
❏ “Enabling/Disabling Spanning Tree on a
Port” — page 5-30
Current Settings;
these values
cannot be
changed
