Free-Standing
Installation
The IntraSwitch has four rubber feet that can be applied to the
bottom of the chassis to enable desktop/free-standing
installation of the unit.
For desktop/free-standing installation:
1 Turn the switch over so that the bottom of the
chassis faces up.
2 Peel the protective backing off of each rubber
foot.
3 Position each rubber foot over the recessed
areas near the four corners of the switch.
4 Press each rubber foot into place. See
Figure 2-3.

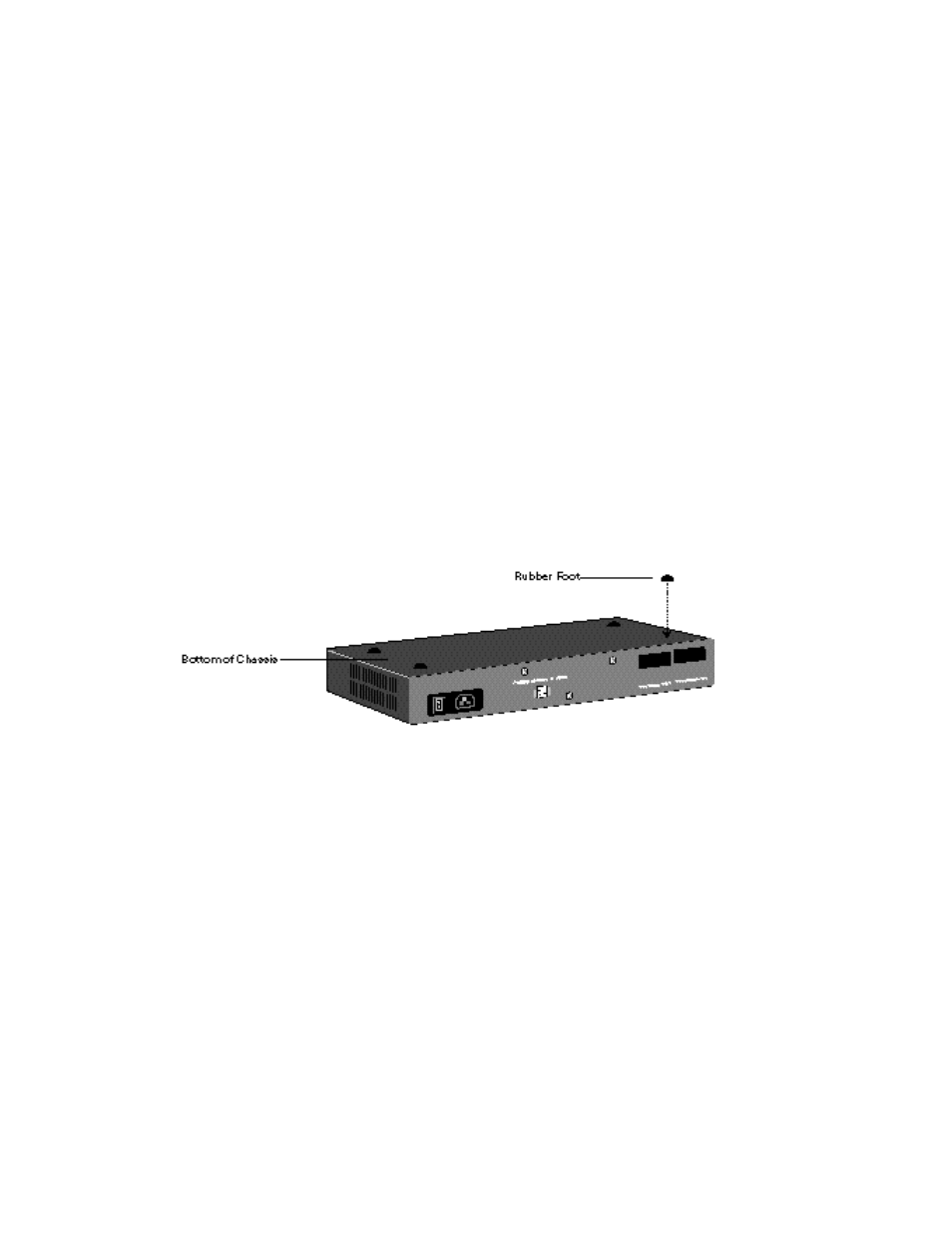

Figure 2-3 Applying rubber feet to bottom of IntraSwitch chassis
5 Place the IntraSwitch on a horizontal surface
with a minimum area of 17.1” x 14.5”.
The IntraSwitch is ready to be connected to the
network. See “Connecting to the Network” on
page 2-7.
