― ２５―

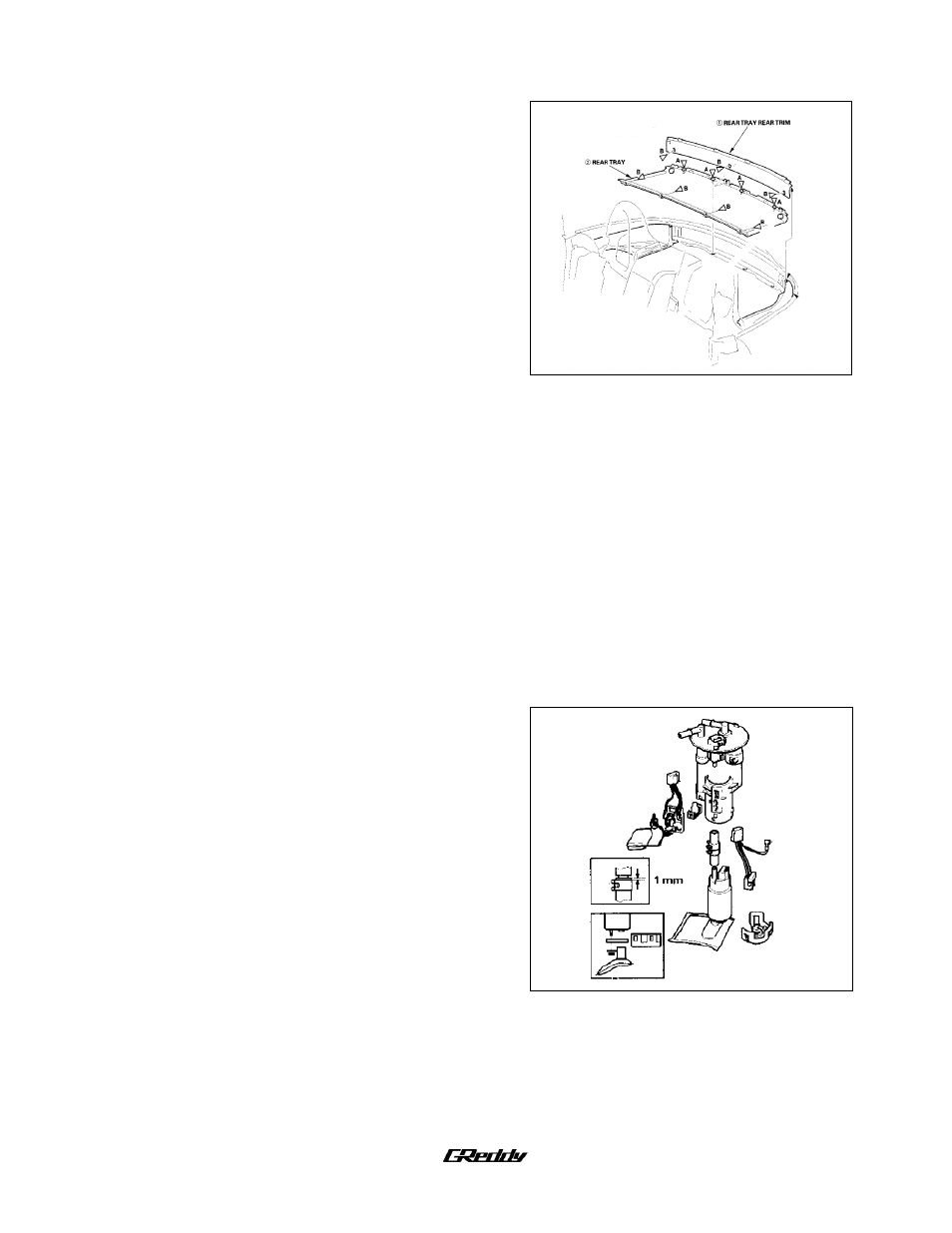

3-15 Walbro Fuel Pump Installation
(1)
Remove the factory spare tire from the trunk.
(2)
Remove the holding tray located behind the seats.
Remove the pushpins securing the tray. After
removing the pushpins, slide the tray out through
the trunk.
(3)
Remove the fuel pump cover secured by 3
screws.
(4)
Disconnect the fuel feed and return lines.
Be careful not to damage the connectors when
disconnecting the fuel lines.
(5)
Disconnect the electrical connector.
(6)
Remove the eight screws securing the fuel pump
assy. Carefully remove the fuel pump assy.
Use caution to prevent damage to the fuel level
sender.
(7)
Disconnect the electrical connector on the fuel
pump.
(8)
Disconnect the plastic retaining clip on the bottom
of the pump.
(9)
Use pliers to slide the spring clamp on the fuel
filter side of the hose. Remove the fuel pump
and hose from the fuel filter.
It is recommended to change the fuel filter if you
have not already.
(10)
Install the included fuel filter to the bottom of the
fuel pump with the small retaining clip.
(11)
Attach the included hose to the top of the fuel
pump and insert pump back into the fuel filter
Assy. The hose may need to be trimmed to fit.
Use the included hose bands to secure the fuel
hose to the pump and fuel filter Assy.
(12)
Secure the fuel pump to the case with the plastic
retaining clip removed in (8) and connect the
electrical connector to the fuel pump.
(13)
Re-install the fuel pump/filter and removed
components in reverse order.
(Parts Used: 13)
